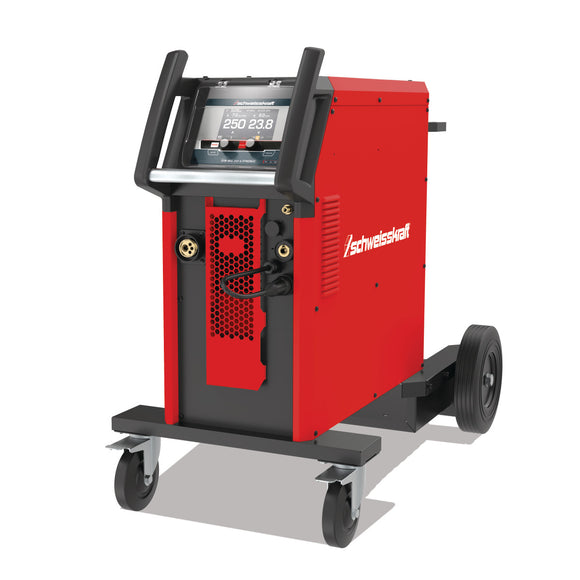

MIG/MAG Inverter welding device SYN-MIG 253-4 Synergic-1
MIG/MAG Inverter welding device SYN-MIG 253-4 Synergic-2

MIG/MAG Inverter welding device SYN-MIG 253-4 Synergic

€2.134,05 EUR (€1.735,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1071254 Barcode: 4036351351795

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
MIG/MAG Inverter welding device SYN-MIG 253-4 Synergic.
  • Infinitely variable
  • Synergy characteristics - welding result
  • Adjustable choke enables precise adjustment of the arc characteristics
  • Robust trolley with large storage space for gas cylinders and accessories facilitates the transport and organization of tools directly at the place of use
  • Can hold both 10 l cylinders and up to 50 l gas cylinders
  • State-of-the-art inverter technology ensures precise welding and a uniform arc with maximum efficiency
  • User-friendly LCD display enables precise setting of welding parameters
  • Overheating protection and voltage monitoring ensure safe working conditions
  • Suitable for use on generators
  • Processes: MIG/MAG, TIG (DC), electrodes
  • Sheet thicknesses: from 0. 8 mm steel and stainless steel (MAG), from 1. 0 mm for aluminum (MIG)
  • Base materials: Unalloyed and low-alloy materials (S235JR), high-alloy materials (stainless steel), aluminum alloy, cored wire
  • Typical applications: Locksmithery, mechanical engineering, assembly, automotive workshop, tinsmith, maintenance, repair


.
  • Adjustable choke 0 – 10
  • Current at 100% DC 40°C 195 A
  • Current at 60% DC 40°C 250 A
  • Duty cycle at Imax. 40°C 60 %
  • Efficiency 90.84 %
  • Explanation Open circuit voltage MMA / TIG / MIG
  • Frequency 50/60 Hz
  • Guest test function ✔
  • Height 850 mm
  • Input current 11.2 A
  • Length 1100 mm
  • Net weight 52,5 kg
  • Open circuit voltage 75 / 73 / 73 V
  • Overload indicator ✔
  • Power consumption MIG/MAG 11.2 kVA
  • Power consumption TIG DC 8.9 kVA
  • Power consumption electrode 12.5 kVA
  • Power consumption in idle mode 24 W
  • Power factor 0.67 cos phi
  • Process MIG/MAG ✔
  • Process MMA ✔
  • Required generator output >8 kVA
  • Setting range MIG/MAG 30 – 250 A
  • Setting range TIG DC 10 – 250 A
  • Setting range electrode 10 – 250 A
  • Spot welding ✔
  • Standard EN 60 974-1; -10
  • Supply voltage 400 V
  • Width 530 mm
  • Wire feed rolls/driven 2 Rollers
  • Wire feed speed 24 m/min
  • Wire feet unit 4 Rollers
  • weldable wires CuSi 1.0 mm
  • weldable wires aluminium from to 1.0 – 1.2 mm
  • weldable wires flux core wire from to 0.8 – 1.2 mm
  • weldable wires stainless steel from to 0.8 – 1.2 mm
  • weldable wires steel from to 0.6 – 1.2 mm
  • 25 mm² earth cable 3 m
  • Pressure reducer
  • Gas hose 4 m
  • MAG torch SMB 25 4 m
