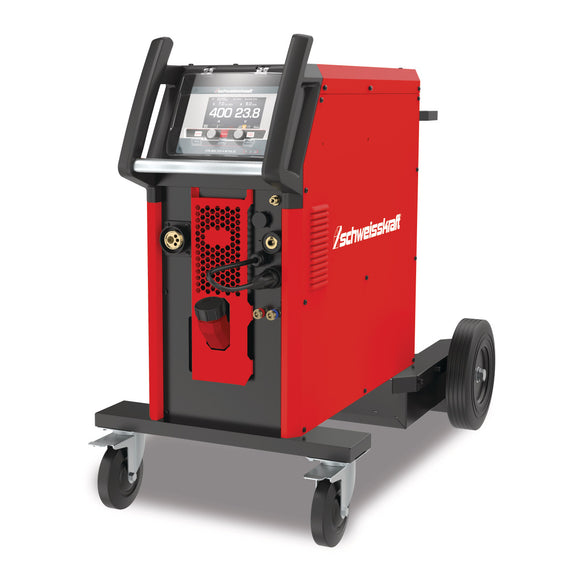

Stepless, synergic MIG/MAG welding machine SYN-MIG 353-4 W Pulse-1
Stepless, synergic MIG/MAG welding machine SYN-MIG 353-4 W Pulse-2

Stepless, synergic MIG/MAG welding machine SYN-MIG 353-4 W Pulse

€3.688,77 EUR (€2.999,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1072353 Barcode: 4036351357278

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Stepless, synergic MIG/MAG welding machine SYN-MIG 353-.
  • Innovative pulse technology enables low-spatter weld seams - up to 80% less rework and higher deposition rate at the same time
  • Double-pulse function enables TIG-like weld seams at MAG speed
  • High duty cycle of 60% at maximum power ensures longer welding times without overheating, ideal for large projects
  • State-of-the-art inverter technology in modular design ensures maximum reliability combined with maximum efficiency
  • Synergy curves for steel, stainless steel and aluminum - result
  • Adjustable choke enables precise adjustment of the arc characteristics
  • LCD display for simple and precise setting of welding parameters
  • Sophisticated cooling system with encapsulated air duct for efficient heat dissipation ensures stable welding performance even in the toughest applications
  • Suitable for use on the generator
  • Integrated water cooling for optimum temperature control
Note: Machine is supplied without accessories and coolant

.
  • Current at 100% DC 40°C 270 A
  • Current at 60% DC 40°C 350 A
  • Duty cycle at Imax. 40°C 60 %
  • Efficiency 89,02 %
  • Explanation Open circuit voltage MMA / WIG / MIG
  • Frequency 50/60 Hz
  • Height 850 mm
  • Input current 26.5 A
  • Length 1100 mm
  • Net weight 66,5 kg
  • Open circuit voltage 73 / 73 / 76 V
  • Overload indicator ✔
  • Power consumption MIG/MAG 12.4 kVA
  • Power consumption TIG DC 9.8 kVA
  • Power consumption electrode 13.4 kVA
  • Power factor 0.726 cos phi
  • Process MIG/MAG ✔
  • Process MMA ✔
  • Required generator output 13 kVA
  • Setting range MIG soldering 10 – 350 A
  • Setting range MIG/MAG 10 – 350 A
  • Setting range TIG DC 10 – 350 A
  • Setting range electrode 20 – 350 A
  • Supply voltage 400 V
  • Width 530 mm
  • Wire feed speed from to 1.5 – 24 m/min
  • Wire feet unit 4 rolls
  • weldable wires CuSi from to 1.0 mm
  • weldable wires aluminium from to 1.0 - 1.6 mm
  • weldable wires flux core wire from to 0.9 – 1.6 mm
  • weldable wires stainless steel from to 0.8 – 1.6 mm
  • weldable wires steel from to 0.8 – 1.6 mm
  • MIG torch MB 401 4 m
  • 3 m earth cable 35 mm² with earth clamp 300 A
  • Pressure reducer
  • 4 m gas hose
