Electrode inverter CRAFT-STICK 161

€362,85 EUR (€295,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1073161 Barcode: 4036351250098

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

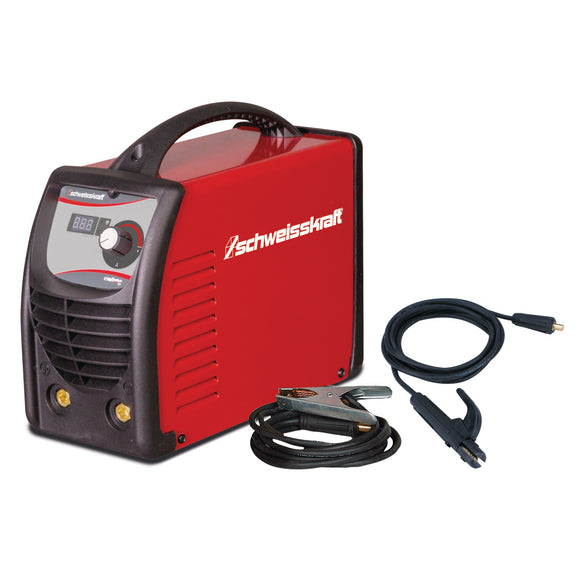

Electrode inverter CRAFT-STICK 161.

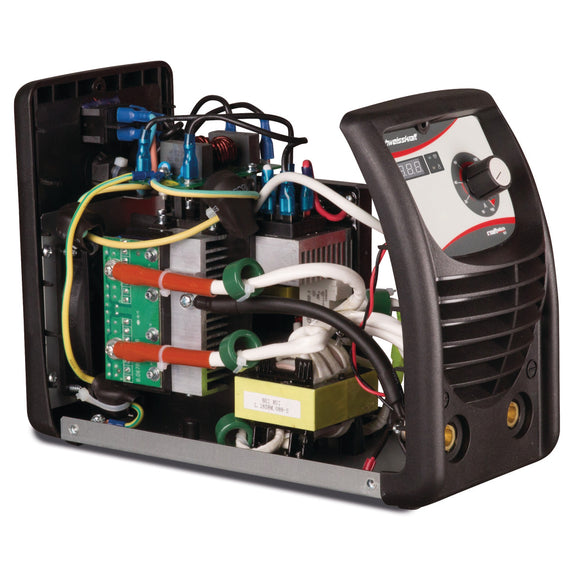

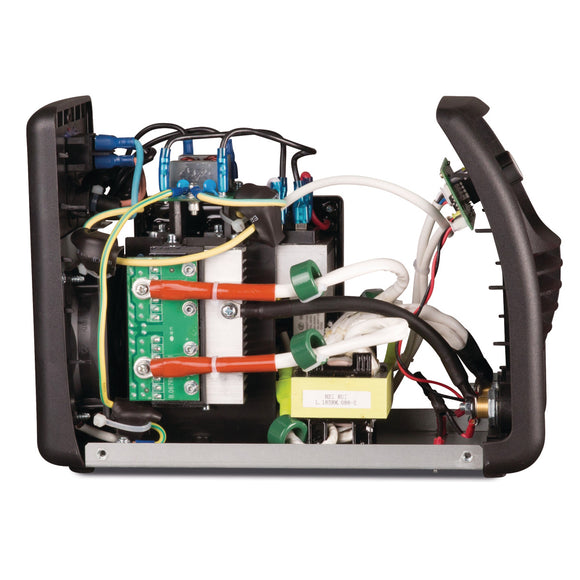

  • All devices are built in modern inverter technology
  • Ideally suited for assembly work (on the ladder, on the scaffolding. )with protection class IP 23, generally also for outdoor work
  • Suitable for use on the generator eg in operating workshops, harbors, chemical plants, schools, metal construction, on construction sites, ships or for farmers
  • Sealed circuit protects against moisture, salt spray and corrosion. This also suitable offshore
  • Hot Start:.
  • Cable length 2.2 m
  • Current at 100% DC 40°C electrode 90 A
  • Duty cycle at Imax. 40°C electrode 40 %
  • Frequency 50/60 Hz
  • Height 255 mm
  • Input current 36.5 A
  • Length 320 mm
  • Net weight 4.9 kg
  • Open circuit voltage 75.3 V
  • Power consumption electrode 5.2 kVA
  • Required generator output >8.7 kVA
  • Setting range electrode 10 – 160 A
  • Supply voltage 230 V
  • Total output 8.7 kVA
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 135 mm
  • 3 m welding cable 16 mm² with electrode holder
  • 3 m ground cable 16 mm² with ground clamp 200 A
