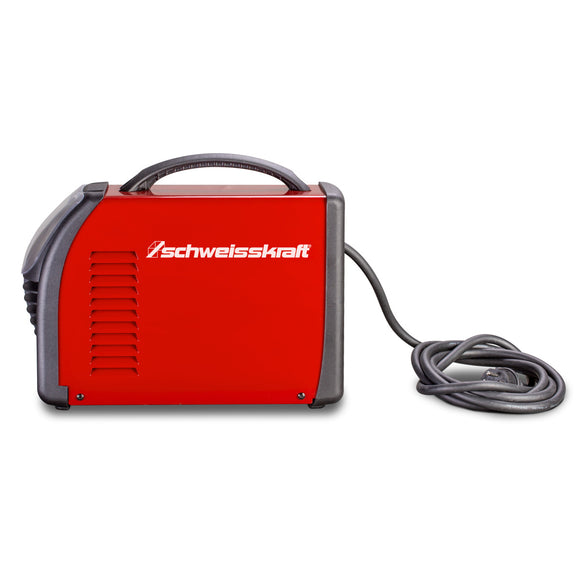

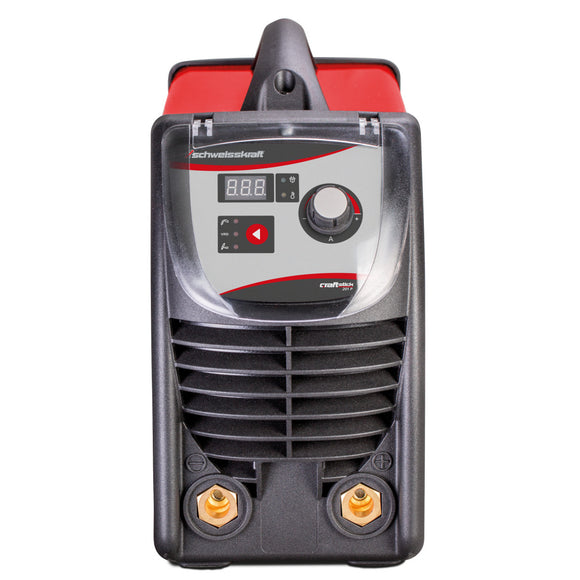

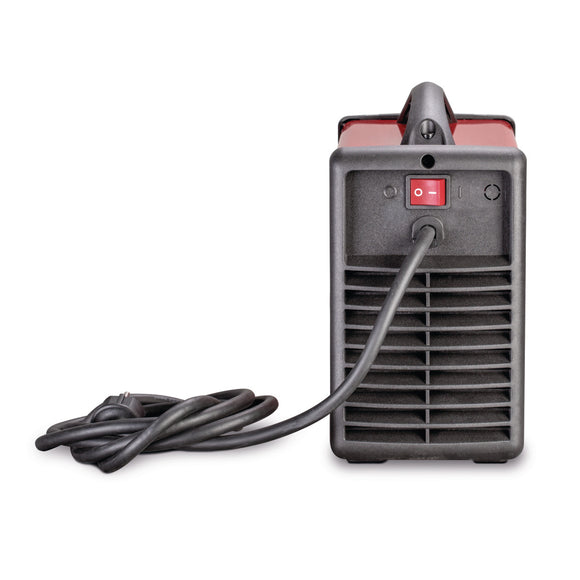

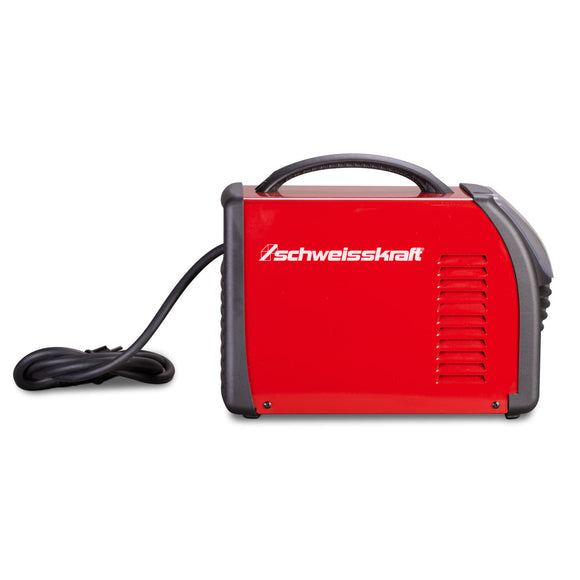

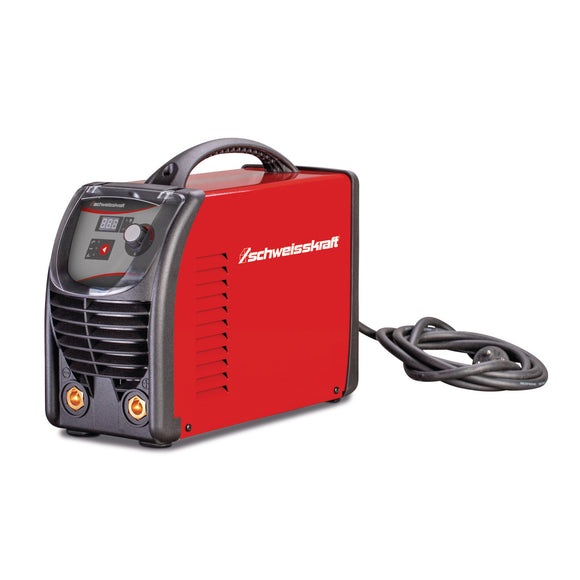

Electrode inverter CRAFT-STICK 201P

€522,75 EUR (€425,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1073201 Barcode: 4036351250111

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Electrode inverter CRAFT-STICK 201P.
  • All units are constructed using modern inverter technology
  • Ideal for installation work (on the ladder, on the scaffolding. )with protection class IP 21S, generally also for working outdoors
  • Suitable for use on the generator, for example in company workshops, schools, metal construction, on construction sites or for farmers

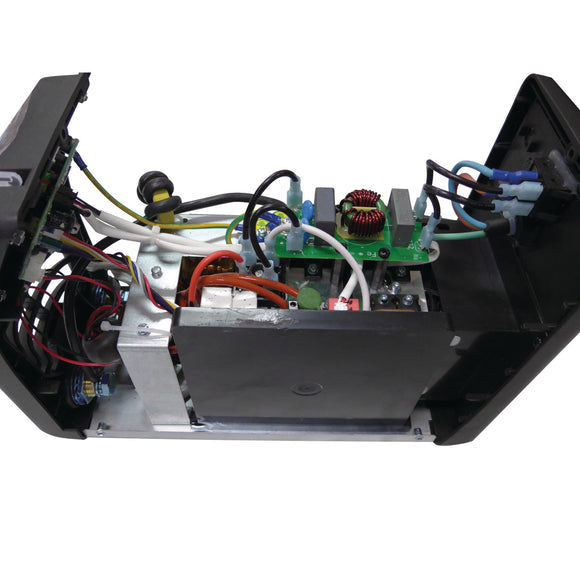

  • Sealed board protects against moisture, salt spray and corrosion.
  • Consistent melt flow is achieved by constant welding current
  • At least 30% duty cycle for all devices
  • Sealed circuit board with protection against moisture, salt spray, corrosion, therefore also offshore suitable

All CRAFT STICKs have the following features by default:

  • Hot Start.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 130 A
  • Current at 100% DC 40°C electrode 130 A
  • Duty cycle at Imax. 40°C TIG DC 40 %
  • Duty cycle at Imax. 40°C electrode 40 %
  • Efficiency 84 %
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG 19.5 A
  • Input current electrode 28.8 A
  • Length 365 mm
  • Net weight 6,7 kg
  • Open circuit voltage MMA 68.7/ TIG 65.3 V
  • Power consumption TIG DC 4.5 kVA
  • Power consumption electrode 6.6 kVA
  • Power consumption in idle mode < 50 W
  • Required generator output >6.6 kVA
  • Setting range TIG DC 10 - 200 A
  • Setting range electrode 10 - 200 A
  • Supply voltage 230 V
  • Total output TIG 4,5 kVA
  • Total output electrode 6,6 kVA
  • Weldable electrodes 1,6 - 4,0 mm
  • Width 150 mm
  • 3m welding cable 16mm² with electrode holder
  • 3m earth cable 16mm² with earth terminal 200 A

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
