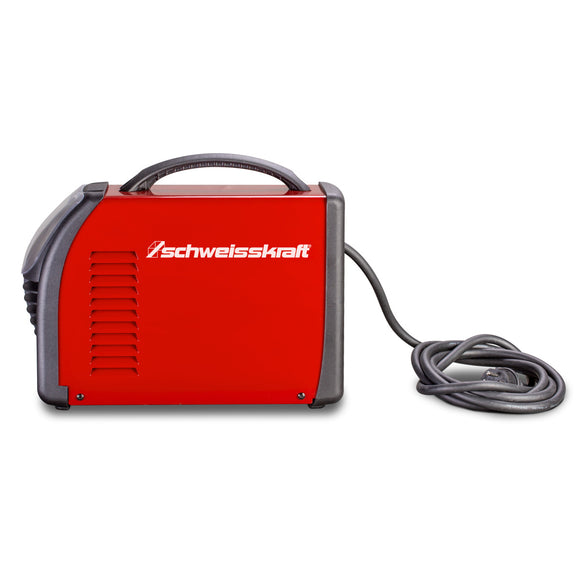

Electrode inverter CRAFT-STICK 201P Special offer set special

€584,13 EUR (€474,90 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1073201SET Barcode: 4036351272946

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

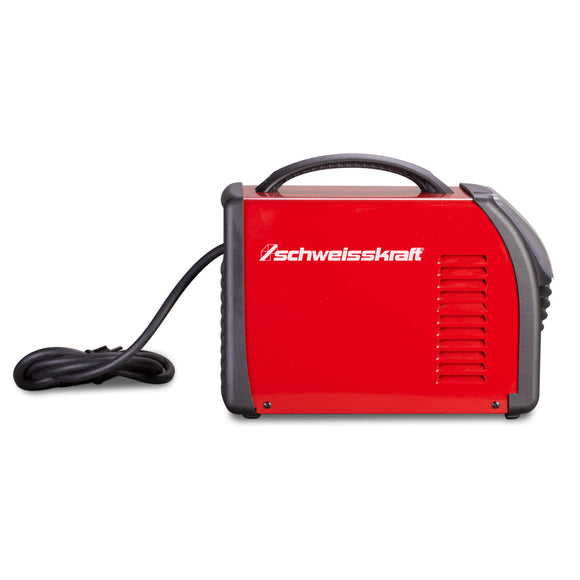

Electrode inverter CRAFT-STICK 201P Special offer set special.
  • All units are constructed using modern inverter technology
  • Ideal for installation work (on the ladder, on the scaffolding. )with protection class IP 21S, generally also for working outdoors
  • Suitable for use on the generator, for example in company workshops, schools, metal construction, on construction sites or for farmers

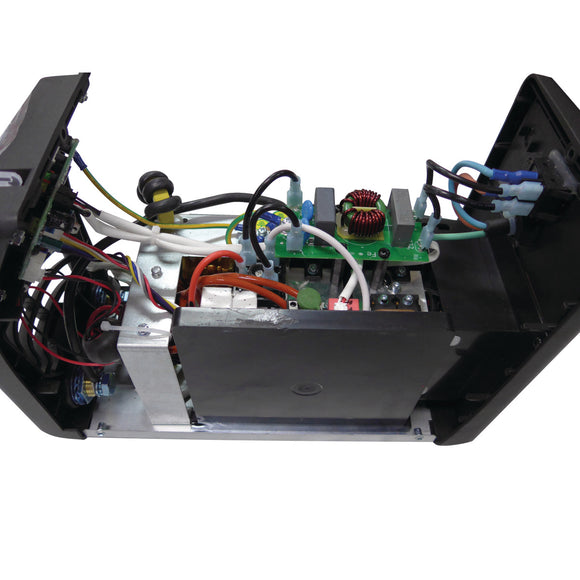

  • Sealed board protects against moisture, salt spray and corrosion.
  • Consistent melt flow is achieved by constant welding current
  • At least 30% duty cycle for all devices
  • Sealed circuit board with protection against moisture, salt spray, corrosion, therefore also offshore suitable

All CRAFT STICKs have the following features by default:

  • Hot Start.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 130 A
  • Current at 100% DC 40°C electrode 130 A
  • Duty cycle at Imax. 40°C TIG DC 40 %
  • Duty cycle at Imax. 40°C electrode 40 %
  • Efficiency 84 %
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG 19.5 A
  • Input current electrode 28.8 A
  • Length 365 mm
  • Net weight 6,7 kg
  • Open circuit voltage MMA 68.7/ TIG 65.3 V
  • Power consumption TIG DC 4.5 kVA
  • Power consumption electrode 6.6 kVA
  • Power consumption in idle mode < 50 W
  • Required generator output >6.6 kVA
  • Setting range TIG DC 10 - 200 A
  • Setting range electrode 10 - 200 A
  • Supply voltage 230 V
  • Total output 19.5 A
  • Total output TIG 4,5 kVA
  • Total output electrode 6,6 kVA
  • Weldable electrodes 1,6 - 4,0 mm
  • Width 150 mm

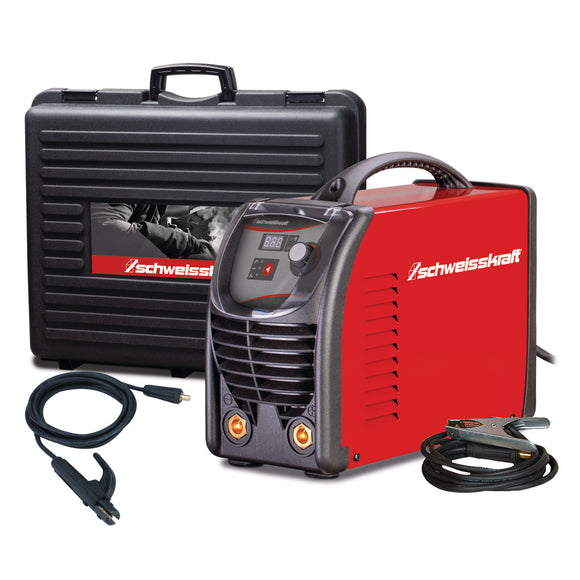

  • 3m welding cable 16mm² with electrode holder
  • 3m earth cable 16mm² with earth terminal 200 A
  • Transport case
