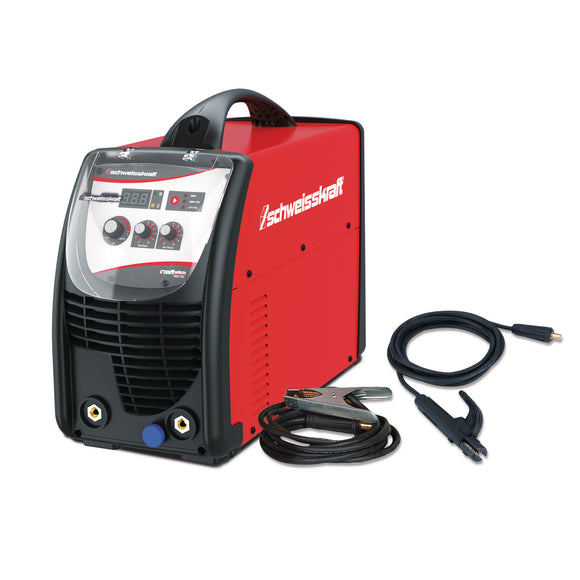

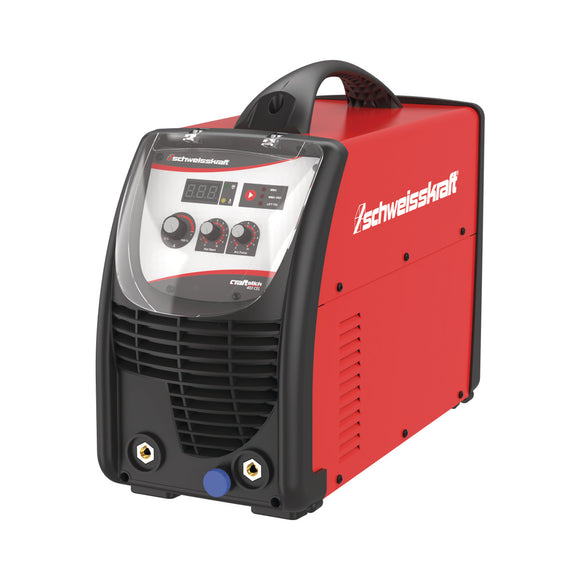

Electrode inverter CRAFT-STICK 403 CEL

• Current at 100% DC 40°C TIG DC 310 A
• Current at 100% DC 40°C electrode 310 A
• Duty cycle at Imax. 40°C TIG DC 60 %
• Duty cycle at Imax. 40°C electrode 60 %
• Efficiency 89 %
• Frequency 50/60 Hz
• Height 440 mm
• Input current TIG 25.1 A
• Input current electrode 32.3 A
• Length 560 mm
• Net weight 21.7 kg
• Power consumption TIG DC 12.4 kVA
• Power consumption electrode 16.4 kVA
• Power consumption in idle mode < 50 W
• Required generator output >22.4 kVA
• Setting range TIG DC 20 – 400 A
• Setting range electrode 20 – 400 A
• Supply voltage 400 V
• Total output TIG 17.3 kVA
• Total output electrode 22.4 kVA
• Weldable electrodes 1,6 – 8,0 mm
• Width 240 mm

• Welding cable 3 m 50 mm² with electrode holder 500 A
• Ground cable 3 m 50 mm² with ground terminal 500 A
