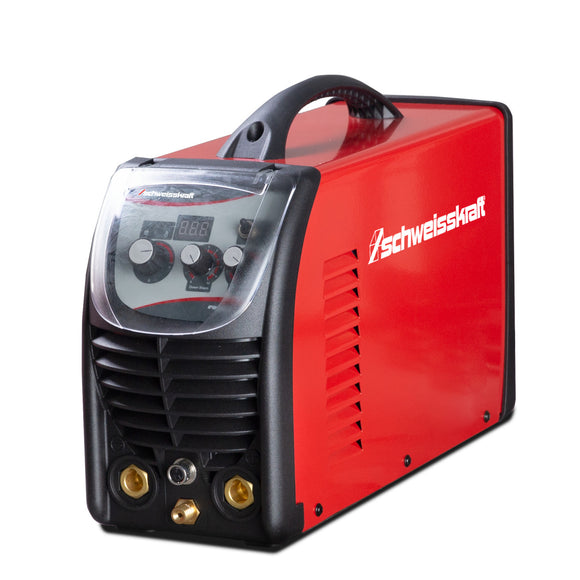

TIG Inverter EASY-TIG 181 DC.
  • All devices are built in modern inverter technology
  • Ideally suited for assembly work (on the ladder, on the scaffolding. )with protection class IP 21 S, generally also for outdoor work

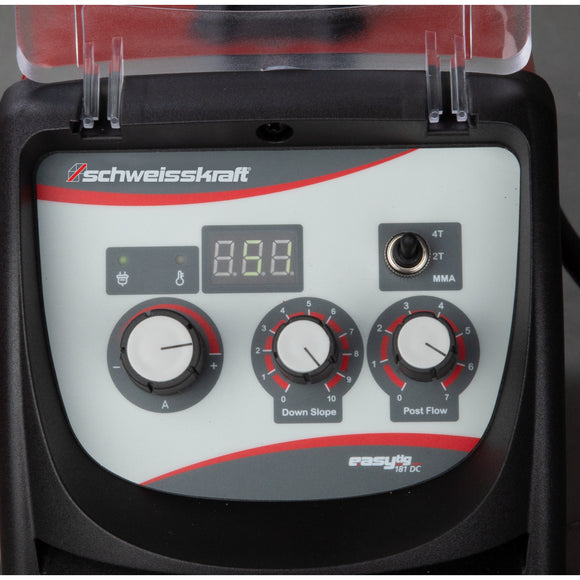

  • Accurate setting of welding parameters via digital display
  • Universally applicable for welding of all common electrode types
  • Suitable for use on the generator eg in company workshops, schools, metal construction, on construction sites or for farmers
  • TIG pulses enable welding with reduced heat input
  • HF high-frequency ignition ignites during TIG welding without touching the workpiece
  • The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
  • Two-year Schweißkraft warranty


.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 100 A
  • Current at ED 100% 40°C Electrode 100 A
  • Current consumption electrode DC 42.6 A
  • Duty cycle at Imax. 40°C TIG DC 40 %
  • Duty cycle at max. current 40°C Electrode 40 %
  • Efficiency 80 %
  • Electrode adjustment range 10 – 180 A
  • Frequency 50/60 Hz
  • Height 280 mm
  • Input current TIG DC 28.8 A
  • Length 430 mm
  • Negative mains voltage tolerance 10 %
  • Net weight 7.3 kg
  • Open circuit voltage MMA 75.5 / TIG 92.6 V
  • Positive mains voltage tolerance 10 %
  • Power consumption TIG 3.9 kVA
  • Power consumption electrode 5.9 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0,6 cos phi
  • Required generator output >9.8 kVA
  • Setting range TIG DC 10 – 180 A
  • Supply voltage 230±10% V
  • Weldable electrodes 1.6 – 4.0 mm
  • Width 150 mm
  • 3 m welding cable 16 mm² with electrode holder 300 A
  • 3 m ground cable 16 mm² with ground terminal 300 A
  • Torch ECR17 4 m
  • 4 m gas hose including quick connector
