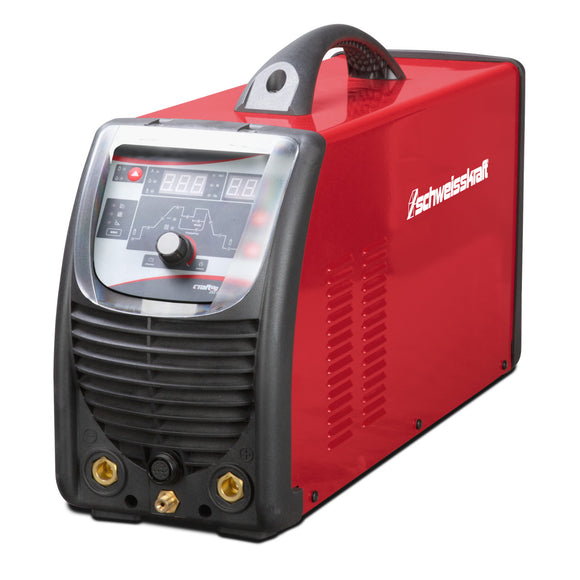

TIG Inverter CRAFT-TIG 253 DC PULSE

€1.068,87 EUR (€869,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 1074253 Barcode: 4036351250159

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
TIG Inverter CRAFT-TIG.
  • Built with modern inverter technology
  • Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
  • Universally applicable for welding of all common electrode types
  • TIG pulsing enables welding with reduced heat input
  • HF high frequency ignition ignites during TIG welding without touching the workpiece
  • Nine programs can be stored
  • Quietly running fans ensure good heat dissipation and high duty cycle
  • Time controlled fan with stand-by mode

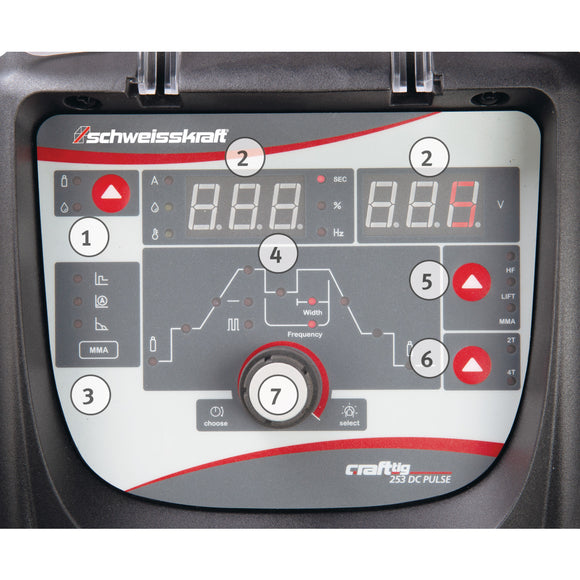

  • Precise setting and display of welding parameters via LC display
  • Suitable for use on the generator, for example in workshops, schools, metal construction, on building sites or for farmers
  • Adjustable welding curve
  • MMA mode with hot-start and arc-force control
  • Water cooling unit available as accessory


.
  • Cable length 2,2 m
  • Current at 100% DC 40°C TIG DC 195 A
  • Current at ED 100% 40°C Electrode 195 A
  • Current consumption electrode DC 18,6 A
  • Duty cycle at Imax. 40°C TIG DC 60 %
  • Duty cycle at max. current 40°C Electrode 60 %
  • Efficiency 87 %
  • Electrode adjustment range 5 - 250 A
  • Frequency 50/60 Hz
  • Height 350 mm
  • Input current TIG DC 13,5 A
  • Length 480 mm
  • Negative mains voltage tolerance 10 %
  • Net weight 15,1 kg
  • Open circuit voltage MMA 70.5 / TIG 60.5 V
  • Positive mains voltage tolerance 10 %
  • Power consumption TIG 5 kVA
  • Power consumption electrode 7,1 kVA
  • Power consumption in idle mode < 50 W
  • Power factor 0,67 cos phi
  • Process TIG pulsing ✔
  • Pulse rate 0.5 - 200 Hz
  • Required generator output >10.6 kVA
  • Setting range TIG DC 5 - 250 A
  • Sheet thicknesses 0.5 – 12 mm
  • Supply voltage 400±10% V
  • Torch cooling gas / water
  • Total output 10.6/7.7 kVA
  • Weldable electrodes 1,6 – 5.0 mm
  • Width 190 mm
  • 3 m ground cable 25 mm² with ground clamp
  • 4 m gas hose with quick connector
  • Hose clamp
