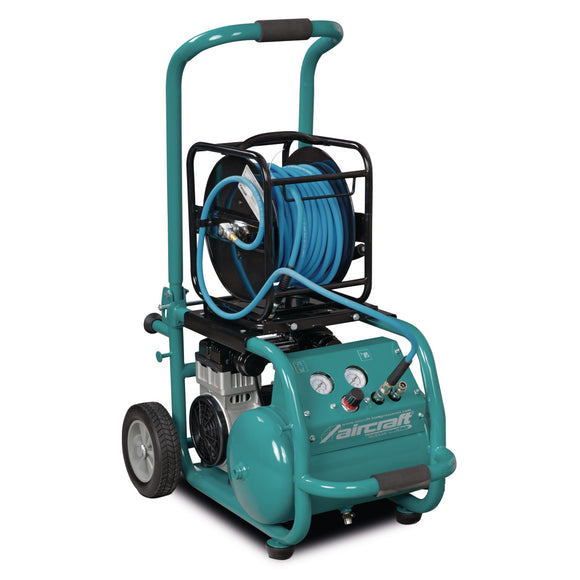

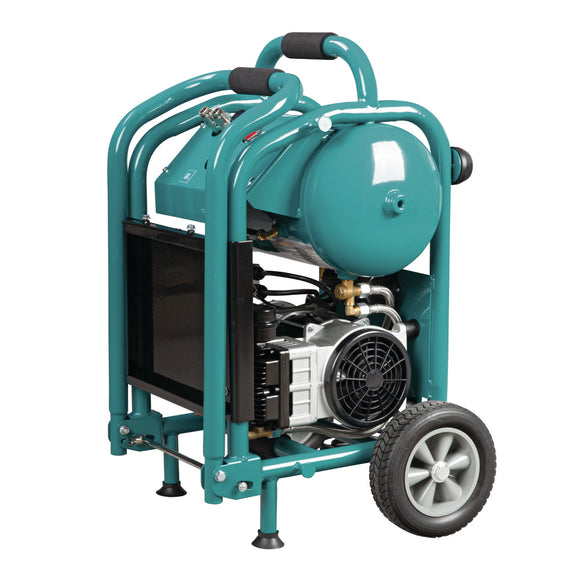

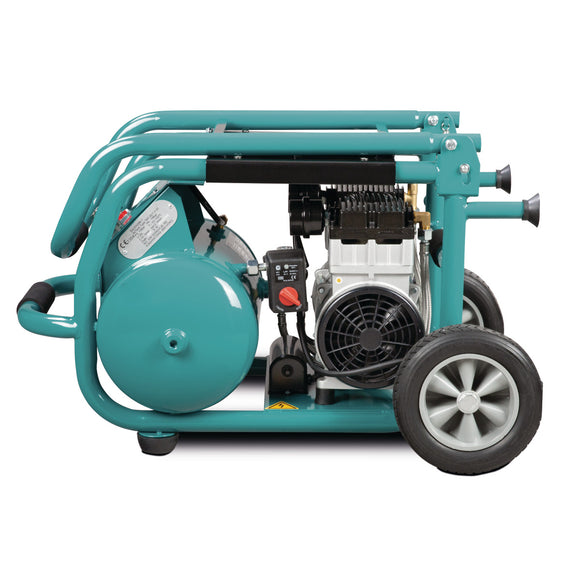

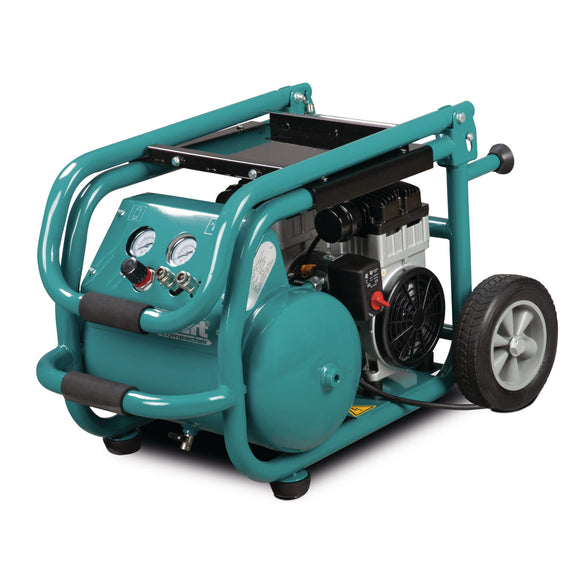

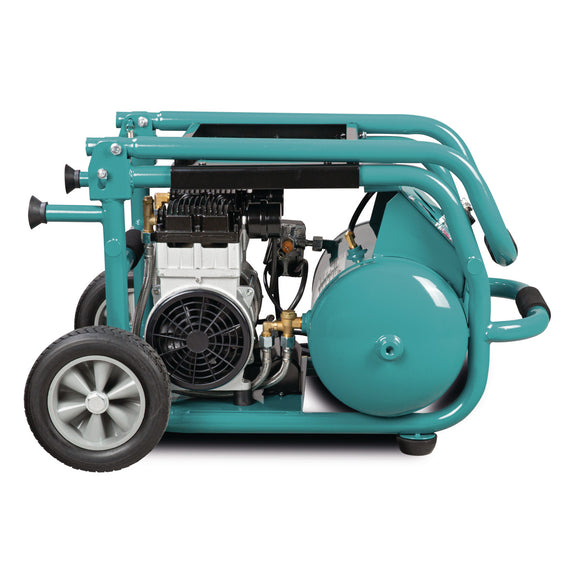

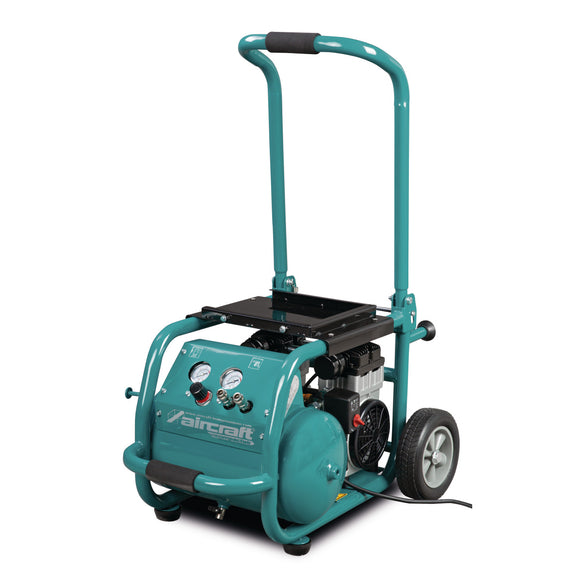

Piston compressor COMPACT-AIR 240/20 OF E

€761,37 EUR (€619,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005490 Barcode: 4036351260752

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Piston compressor COMPACT-AIR 240/.
  • Versatile use
  • Also ideally suited in the demanding assembly and craftsman sector

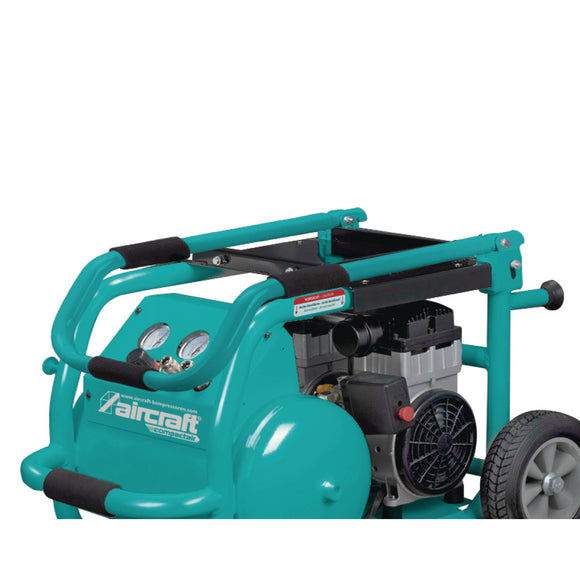

  • Switches and fittings are very well protected by the frame

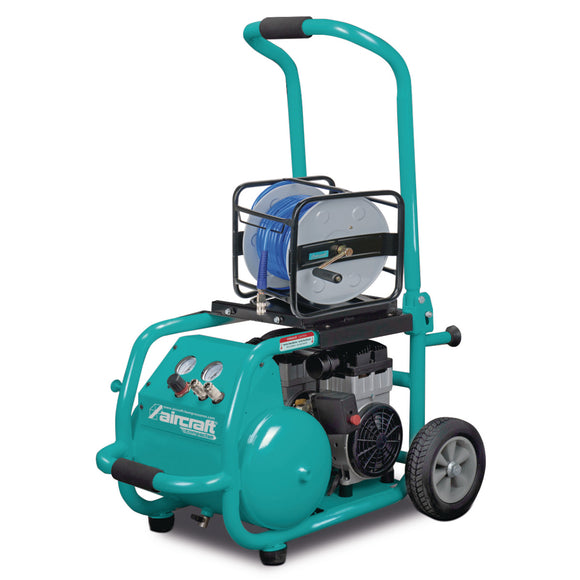

  • Convenient reel holder integrated in the frame
  • Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
  • Air sampling over two one-hand quick couplings
  • Pressure regulator for stepless adjustment of the desired working pressure

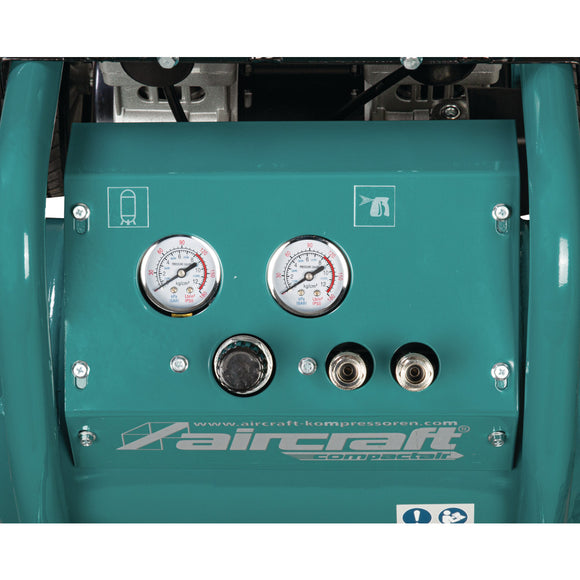

  • Based on a pressure gauge for display of the container and work pressure
  • Electric motor equipped with motor protection switch
  • Sturdy wheels with solid rubber tires and wide wheel base for comfortable transport also on uneven surfaces and stable stand
  • Vibration damping rubber feet
  • Hand grip rubberized slipping during transport and space saving foldable
  • Additional handle for comfortable carrying of the compressor
  • Compressed air tank powder coated


.
  • Air outlet 1/4 "
  • Automatic pressure switch ✔
  • Compressor speed 1400 min¯¹
  • Connection cable 2.8 m
  • Drive motor power 1.1 kW
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 140 l/min
  • Frequency 50 Hz
  • Height 475 mm
  • Length 540 mm
  • Max. height 1040 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 70 %
  • Motor output power 1.4 kW
  • Motor power (input power) 1.5 kW
  • Net weight 44.3 kg
  • Number of compressor stages 1

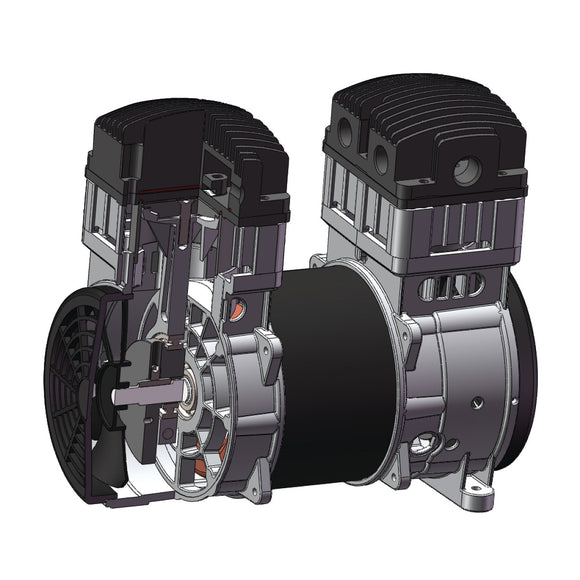

  • Number of cylinders 2
  • Pressure vessel capacity 20 l
  • Sound power level 84 dB(A)
  • Sound pressure level 72 dB(A)
  • Suction capacity 240 l/min
  • Supply voltage 230 V
  • Width 790 mm
