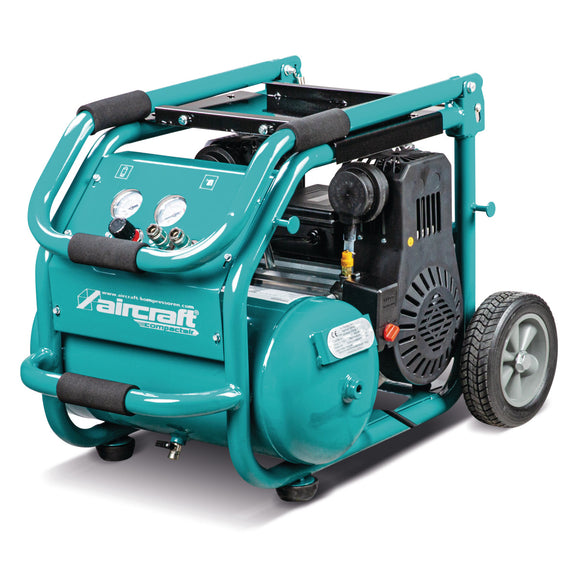

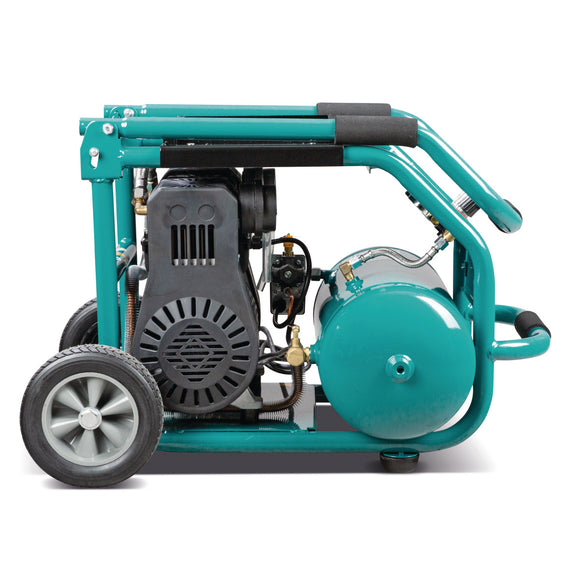

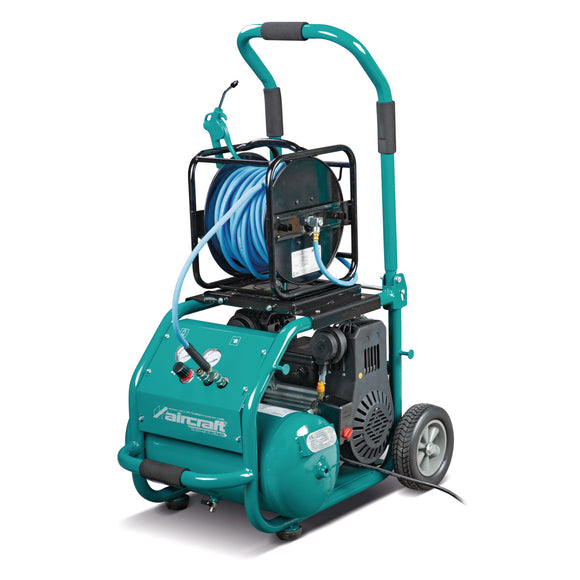

Piston compressor COMPACT-AIR 320/24 OF E

€1.014,75 EUR (€825,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005495 Barcode: 4036351275459

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Piston compressor COMPACT-AIR 320/.
  • Versatile use
  • Also ideally suited in the demanding assembly and craftsman sector
  • Switches and fittings are very well protected by the frame

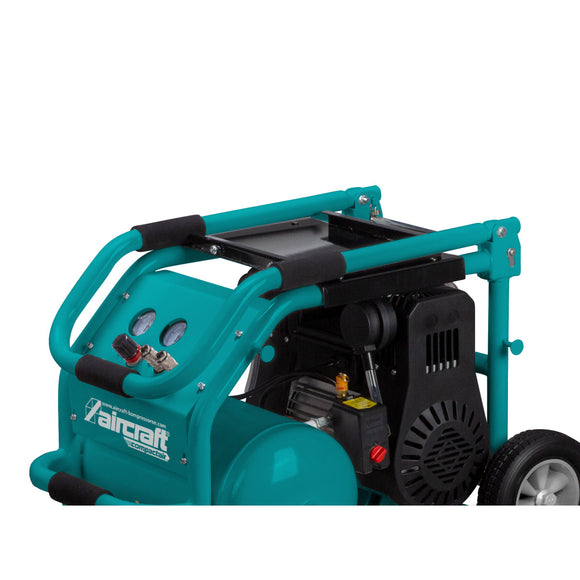

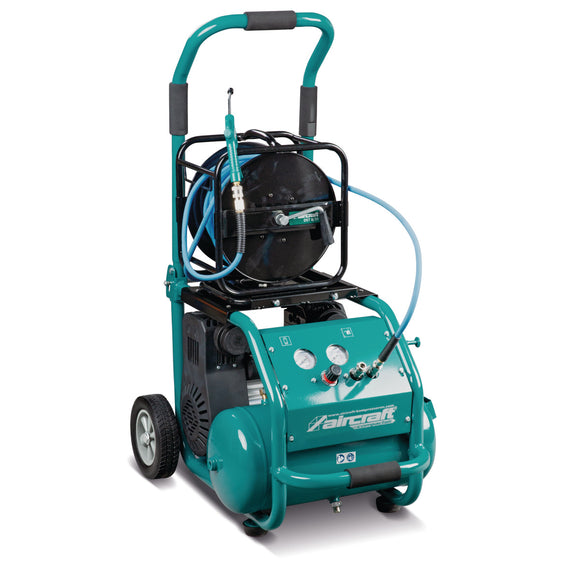

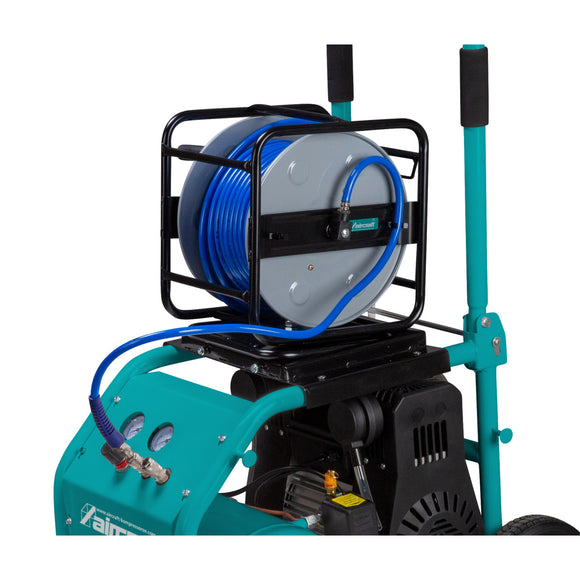

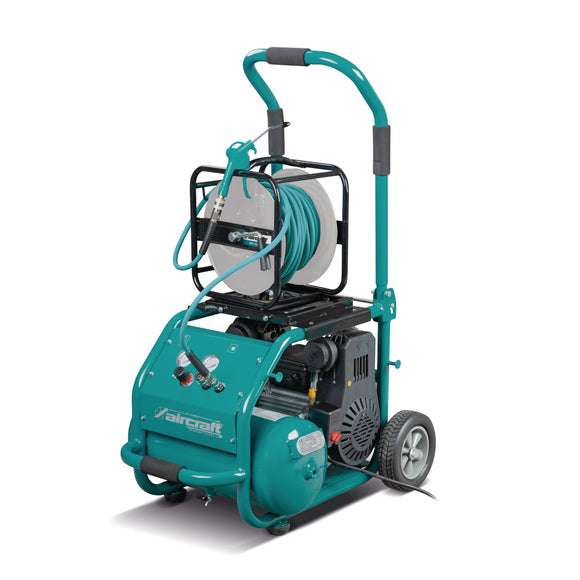

  • Convenient reel holder integrated in the frame
  • Oil-free piston compressor, thus no oil change necessary and no oil in the condensate

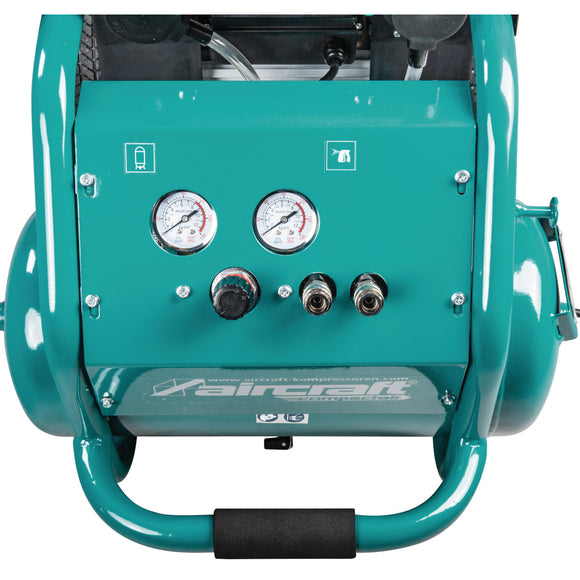

  • Air sampling over two one-hand quick couplings
  • Pressure regulator for stepless adjustment of the desired working pressure
  • Based on a pressure gauge for display of the container and work pressure
  • Electric motor equipped with motor protection switch
  • Sturdy wheels with solid rubber tires and wide wheel base for comfortable transport also on uneven surfaces and stable stand
  • Vibration damping rubber feet

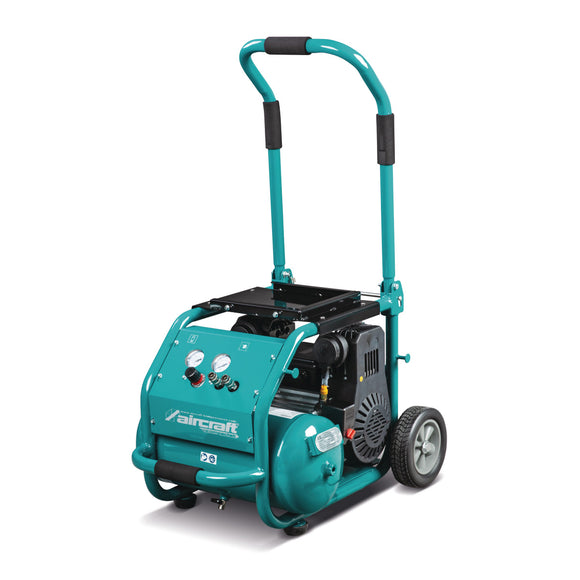

  • Hand grip rubberized slipping during transport and space saving foldable
  • Additional handle for comfortable carrying of the compressor
  • Compressed air tank powder coated


.
  • Air outlet 1/4 "
  • Connection cable 2.8 m
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 230 l/min
  • Frequency 50 Hz
  • Height 535 mm
  • Length 535 mm
  • Max. height 1140 mm
  • Maximum pressure 10 bar
  • Motor output power 1.6 kW
  • Motor power (input power) 2.2 kW
  • Net weight 54 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Pressure vessel capacity 24 l
  • Sound power level 84 dB(A)
  • Sound pressure level 72 dB(A)
  • Suction capacity 320 l/min
  • Supply voltage 230 V
  • Width 785 mm
