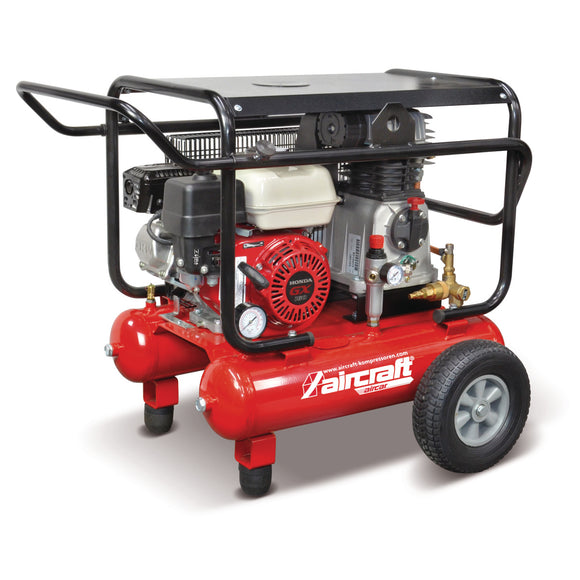

Mobile piston compressor with petrol engine AIRCAR-BAU 500/20 B PRO

• With 1-cylinder / 4-stroke Honda engine for off-grid operation
• Due to its independence from the power grid, it is particularly suitable for gardening and landscaping, mobile tire service and breakdown services as well as agriculture and forestry
• With idling and speed control, thereby adapting to the respective load conditions
• The high-performance gray cast iron unit and the low speed warranty maximum smoothness and a long service life.
• The large fan wheel and a cooling air baffle ensure optimum cooling of the compressor.
• Stable belt guard made of metal
• An aftercooler with large cooling fins ensures a low tank inlet temperature and therefore less moisture in the compressed air
• With all safety devices
• Ten-year rust-through warranty on powder-coated compressed air tank

Freewheel valve for less wear

• The freewheel valve avoids constant switching on and off
• After reaching the set pressure, the valve opens and the compressor runs without pressure
• When the pressure drops, the valve closes and the compressor works again on pressure

Service

• On the filter pressure regulator, you can fix the working pressure infinitely and remove pressure-reduced and filtered compressed air.
• Two pressure gauges show the tank u. Working pressure.
• As standard with quality quick coupling and high quality CONDOR pressure switch

Round protection

• The frame is at the same time a compressed air tank, holder for tool storage as well as all-round protection for all sensitive components
• Optimally protected and transportable with high performance

Eyebolts

• With two lifting eyes on the frame for lifting eg with a crane

Transport handle

• The two-handed grip allows easy transport to the job site

Shock mounts

• Equipped with two large and wide front swinging elements for stable stability

Tool tray

• Practical in everyday use as a storage for tools, plans, etc. and as protection against damage from above

High performance aggregate HOS

• The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall.
• The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke.
• The oil scraper wipes the oil-wetted cylinder wall downwards.
