Mobile, directly flanged 2-cylinder piston compressor Aircar 553/22 PRO

€2.544,87 EUR (€2.069,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2005553 Barcode: 4036351055525

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

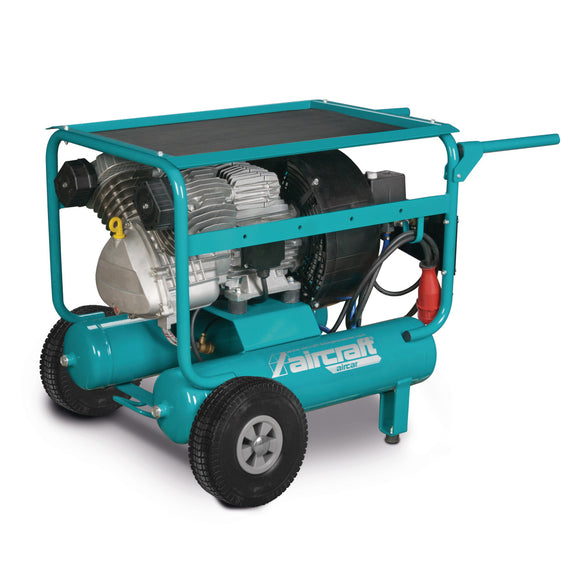

Mobile, directly flanged 2-cylinder piston compressor Aircar 553/22 PRO.
  • The frame is immediately tool storage as well as all-round protection for all sensitive components
  • The 2-cylinder high-performance gray cast iron unit in the V position and the low speed ensure maximum smoothness and service life.
  • Flexible armored hose line with heat protection prevents vibration breakage
  • One manometer each to indicate the tank pressure and the set working pressure
  • Three compressed air supply points with safety quick-release couplings for filtered compressed air, filtered and oiled compressed air and a direct compressed air outlet from the compressed air reservoir
  • High quality CONDOR pressure switch
  • Puncture-proof PU foam wheels in conjunction with the wide wheelbase ensure comfortable and safe transport
  • Ten-year rust-through warranty on powder-coated compressed air tank
  • High quality electric motor with high torque and motor start unloading, thus ensuring easy start-up
  • Electric motor equipped with motor protection switch
  • Fully automatic on-off operation
  • With all safety devices


Your advantages
  • The on-off switch is protected above and easily accessible.

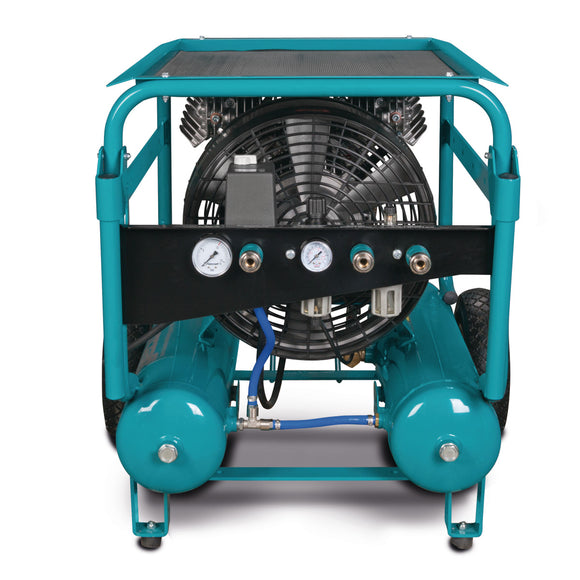

  • One manometer each to indicate the tank pressure and the set working pressure
  • Three sampling points for filtered compressed air, filtered and oiled compressed air and a direct outlet from the compressed air tank on the control panel
  • Standard with safety quick couplings and high quality CONDOR pressure switch
  • With powerful 2-cylinder high-performance gray cast iron unit in V position
  • With low-wear direct drive


service
  • Standard with high-quality CONDOR pressure switch
  • The on-off switch is protected above and easily accessible.
  • One manometer each to indicate the tank pressure and the set working pressure
  • One compressed air outlet for filtered compressed air, filtered and oiled compressed air and one direct compressed air outlet from the tank
  • Standard with comfort safety quick couplings


footwell
  • At the footwell there are no fittings or switches that can be damaged during tipping and transport.


protection
  • The frame is immediately tool storage as well as all-round protection for all sensitive components
  • The fittings are optimally protected against damage by the tubular frame and the overhead shelf.


Filter regulators
  • The working pressure is infinitely adjustable via the standard filter pressure regulator, with simultaneous dirt and condensate separation


mist oiler
  • The standard fog lubricator can be used to ensure adequate supply of the tools with lubricant.


High performance aggregate HOS
  • The precisely machined piston is equipped with a high-alloy piston ring, oil scraper ring and oil scraper ring, which seal the piston from the cylinder wall.
  • The crankcase is filled with oil, which is sprayed against the cylinder wall with each piston stroke.
  • The oil scraper wipes the oil-wetted cylinder wall downwards.


landing gear

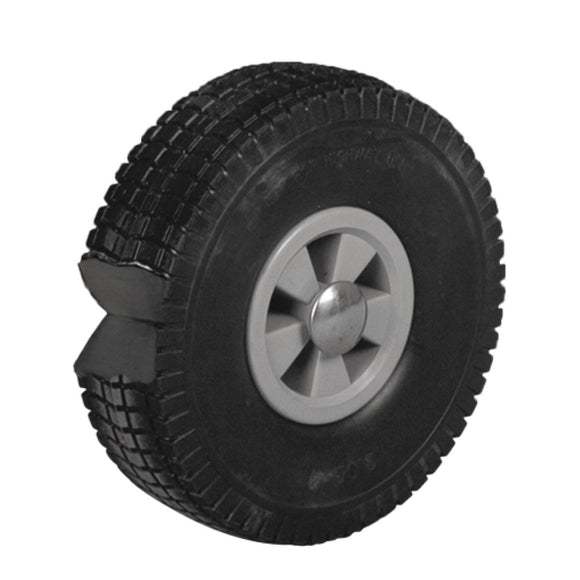

  • The large, stable wheels with puncture-proof PU foam tires in conjunction with the wide wheelbase ensure safe and comfortable transport even on uneven ground such as when climbing stairs


handles
  • Standard with fold-out handles for lifting during transport


hose hook
  • Standard with internally protected hose hook
  • .
  • Compressor speed 1420 min¯¹
  • Explanation Pressure vessel capacity 2 x 11 l
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 410 l/min
  • Frequency 50 Hz
  • Height 670 mm
  • Length 780 mm
  • Maximum pressure 10 bar
  • Motor output power 3 kW
  • Motor power (input power) 3.7 kW
  • Net weight 77 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Pressure vessel capacity 22 l
  • Sound power level 94 dB(A)
  • Sound pressure level 81 dB(A)
  • Suction capacity 550 l/min
  • Supply voltage 400 V
  • Width 685 mm
