Piston compressor AIRSTAR 603/90

€1.327,17 EUR (€1.079,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2007631 Barcode: 4036351336853

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

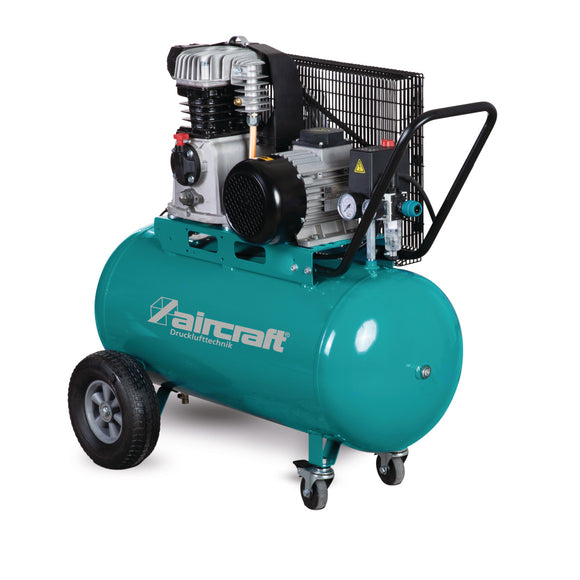

Piston compressor AIRSTAR 603/90.

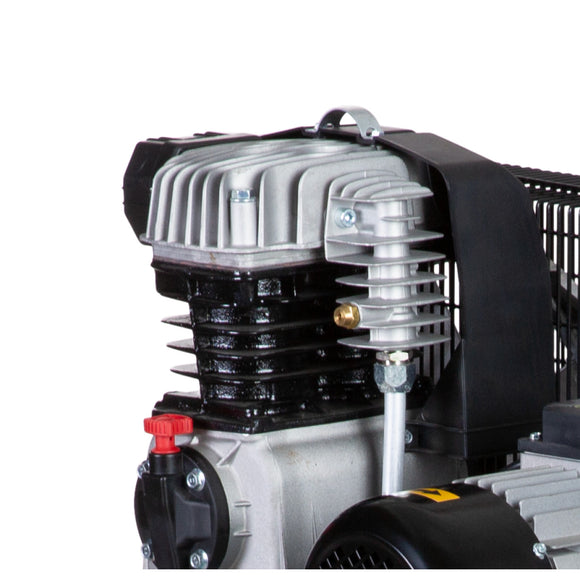

  • Two-cylinder high-performance units made of gray cast iron for a long service life.
  • Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
  • Quality electric motor with high starting torque
  • Electric motor equipped with motor protection switch
  • Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
  • Sturdy metal belt guard
  • Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
  • Container pressure gauge "

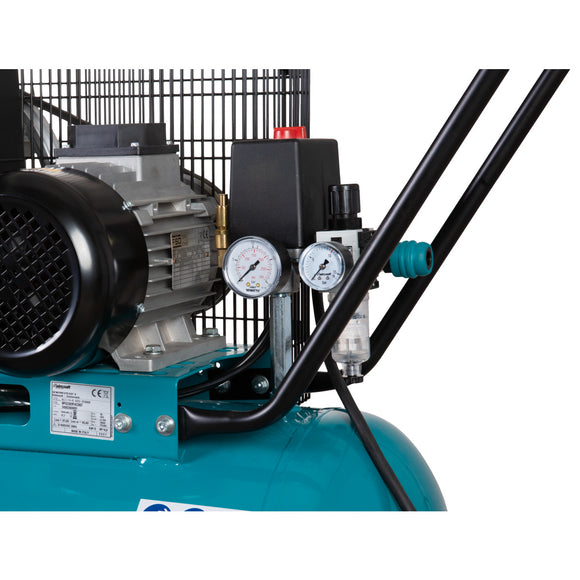

  • Filter pressure regulator with pressure gauge "" for regulated compressed air cleaned of condensate, dirt and oil
  • Ten-year warranty against rust-through on powder-coated compressed air reservoir
  • Includes high quality composite safety coupling and high quality CONDOR pressure switch
  • Large ergonomic handle

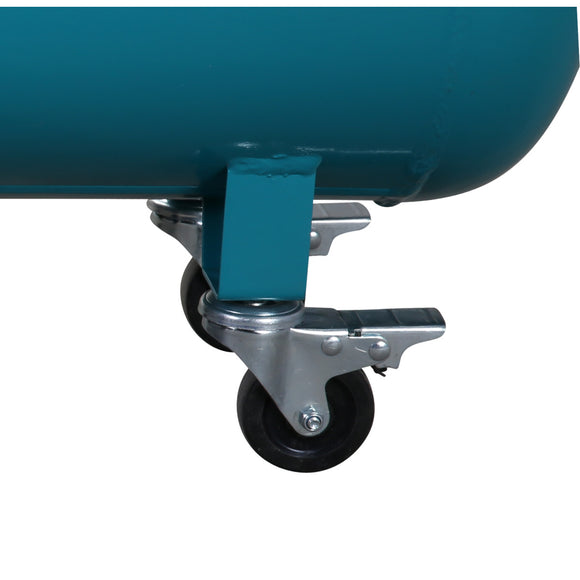

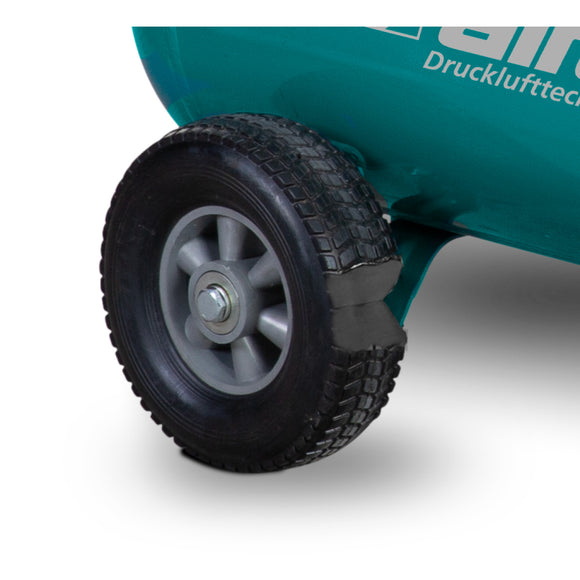

  • Stable steering chassis with parking brake in combination with large, puncture-proof PU wheels


.
  • Compressor speed 1310 min¯¹
  • Connection cable 2 m
  • Connector 400 V CEE plug with phase inverter
  • Diameter of piston 65 mm
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 400 l/min
  • Frequency 50 Hz
  • Height 850 mm
  • Length 1030 mm
  • Maximum pressure 10 bar
  • Motor duty cycle 75 %
  • Motor output power 3 kW
  • Motor power (input power) 3.7 kW
  • Net weight 71 kg
  • Number of compressor stages 1
  • Number of cylinders 2
  • Piston stroke 58 mm
  • Pressure vessel capacity 90 l
  • Sound power level 94 dB(A)
  • Sound pressure level 77 dB(A)
  • Suction capacity 510 l/min
  • Supply voltage 400 V
  • Width 440 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

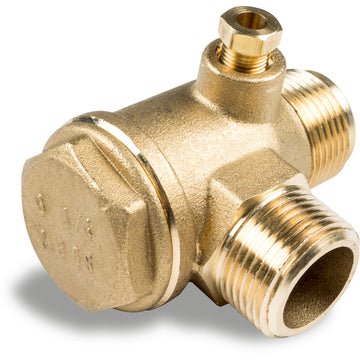

Non-return valve 1/2"AG x 1/2"AG Non-return valve 1/2"AG x 1/2"AG - 0
