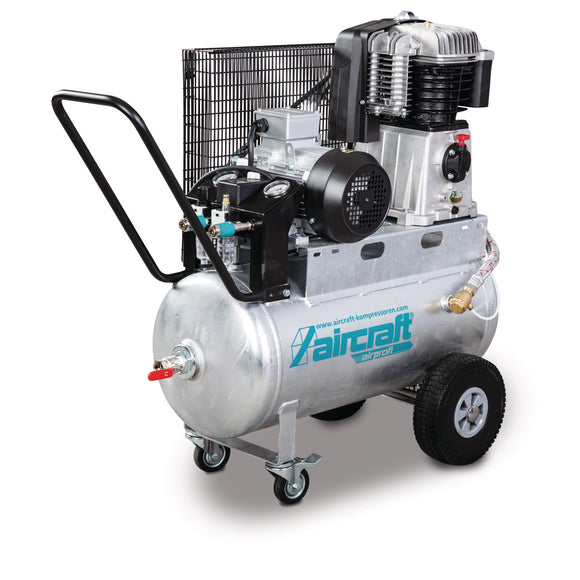

Mobile piston compressor with belt drive AIRPROFI 703/75/13 P

• Maximum, robust equipment and best quality at a reasonable price
• Fully automatic on-off operation
• With all safety devices
• Fully wired

Quality electric motor

• Quality electric motor with high torque is equipped with a motor protection switch
• Start-up capacitor and start-up relief valve ensure easy start-up
• As standard with phase inverter for easy manual reversal of the direction of rotation

Compressed air compression via high-performance aggregate HOS

• The start-up relief valve ensures a light and pressure-free start
• High-performance unit made of gray cast iron and the low speed guarantee particularly quiet, low-vibration operation and a long service life
• This ensures an even longer life due to even less wear
• High-quality compressor with optimum lubrication for a long service life and high reliability
• Equipped with high quality suction filter
• The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the compressed air tools
• In addition with intercooler to the aftercooler
• Corrosion-free valve plates for improved heat dissipation and longevity of the compressor
• The large fan wheel and a cooling air baffle on the cylinder ensure optimum cooling of the compressor
• A sturdy belt guard made of metal ensures optimum protection of the components and high user safety
• Compressed air supply into the boiler via flexible armored hose line with heat protection prevents vibration fracture

High quality drive belt

• Powerful and economical drive
• The toothed drive belt facilitates start-up, improves smoothness and power transmission and reduces the Power consumption up to 30%
• Stable belt guard made of metal

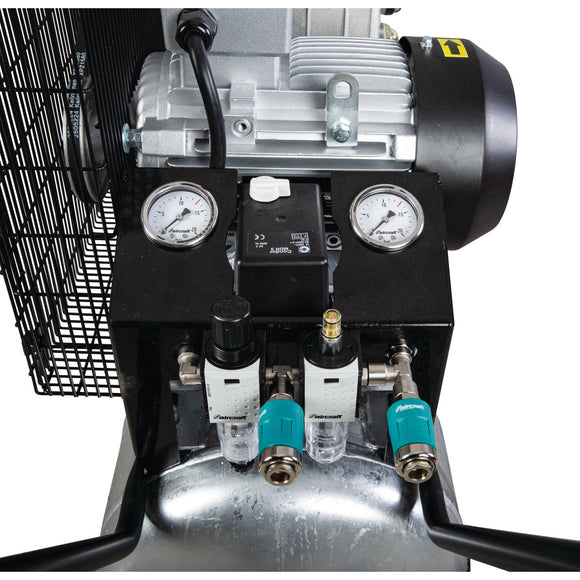

Operation at the maintenance block

• Equipped with a high-quality CONDOR pressure switch MDR push button function for fully automatic on-off operation
• Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensation separation
• Two large pressure gauges indicate the tank and working pressure
• Air extraction at the maintenance block via a comfort safety quick coupling
• Only fixed screw connections at the maintenance block, no hose connections

Two compressed air supply points

• A compressed air extraction point for filtered compressed air
• A compressed air extraction point via direct outlet on the boiler with ball valve

Comfort safety clutch - the advantages. li>

.
