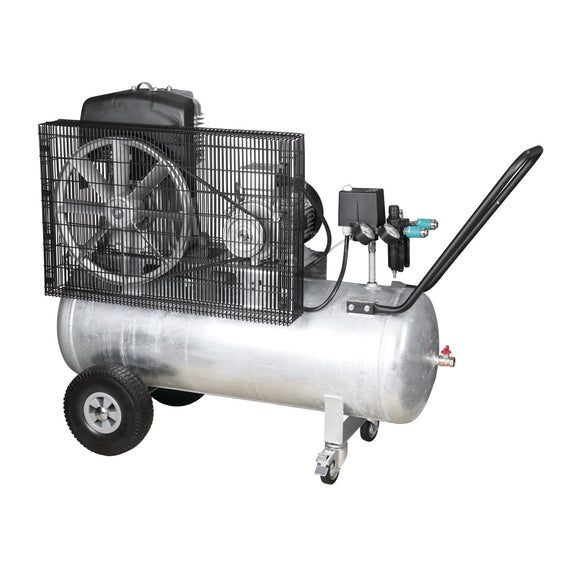

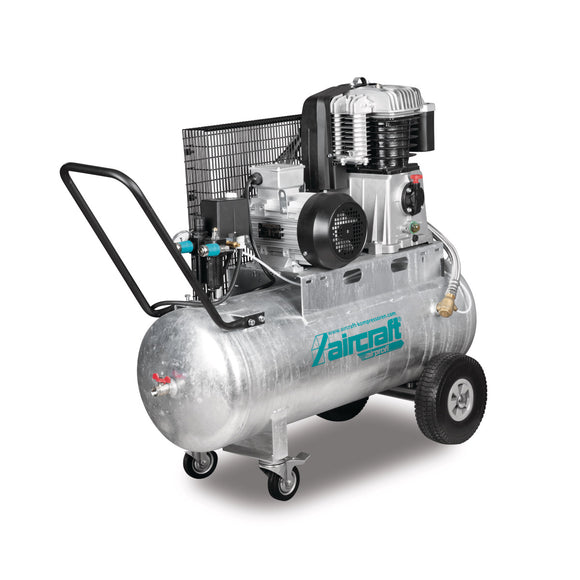

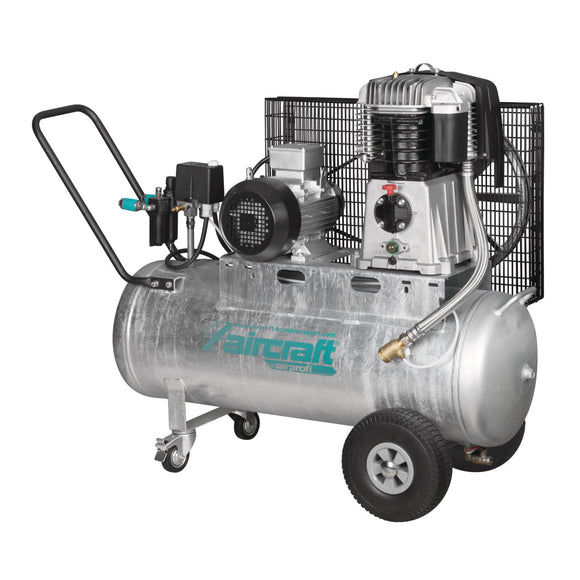

Piston compressor AIRPROFI 703/200/15

• Maximum, robust equipment and best quality at a reasonable price
• Fully automatic on-off operation
• With all safety devices
• Completely ready for connection

Quality electric motor

• Quality electric motor with high starting torque is equipped with a motor protection switch
• Starting capacitor and starting relief valve ensure easy starting
• Phase inverter as standard for easy manual reversal of the direction of rotation

Compressed air compression via high-performance HOS unit

• The start-up relief valve ensures easy and pressureless start-up
• The two-cylinder high-performance unit made of gray cast iron and the low speed guarantee particularly quiet and low-vibration running and a long service life
• This ensures an even longer service life due to even less wear and tear
• High-quality compressor with optimum lubrication for a long service life and high reliability
• Equipped with high quality intake filter
• The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the air tools
• Additional intercooler to the aftercooler
• Corrosion-free valve plates for improved heat dissipation and compressor longevity
• The large fan impeller and a cooling air baffle on the cylinder ensure optimum cooling of the compressor
• A sturdy metal belt guard ensures optimum protection of the components and a high level of user safety
• Compressed air supply to the boiler via flexible armored hose line with heat protection prevents vibration breakage

High quality drive belt

• Powerful and economical drive
• The toothed drive belt facilitates start-up, improves running smoothness and power transmission and reduces power consumption by up to 30%.
• Sturdy metal belt guard

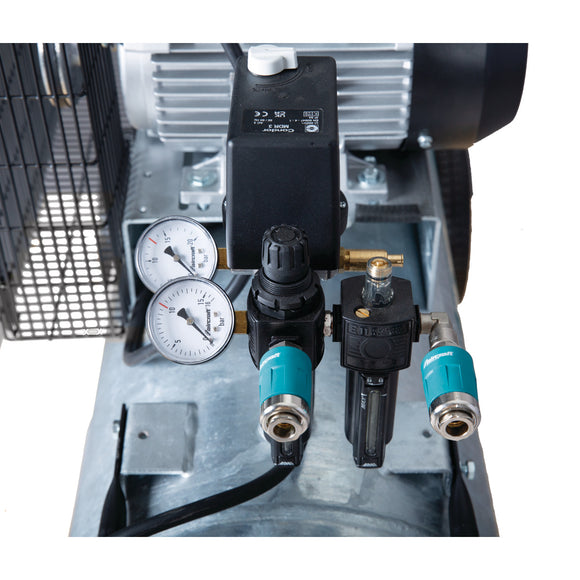

Operation on the maintenance block

• Equipped with a high-quality CONDOR MDR push-button function for fully automatic on-off operation
• Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous separation of dirt, oil and condensation water
• Two large pressure gauges indicate the tank pressure and the working pressure
• Air extraction at the maintenance block via a comfort safety quick coupling
• Only fixed screw connections at the maintenance block, no hose connections

Two compressed air tapping points

• One compressed air tapping point for filtered compressed air
• One compressed air tapping point via direct outlet on the boiler with ball valve

Comfort safety coupling - The advantages.

.
