Stationary piston compressor with 2x 100 liter compressed air tanks, refrigerant dryer, fine filter, steam trap and conditioner AIRPROFI DUO 703 / 2x100 / 10 KK

€5.669,07 EUR (€4.609,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2023074 Barcode: 4036351101437

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

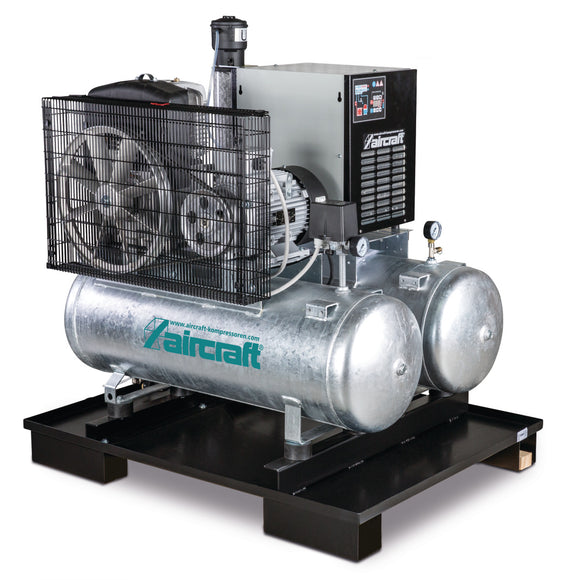

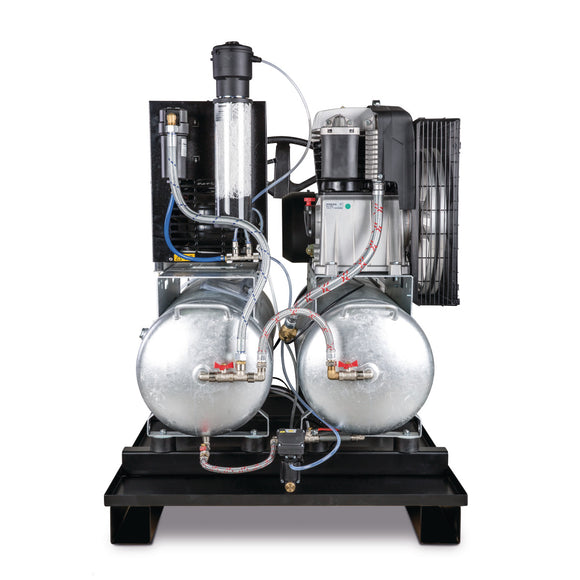

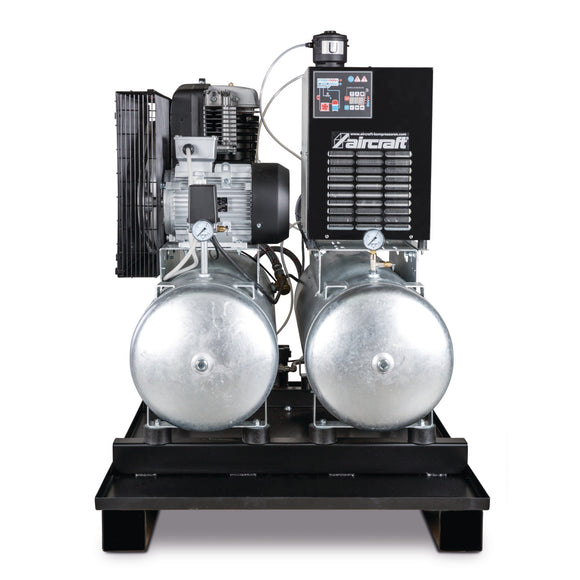

Stationary piston compressor with 2x 100 liter compressed air tanks, refrigerant dryer, fine filter, steam trap and conditioner AIRPROFI DUO 703 / 2x100 / 10 KK.
  • Two-stage compression 2-cylinder high-performance unit with cast iron cylinder block
  • The low speed ensures quiet, low-vibration operation and a long service life
  • Large fan wheel for optimal cooling
  • High quality electric motor with high torque
  • Electric motor equipped with motor protection switch
  • With phase inverter for easy manual reversal of the direction of rotation
  • Intermediate and aftercooler reduces the formation of condensation
  • Maintenance block with two pressure gauges for tank pressure and working pressure and high quality CONDOR pressure switch
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • Fully automatic on-off operation
  • Ready for connection with all fittings


Increased flexibility

  • By connecting the second compressed air tank, the container volume is doubled, whereby a higher air supply can be established
  • .
  • Air outlet 3/4 "
  • Compressed air outlet 1/2 inch air outlet on refrigeration dryer
  • Compressor speed 950 min¯¹

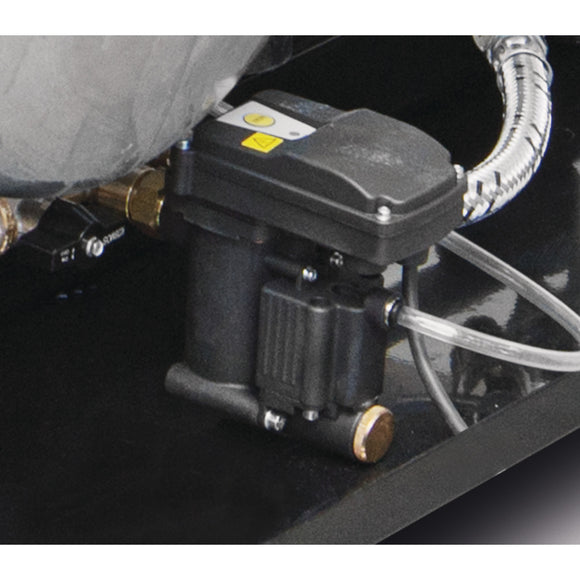

  • Condensate treatment Oil-water separator WOS 1
  • Connector 400V CEE plug with phase inverter
  • Explanation Pressure vessel capacity 2 x 100 l
  • Explanation filling capacity at 6 bar working pressure
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling capacity 520 l/min
  • Frequency 50 Hz
  • Height 1250 mm
  • Length 1200 mm
  • Maximum pressure 10 bar
  • Motor output power 4 kW
  • Motor power (input power) 4.8 kW
  • Net weight 235 kg
  • Number of compressor stages 2
  • Number of cylinders 2
  • Pressure vessel capacity 200 l
  • Sound pressure level 83 dB(A)
  • Suction capacity 650 l/min
  • Supply voltage 400 V
  • Width 900 mm
