Piston compressor AIRSTAR 903/50/15 HG-1
Piston compressor AIRSTAR 903/50/15 HG-2
Piston compressor AIRSTAR 903/50/15 HG-3

Piston compressor AIRSTAR 903/50/15 HG

€8.179,50 EUR (€6.650,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2028725 Barcode: 4036351355793

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

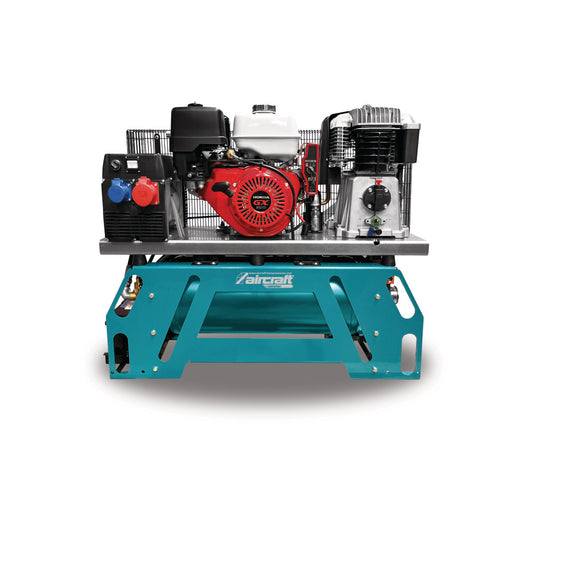

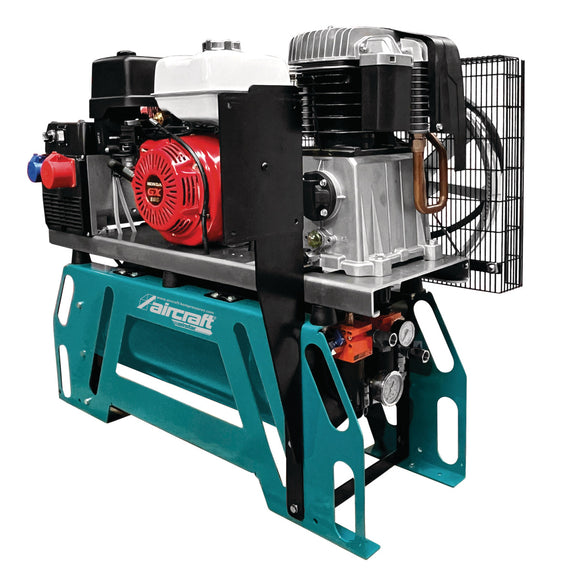

Piston compressor AIRSTAR 903/50/15 HG.
  • The two-stage compression 2-cylinder high-performance cast iron unit achieves a very low speed, resulting in particularly quiet and low-vibration operation. This ensures a longer service life due to less wear
  • Belt drive by Honda GX390 engine with low oil and fuel consumption as well as low noise and vibration levels
  • Energy efficiency: The Honda GX390 engine is known for its low oil and fuel consumption, which reduces operating costs
  • With a high air delivery rate of 900 liters per minute, this compressor is ideal for demanding applications
  • Versatility: Equipped with a generator for both three-phase (7 kVA) and single-phase (3. 5 kVA) power supply
  • Easy maintenance: thanks to the integrated filter and lubrication equipment, the compressor remains clean and efficient
  • Simple operation thanks to electric and manual start
  • Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain cock
  • Sturdy metal belt guard
  • Socket design: CEE socket 230V / 16A and CEE socket 400V / 16 A


.
  • Air outlet 3 x 1/2 "
  • Compressed air treatment ✔
  • Compressor speed from to 700 - 1300 min¯¹
  • Condensate drain ✔
  • Continuous output power (active power) 2.4 / 4.8 kW
  • Continuous output power (apparent power) 3.0 / 6.0 kVA
  • Filling capacity 740 l/min
  • Filter for particle size 20 µm
  • Frequency 50 Hz
  • Fuel consumption at 75% load 3 l/h
  • Generator protection class IP 23
  • Height 1150 mm
  • Length 1250 mm
  • Limited output power (active power) 2.8 / 5.6 kW
  • Limited output power (apparent power) 3.5 / 7.0 kVA
  • Maximum pressure 15 bar
  • Motor speed from to 1700 - 3000 min¯¹
  • Net weight 186 kg
  • Nominal voltage 230 / 400 V
  • Number of compressor stages 2
  • Number of cylinders 2
  • Output max. drive motor 8.7 kW
  • Power factor 0.8 cos phi
  • Pressure vessel capacity 50 l
  • Running time at 100% load 2.8 h
  • Running time at 50% load 4.5 h
  • Socket IP degree of protection IP 44
  • Socket type CEE 230V 16A / CEE 400V 16A
  • Sound power level 98 dB(A)
  • Sound pressure level 97 dB(A)
  • Speed 3000 min¯¹
  • Suction capacity 900 l/min
  • Tank capacity 6.1 l
  • Width 600 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Handle set Airstar 903/50/10 H-G Handle set Airstar 903/50/10 H-G - 0

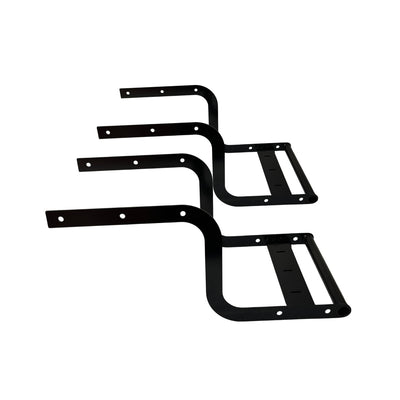

Handle set Airstar 903/50/10 H-G

Aircraft

€104,55 EUR
Enquire
Exhaust pipe Airstar 903/50/10 H-G Exhaust pipe Airstar 903/50/10 H-G - 0

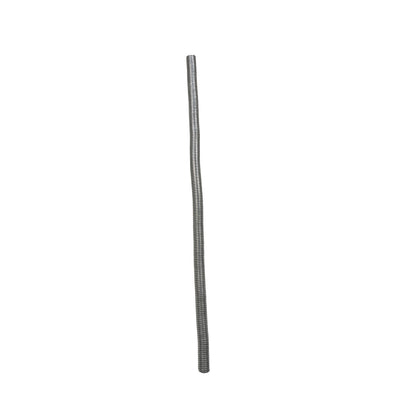

Exhaust pipe Airstar 903/50/10 H-G

Aircraft

€89,17 EUR
Enquire
Oscillating element set Airstar 903/50/10 H-G Oscillating element set Airstar 903/50/10 H-G - 0

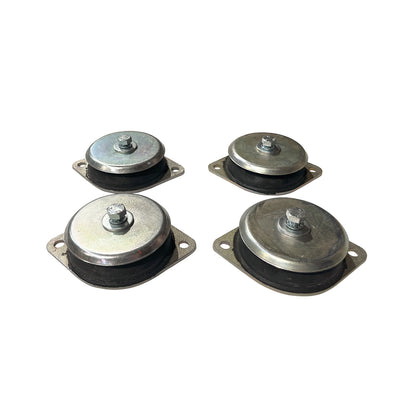

Oscillating element set Airstar 903/50/10 H-G

Aircraft

€186,34 EUR
Enquire
Mounting plate for hose reels Mounting plate for hose reels - 0

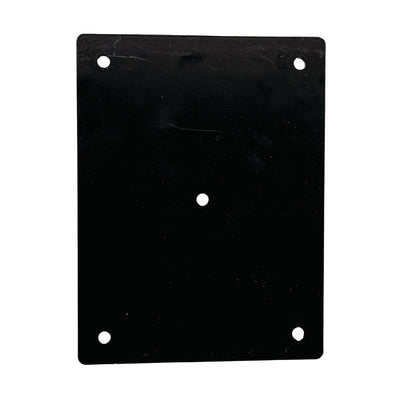

Mounting plate for hose reels
