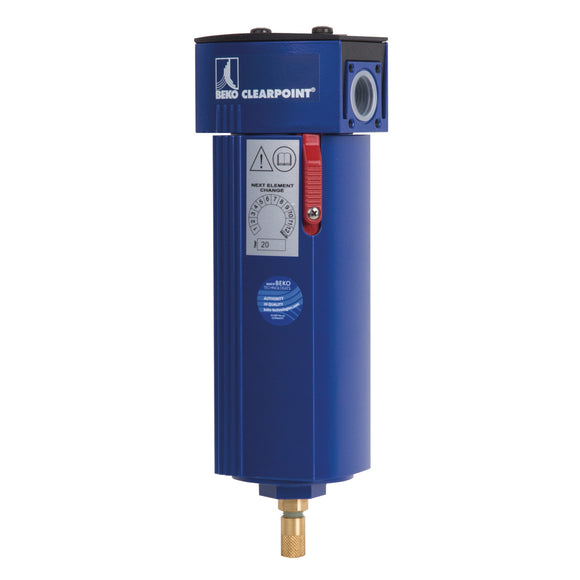

Ultrafine filter CLEARPOINT® 3eco M010 FWF media thumbnails
Ultrafine filter CLEARPOINT® 3eco M010 FWF-1
Ultrafine filter CLEARPOINT® 3eco M010 FWF-2

Ultrafine filter CLEARPOINT® 3eco M010 FWF

€633,45 EUR (€515,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2042450 Barcode: 9006248007239

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

Ultrafine filter CLEARPOINT® 3eco M010 FWF.
  • Flow-optimized air supply for up to 75% less resistance
  • Assembly of the filter elements without cross-sectional narrowing and disturbing tie rods, thus reduced flow resistance and easy element change even in confined spaces
  • Cavity volume of the borosilicate filter material of 96% ensures the lowest pressure loss
  • CLEARPOINT® filter housing made of water-resistant aluminum and additionally anodised on the inside.
  • Air connection 1 "
  • Comment on residual content at 20°C and 1 bar
  • Differential pressure (dry) 0.05 bar
  • Height 350 mm
  • Particle size 1 µm
  • Residual oil aerosol content 0,1 mg/m³
  • Volume flow l/min 3340 l/min
  • Volume flow measured at operating pressure 16 bar
  • Volume flow m³/h 200 test
  • Width 100 mm
Filter element, float valve
