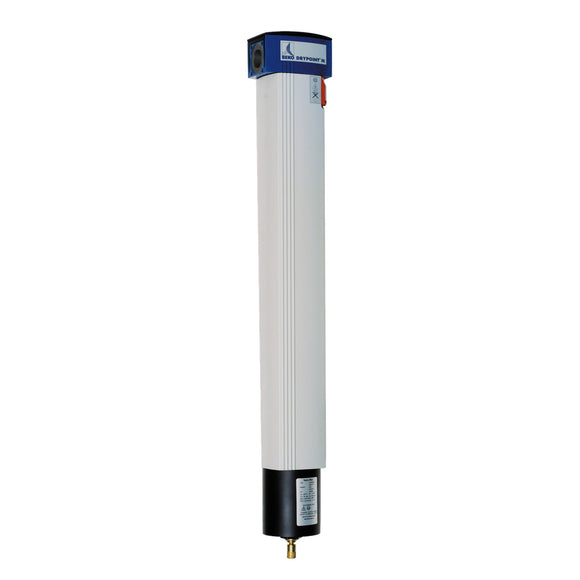

Membrane dryer DRYPOINT M PLUS 20-48AN-1
Membrane dryer DRYPOINT M PLUS 20-48AN-2

Membrane dryer DRYPOINT M PLUS 20-48AN

€2.434,17 EUR (€1.979,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2048316 Barcode: 4036351288664

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Membrane dryer DRYPOINT M PLUS 20-48AN.
  • The ultimate membrane dryer technology with integrated nanofilter
  • Filtration and drying in one housing (simple filter element change)
  • Low purge air requirement (Twist 60 technology)
  • Availability of dried compressed air immediately without running-in phase
  • Safe drying due to the high partial vapor pressure gradient
  • No change in the compressed air temperature and composition
  • Proven 100,000 times
  • Maintenance-free (except filter element change)
  • For diverse applications, including for breathing air treatment
  • Also ideal for use directly behind the compressor / aftercooler
  • Optionally also for higher loads (assembly potting, 16 bar, 70°C)
  • For a reliable function of the DRYPOINT M membrane dryer must meet the following requirements:
    1. .
  • 253 l/min
  • 297 l/min
  • 399 l/min
  • 600 l/min
  • Air connection G 1/2 "
  • Diameter (D) 80 mm
  • Explanation Volume flow input Specifications refer to a pressure of 7 bar. When changing the pressure, the correction factors must be taken into account.
  • Height (A) 593 mm
  • Maximum pressure 12,5 bar
  • Net weight 3.5 kg
  • Purge air at 7 bar 60 l/min
  • Volume flow input (PDP reduction from +35°C to +15°C) 600 l/min
  • Volume flow input (PDP reduction from +35°C to +3°C) 399 l/min
  • Width/Depth (B) 80 mm
  • 2 wall brackets
  • Connection fitting for filters (1/2" to 1/2")
