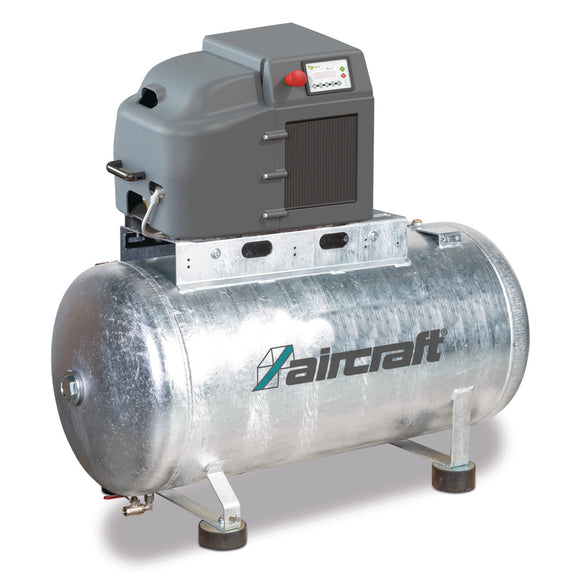

Screw compressor ACS 3,5-10-200

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

High-quality equipment

• Hot-dip galvanized compressed air tank inside and out with 15-year guarantee against rusting through
• Compressed air tank in accordance with AD
• Splash water protection to IP 54
• Flexible armored hose lines with heat protection prevent vibration fractures
• With phase inverter on the plug as standard
• Ready for connection with all fittings
• Also available with refrigeration dryer and pre-filter
