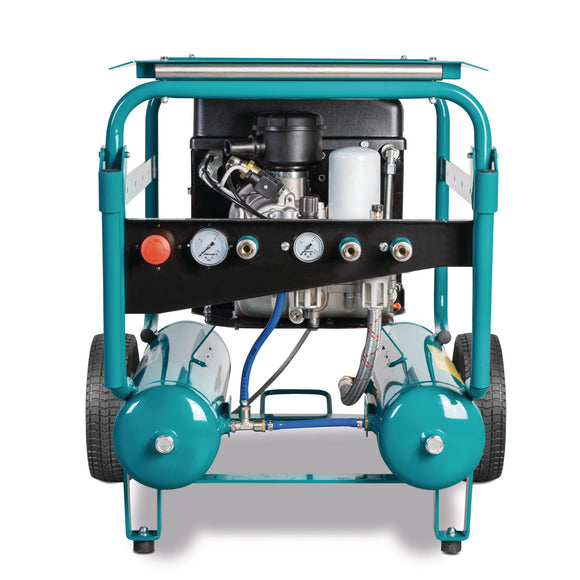

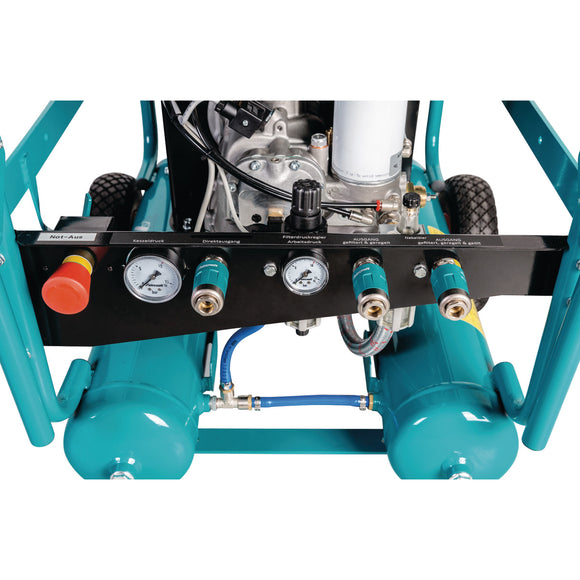

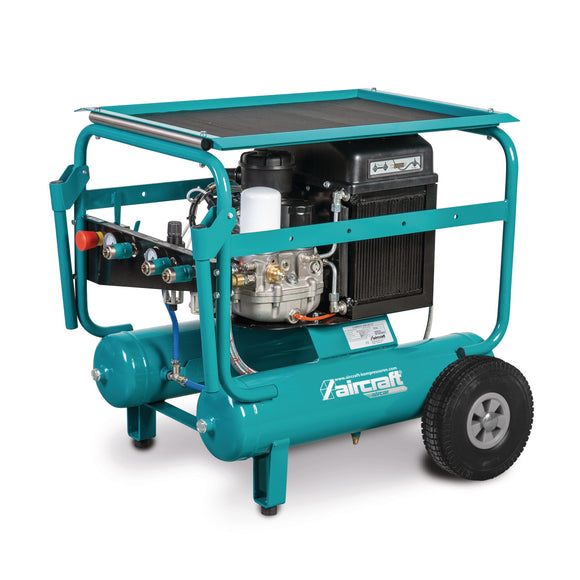

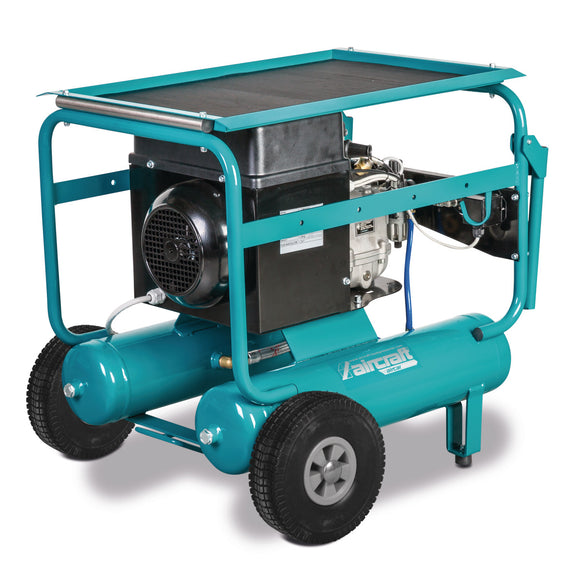

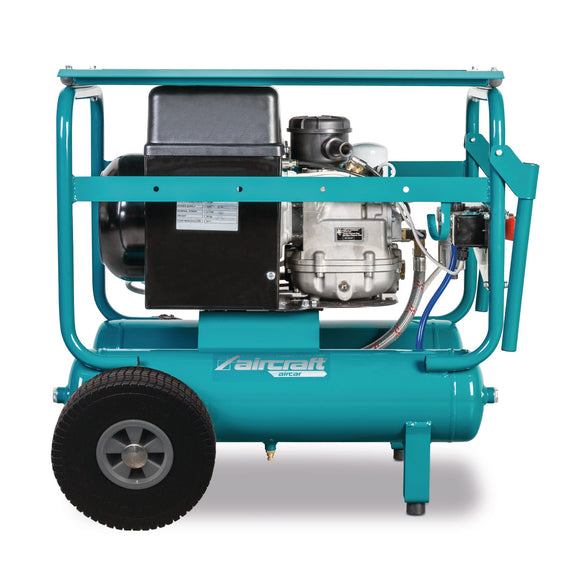

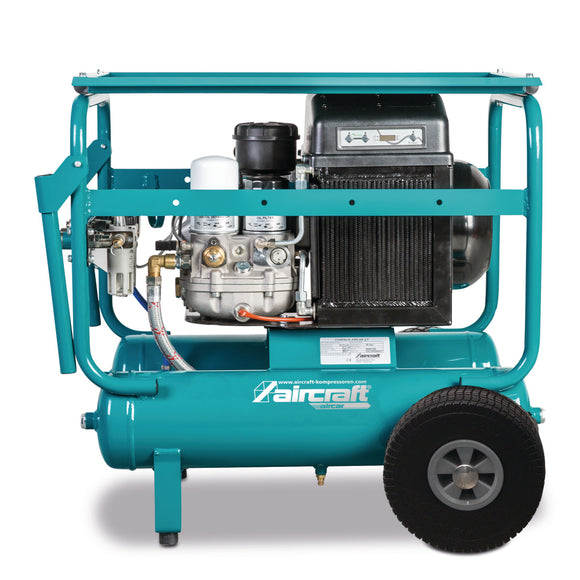

Screw compressor ACS AIRCAR 3,5-10-22

• Cable length 550 mm
• Delivery power electric motor 4 kW
• Duty type drive motor S1
• Effective delivery volume 360 l/min
• Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Frequency 50 Hz
• Fuse protection 12 A
• Height 720 mm
• Length 1020 mm
• Maximum Pressure 10 bar
• Motor efficiency class IE1
• Motor power (input power) electric motor 4.2 kW
• Net weight 88 kg
• Oil heat exchanger ✔
• Oil heater ✔
• Pressure vessel capacity 22 l
• Protection class drive motor IP54
• Sound pressure level 69 dB(A)
• Speed electric motor 2880 min¯¹
• Supply voltage 400 V
• Total current draw 8.5 A
• Width 700 mm
