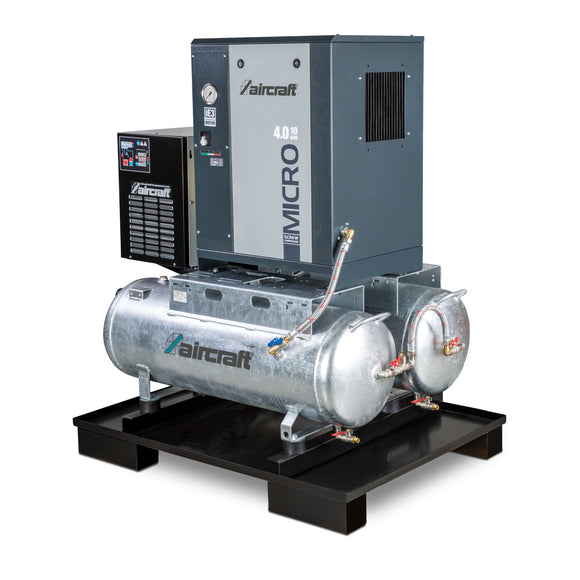

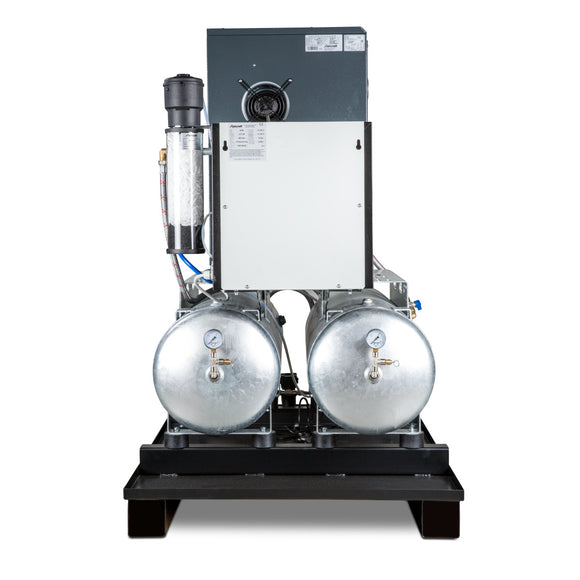

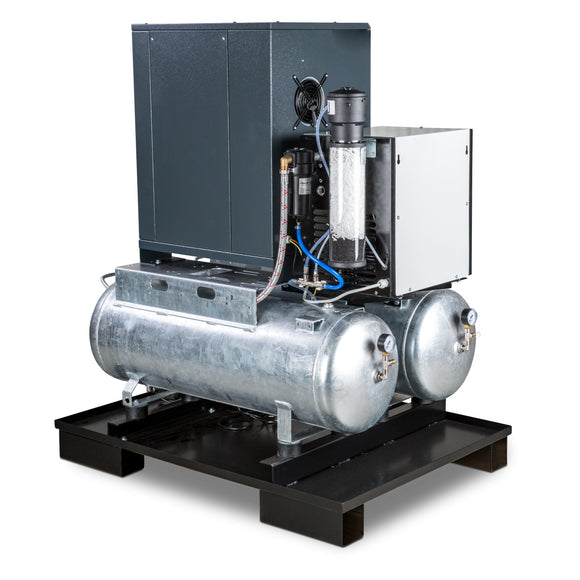

Screw compressor with ribbed belt drive with mounted refrigeration dryer on 2 x 100 l container A-DUO-MICRO SE 4. 0-08 2x100 K.

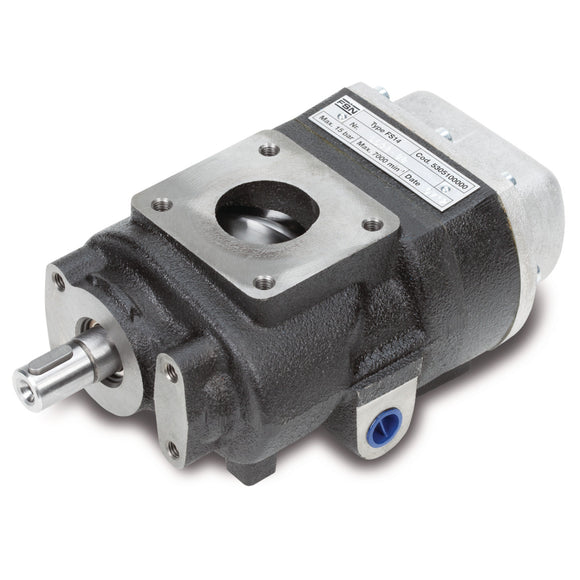

  • Screw compressor with ribbed belt drive
  • Start-stop operation via pressure switch, thereby saving energy compared to idling control
  • Minimal and easy maintenance
  • Ready for connection with all fittings
  • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
  • Easily transportable and deployable thanks to the safety pallet.
  • KK version as standard with automatic steam trap for the reliable and economical discharge of the condensate without unnecessary loss of compressed air
  • K and KK version with refrigeration dryer as standard with pressure dew point at 3 °C, ambient temperature 25 °C
Increased flexibility
  • Enabling the second compressed air vessel doubles the pressure vessel volume, thus creating a greater compressed air reserve. Helps to cover short-term peaks in compressed air requirements
  • For, e. chisel, hammer or sandblasting work, the second vessel can be isolated from the compressed air supply. This halves the vessel volume helping to build up the pressure more quickly.


.
  • Air outlet 1/2 "
  • Effective delivery volume 580 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 2.2 l
  • Frequency 50 Hz
  • Height 1430 mm
  • Length 1250 mm
  • Maximum Pressure 8 bar
  • Motor power (input power) electric motor 4 kW
  • Net weight 221 kg
  • Pressure vessel capacity 200 l
  • Remark Container contents 2 x 100 l
  • Sound pressure level 61 dB(A)
  • Supply voltage 400 V
  • Width 950 mm
  • Shock mounts
  • Safety pedestal range
  • refrigeration dryer
  • fine filter
