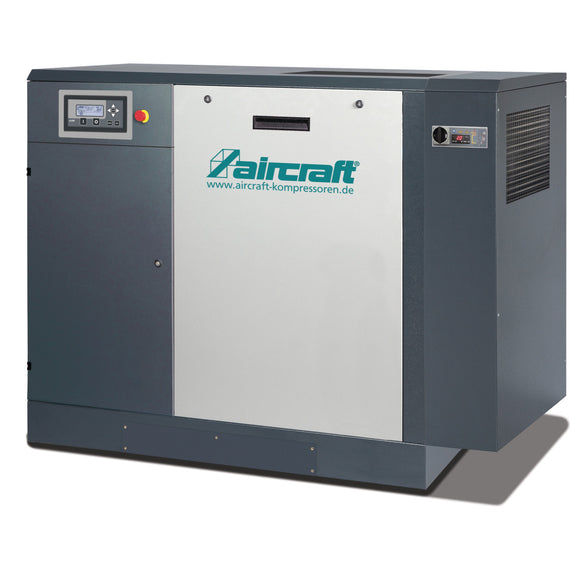

Screw compressor with ribbed belt drive (floor installation with refrigeration dryer) A-PLUS 22-08 K

• Air outlet 1 "
• Effective delivery volume 3350 l/min
• Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Filling quantity of oil 7 l
• Frequency 50 Hz
• Height 1130 mm
• Length 1690 mm
• Maximum Pressure 8 bar
• Motor efficiency class IE3
• Motor power (input power) electric motor 22 kW
• Net weight 430 kg
• Sound pressure level 68 dB(A)
• Supply voltage 400 V
• Width 800 mm
