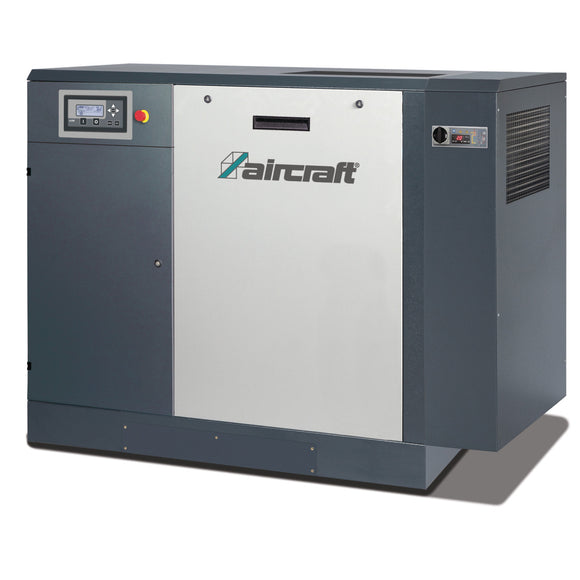

Belt-driven screw compressor (floor installation with frequency control and mounted refrigeration dryer) A-PLUS K VS.

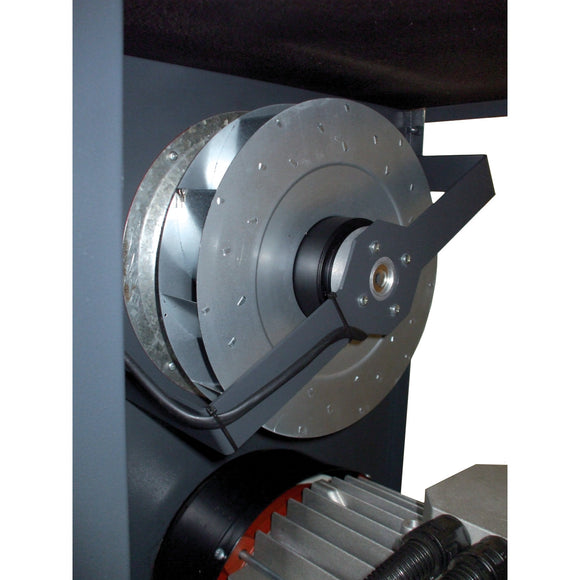

This ensures optimal cooling even under the most extreme conditions.
  • Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
  • The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
  • Energy savings through frequency-controlled compressors
    Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS 22, 37, 55 and 75 kW range is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.

    .
    • Air outlet 1 ¼ "
    • Effective delivery quantity of up to 2350 - 5900 l/min
    • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
    • Filling quantity of oil 15 l
    • Frequency 50 Hz
    • Height 1440 mm
    • Length 1860 mm
    • Maximum Pressure 8 bar
    • Motor efficiency class IE3
    • Motor power (input power) electric motor 37 kW
    • Net weight 805 kg
    • Sound pressure level 72 dB(A)
    • Supply voltage 400 V
    • Width 830 mm
