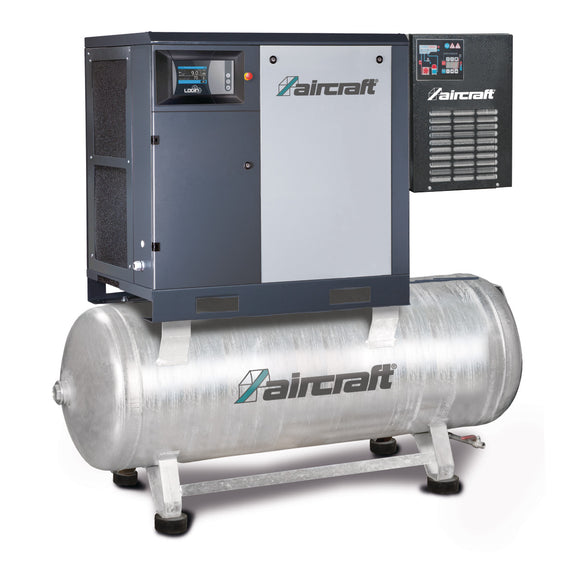

Screw compressor A-K-MAX 7,5-10-270 K (IE3)

• Air outlet 1/2 "
• Effective delivery volume 1050 l/min
• Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Filling quantity of oil 4.6 l
• Frequency 50 Hz
• Height 1540 mm
• Length 1200 mm
• Maximum Pressure 10 bar
• Motor efficiency class IE3
• Motor power (input power) electric motor 7.5 kW
• Net weight 280 kg
• Oil heat exchanger ✔
• Pressure vessel capacity 270 l
• Sound pressure level 62 dB(A)
• Speed electric motor 3000 min¯¹
• Star-delta switch ✔
• Supply voltage 400 V
• Width 680 mm
