Direct coupled screw compressor A-K-MAX 7,5-10-270F K VS

€12.361,50 EUR (€10.050,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2095564 Barcode: 4036351247449

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

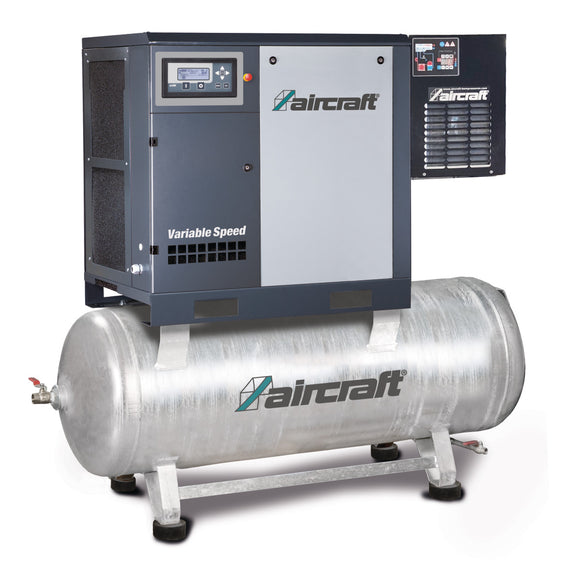

Direct coupled screw compressor A-K-MAX 7,5-10-270F K VS.
The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced cutting-edge technology in the smallest of spaces.

Your advantages:
  • Active energy saving
  • Ideal for frequently changing compressed air consumption
  • The speed-controlled compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates greatly.


.
  • Air outlet 2 "
  • Effective delivery quantity of up to 440 - 1100 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 4.2 l
  • Frequency 50 Hz
  • Height 1540 mm
  • Length 1200 mm
  • Maximum Pressure 10 bar
  • Motor efficiency class IE3
  • Motor power (input power) electric motor 7.5 kW
  • Net weight 305 kg
  • Pressure vessel capacity 270 l
  • Sound pressure level 63 dB(A)
  • Supply voltage 400 V
  • Width 650 mm
