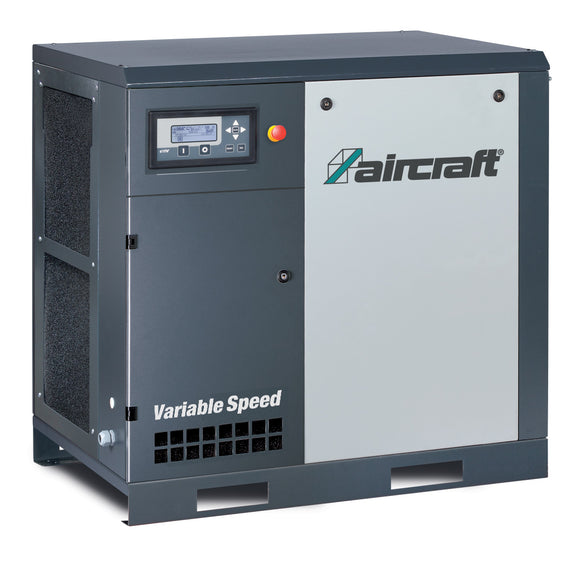

Direct coupled screw compressor A-K-MAX 1108 VS

€11.162,25 EUR (€9.075,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2095702 Barcode: 4036351246220

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Direct coupled screw compressor A-K-MAX VS.
The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced advanced technology in a small space.

Your advantages:
  • Active energy saving
  • Ideal for frequently changing compressed air consumption
  • The variable speed compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates widely.


.
  • Air outlet 3/4 "
  • Effective delivery quantity of up to 680 - 1700 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 6.5 l
  • Frequency 50 Hz
  • Height 1000 mm
  • Length 1000 mm
  • Maximum Pressure 8 bar
  • Motor efficiency class IE3
  • Motor power (input power) electric motor 11 kW
  • Net weight 240 kg
  • Sound pressure level 68 dB(A)
  • Supply voltage 400 V
  • Width 700 mm
