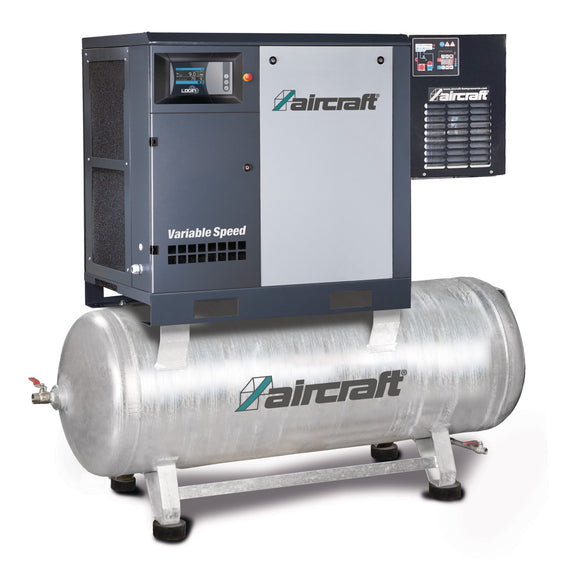

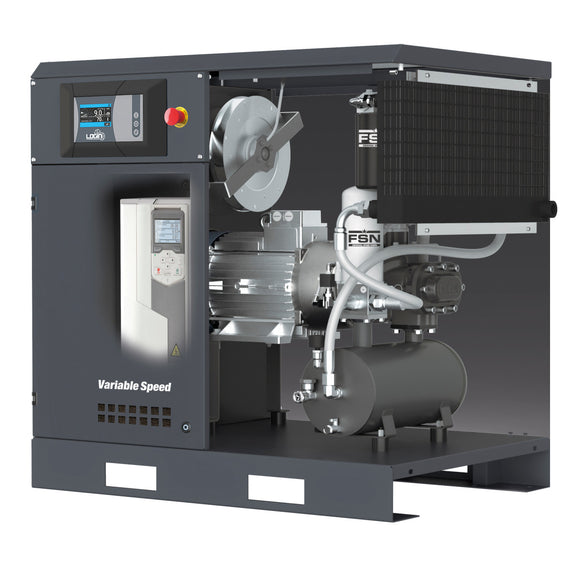

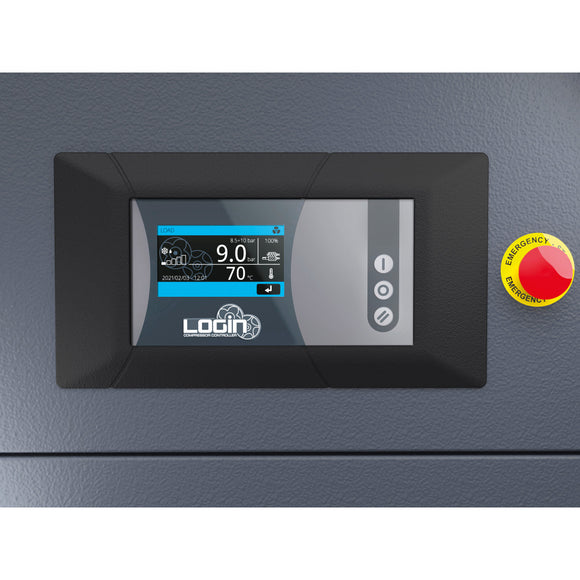

Screw compressor A-K-MAX 11-10-500 K VS (IE3)

• Air outlet 3/4 "
• Effective delivery quantity of up to 620 - 1580 l/min
• Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Filling quantity of oil 8.5 l
• Frequency 50 Hz
• Frequency controlled ✔
• Height 1660 mm
• Length 2000 mm
• Maximum Pressure 10 bar
• Motor efficiency class IE3
• Motor power (input power) electric motor 11 kW
• Net weight 372 kg
• Oil heat exchanger ✔
• Pressure vessel capacity 500 l
• Sound pressure level 67 dB(A)
• Speed electric motor 3000 min¯¹
• Star-delta switch ✔
• Supply voltage 400 V
• Width 730 mm
