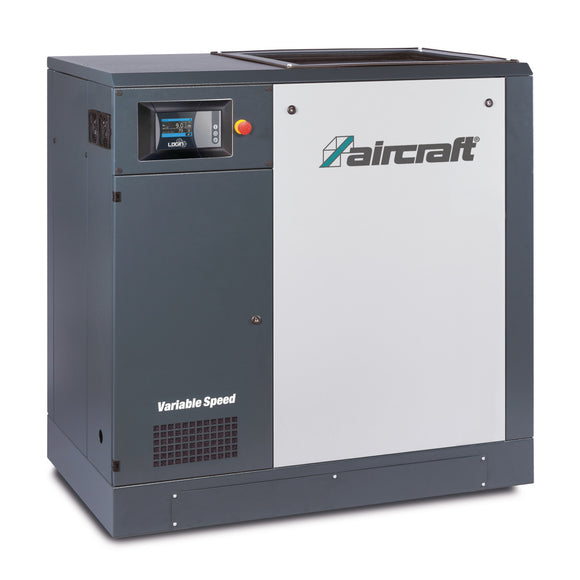

Screw compressor A-K-MAX 18. 5-10 VS (PM).

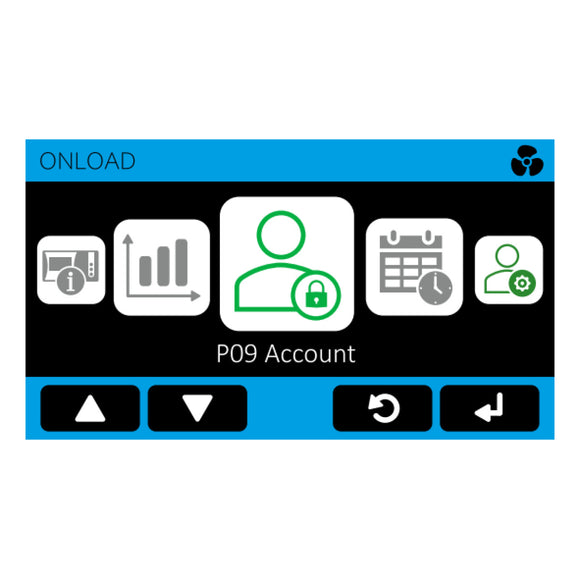

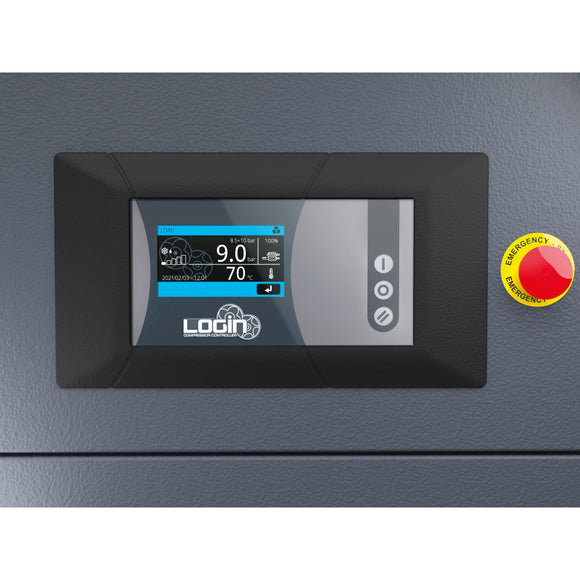

  • Innovative LOGIN control with 4. 3" touch screen for easy operation and full control of all functions. energy efficiency
    • Larger speed/load range
    • Larger delivery volume supply range

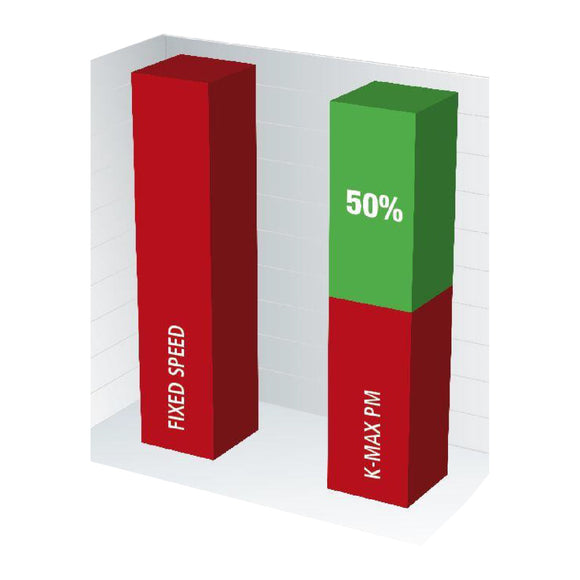

    • Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
    • Very quiet operation - only 64 dB
    Energy saving through frequency control
    • Ideal for frequently changing compressed air consumption
    • Compressor delivery rate adjusts to actual consumption
    • Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely

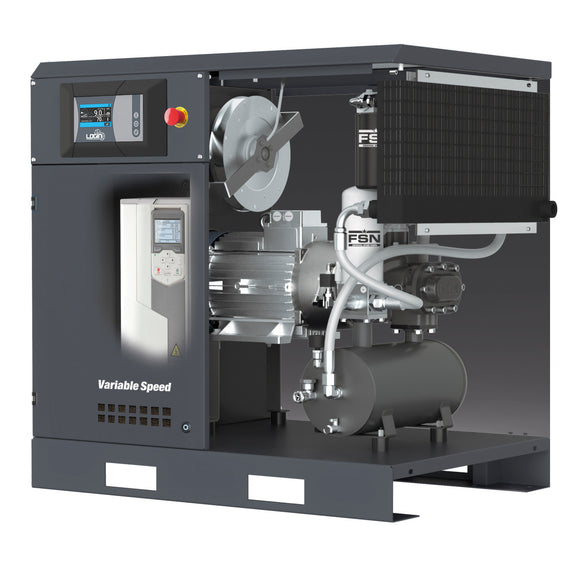

    • Advanced and efficient cutting-edge technology in the smallest possible space


    .
  • Air outlet 1 ¼ "

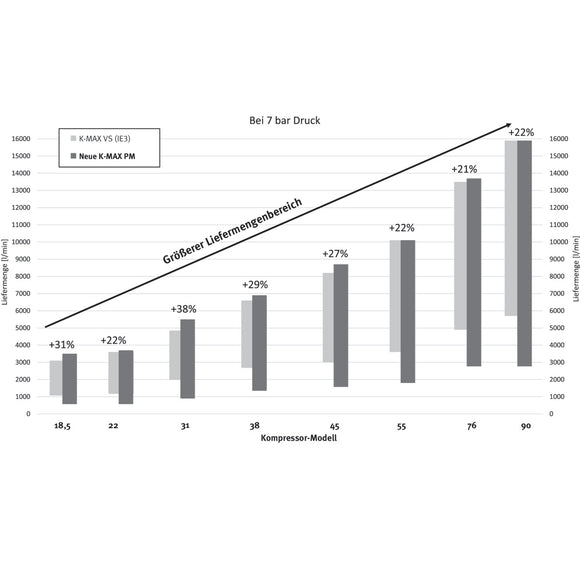

  • Effective delivery quantity of up to 660 - 3050 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 15 l
  • Frequency 50 Hz
  • Frequency controlled ✔
  • Height 1370 mm
  • Length 1330 mm
  • Maximum Pressure 10 bar
  • Motor efficiency class IE4
  • Motor power (input power) electric motor 18.5 kW
  • Net weight 475 kg
  • Oil heat exchanger ✔
  • Sound pressure level 63 dB(A)
  • Speed electric motor 3000 min¯¹
  • Star-delta switch ✔
  • Supply voltage 400 V
  • Width 850 mm
