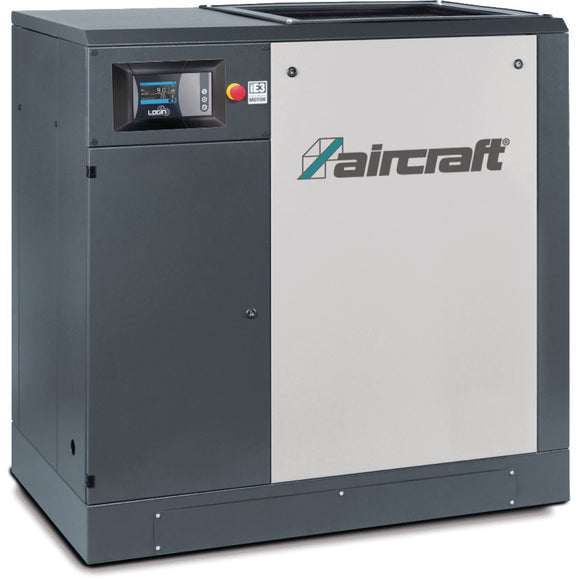

Screw compressor A-K-MAX 22-08 (IE4)

• Air outlet 1 ¼ "
• Effective delivery volume 3600 l/min
• Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Filling quantity of oil 15 l
• Frequency 50 Hz
• Height 1370 mm
• Length 1330 mm
• Maximum Pressure 7.5 bar
• Motor efficiency class IE4
• Motor power (input power) electric motor 22 kW
• Net weight 620 kg
• Oil heat exchanger ✔
• Sound pressure level 60 dB(A)
• Speed electric motor 3000 min¯¹
• Star-delta switch ✔
• Supply voltage 400 V
• Width 850 mm
