Screw compressor A-K-MAX 31-08 (IE4)

€29.759,85 EUR (€24.195,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2096312.2 Barcode: 4036351332060

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

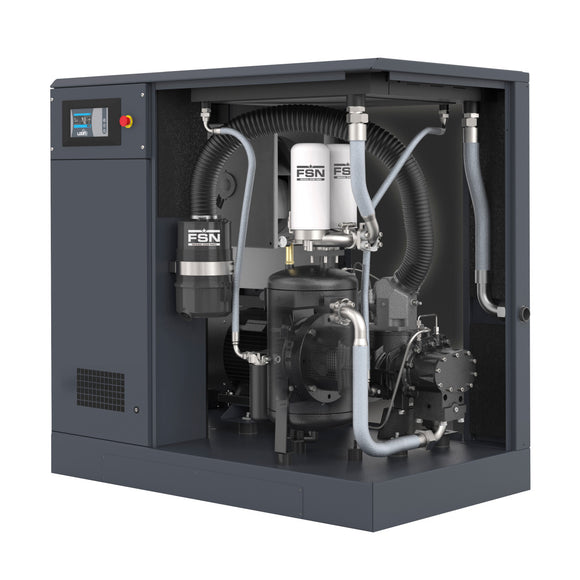

Screw compressor A-K-MAX (IE4).

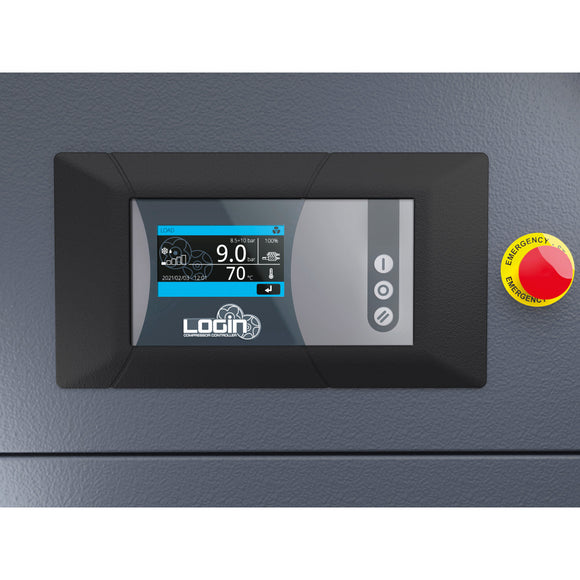

  • Innovative LOGIN control with 4. 3" touch screen for easy operation and full control of all functions.
  • Air outlet 1.5 "
  • Effective delivery volume 4850 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 28 l
  • Frequency 50 Hz
  • Height 1560 mm
  • Length 1590 mm
  • Maximum Pressure 7.5 bar
  • Motor efficiency class IE4
  • Motor power (input power) electric motor 30 kW
  • Net weight 847 kg
  • Oil heat exchanger ✔
  • Sound pressure level 68 dB(A)
  • Speed electric motor 3000 min¯¹
  • Star-delta switch ✔
  • Supply voltage 400 V
  • Width 1000 mm
