Screw compressor A-K-MAX 24-10 VS (PM)

€27.982,50 EUR (€22.750,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 2096324.2 Barcode: 4036351335993

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

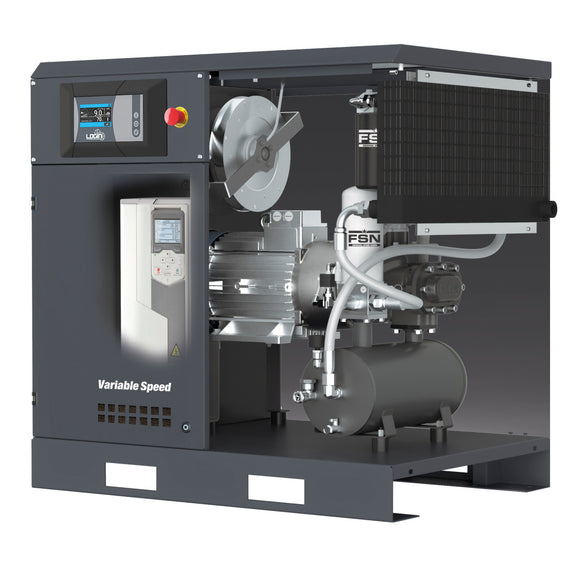

Screw compressor A-K-MAX VS (PM).

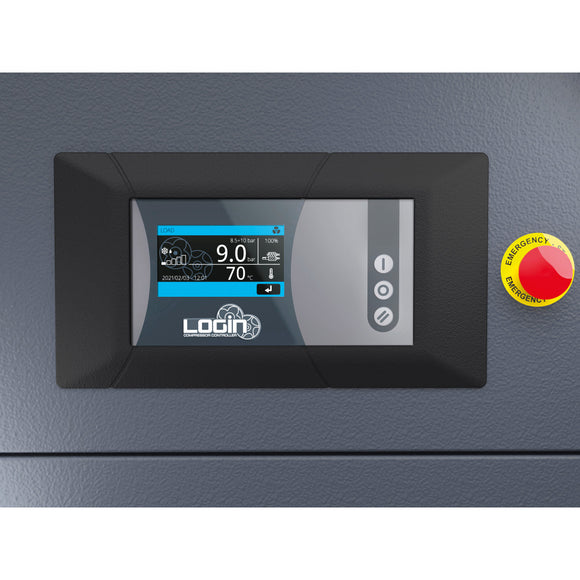

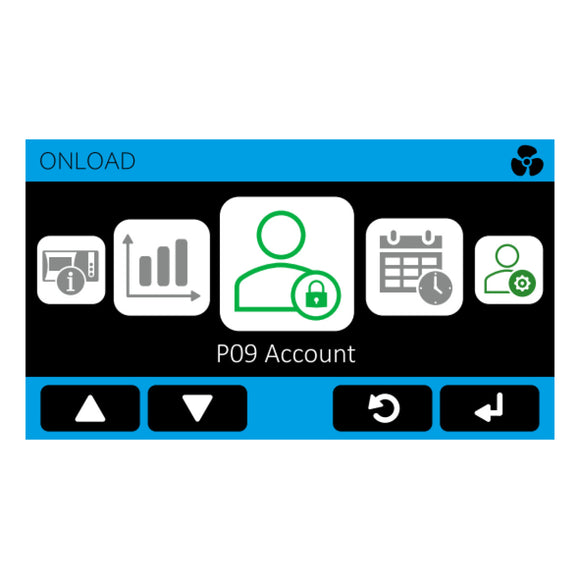

  • Innovative LOGIN control with 4. 3" touch screen for easy operation and full control of all functions. energy efficiency
    • Larger speed/load range

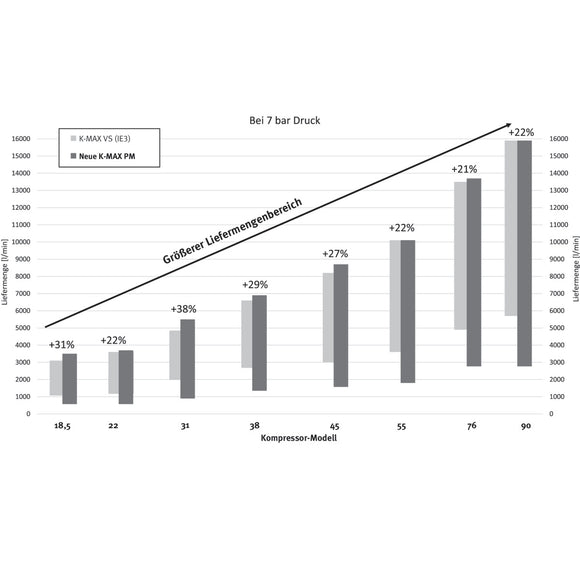

    • Larger delivery volume supply range

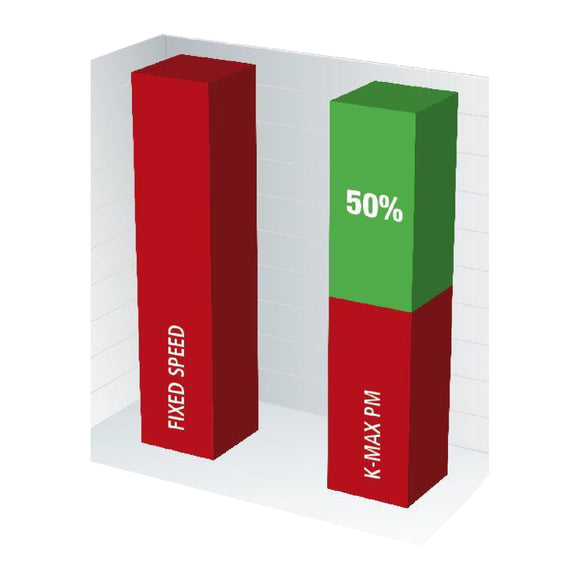

    • Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
    • Very quiet operation - only 64 dB
    Energy saving through frequency control
    • Ideal for frequently changing compressed air consumption
    • Compressor delivery rate adjusts to actual consumption
    • Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
    • Advanced and efficient cutting-edge technology in the smallest possible space


    .
  • Air outlet 1 ¼ "
  • Effective delivery quantity of up to 790 - 3750 l/min
  • Explanation sound pressure level Lp Sound pressure level at a distance of 1 m according to DIN 45635 T 13
  • Filling quantity of oil 15 l
  • Frequency 50 Hz
  • Frequency controlled ✔
  • Height 1370 mm
  • Length 1330 mm
  • Maximum Pressure 9.5 bar
  • Motor efficiency class IE4
  • Motor power (input power) electric motor 22 kW
  • Net weight 590 kg
  • Oil heat exchanger ✔
  • Sound pressure level 63 dB(A)
  • Speed electric motor 3000 min¯¹
  • Star-delta switch ✔
  • Supply voltage 400 V
  • Width 850 mm
