Bench drill OPTIdrill D 17Pro

€761,37 EUR (€619,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3003010 Barcode: 4030635038280

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

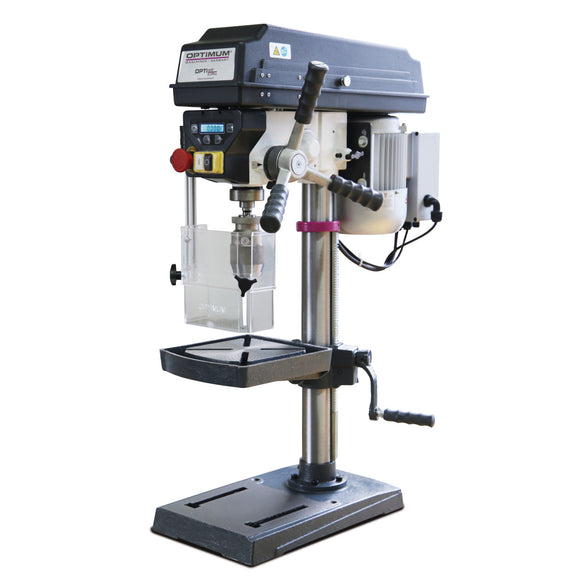

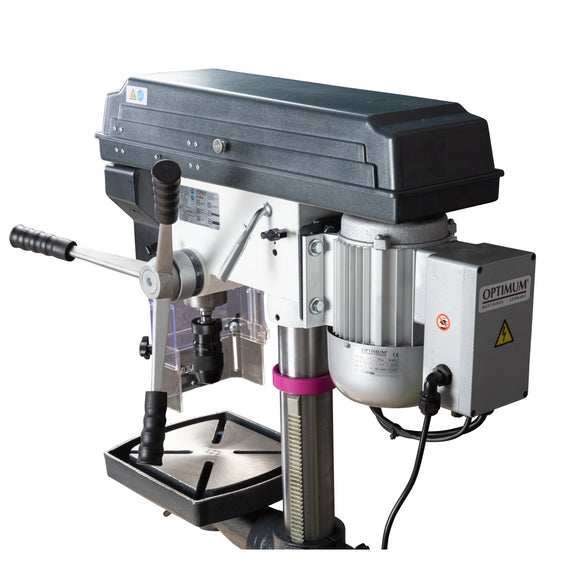

Bench drill OPTIdrill D 17Pro.
  • Industrial engine
  • Easy to use safety switch according to IP 54

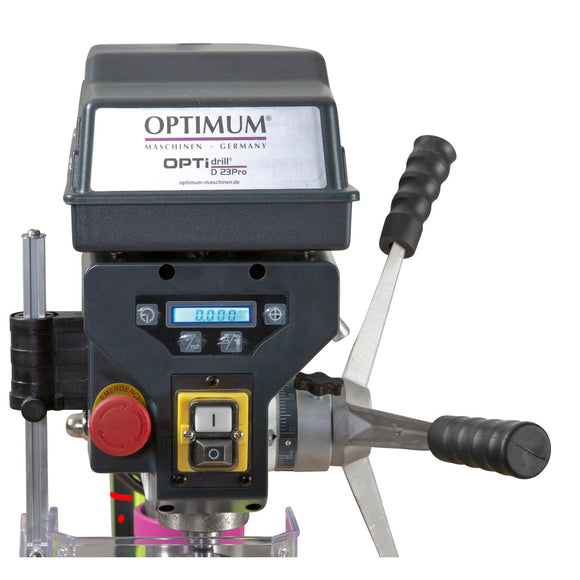

  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity measured less than 0. 02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Digital depth gauge

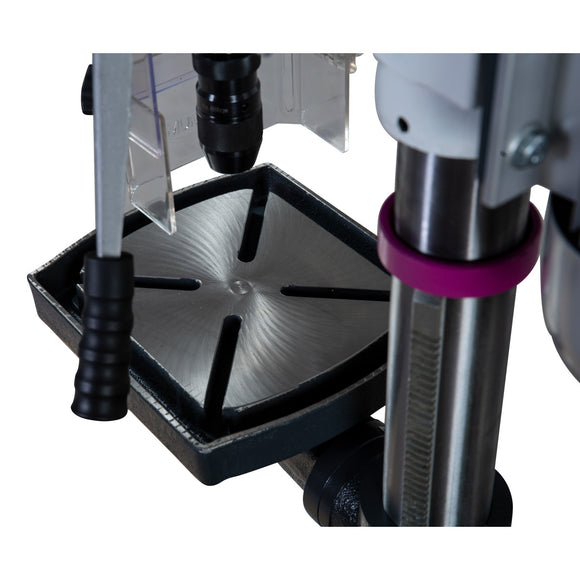

  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

From D 23 Pro

  • GATES quality strap

From D 23 Pro / 400 V

  • Forward / reverse operation

D 33Pro

  • Massive, large base plate with T-slots, strongly ribbed on the back


.
  • 680 - 2700 min¯¹
  • Column diameter 60 mm
  • Continuous drilling performance (steel) 12 mm
  • Drilling performance (steel) 16 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 235 mm
  • Drilling table workspace width 220 mm
  • Frequency 50 Hz
  • Height 840 mm
  • Length 585 mm
  • Machine base workspace length 220 mm
  • Machine base workspace width 230 mm
  • Motor power 0,5 kW
  • Net weight 39,5 kg
  • Number of gears 5
  • Quill stroke 65 mm
  • Reach 152 mm
  • Spindle chuck MT 2
  • Supply voltage 230 V
  • Width 305 mm
  • Keyless chuck 1 - 16 mm
  • Morse cone MK 2 / B16
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Down device Table groove 14 mm / M 12 Down device Table groove 14 mm / M 12 - 0

Down device Table groove 14 mm / M 12

Optimum

€100,86 EUR
Cooling lubricant nebulizer MMC1 Cooling lubricant nebulizer MMC1 - 0

Cooling lubricant nebulizer MMC1

Optimum

€206,64 EUR
Enquire
Keyless drill chuck DKC16 0-16 mm Keyless drill chuck DKC16 0-16 mm - 0

Keyless drill chuck DKC16 0-16 mm

Optimum

€51,66 EUR
Enquire
Twist drill HSS with Morse taper MT 2 Twist drill HSS with Morse taper MT 2 - 0

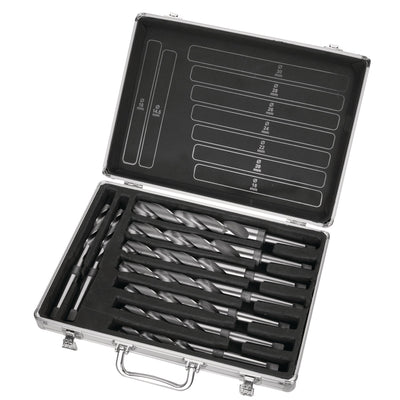

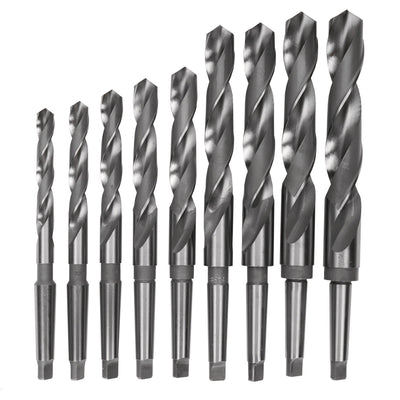

Twist drill HSS with Morse taper MT 2

Optimum

€276,75 EUR
Tapping attachment M5 - M12 / B16 Tapping attachment M5 - M12 / B16 - 0

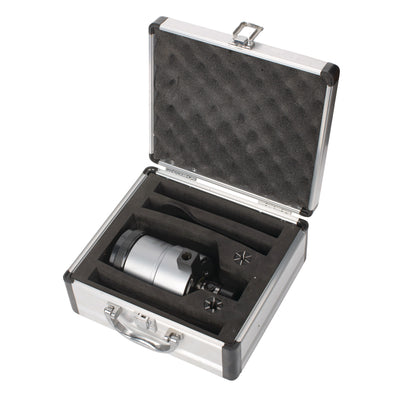

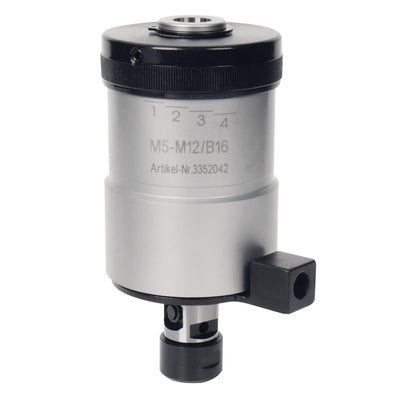

Tapping attachment M5 - M12 / B16
