Bench drill OPTIdrill D 23Pro (400 V)

€1.081,17 EUR

Tax includedShipping calculated at checkout

SKU: 3003020 Barcode: 4030635035937

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

WhatsApp

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

Description Features Delivery contents Shipping

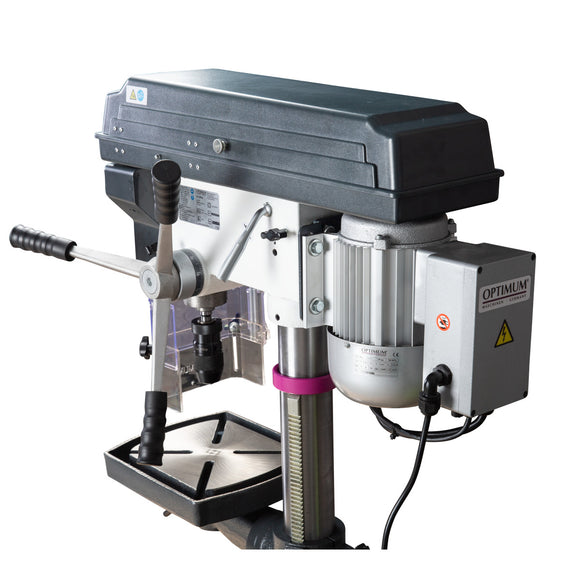

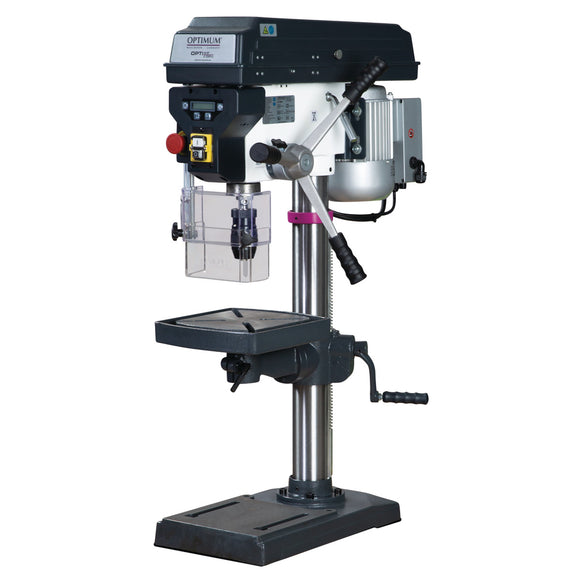

Bench drill OPTIdrill D 23Pro (400 V).
  • Industrial engine
  • Easy to use safety switch according to IP 54

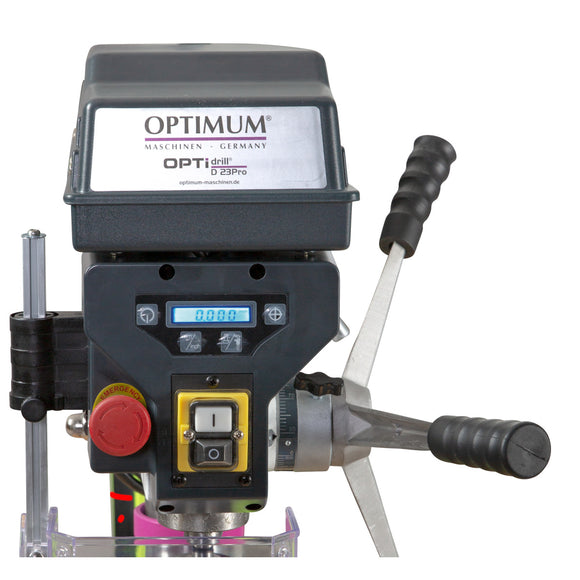

  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity measured less than 0. 02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Digital depth gauge

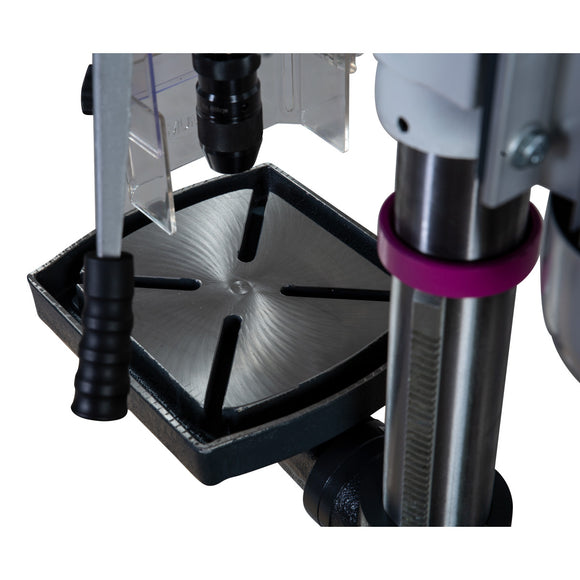

  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

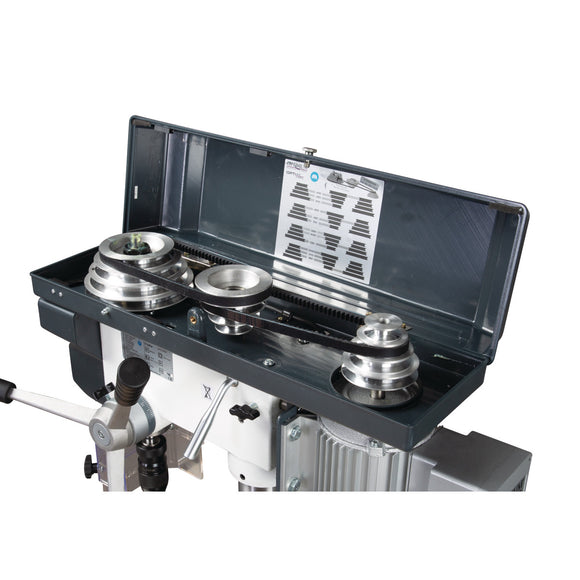

  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

From D 23 Pro

  • GATES quality strap

From D 23 Pro / 400 V

  • Forward / reverse operation

D 33Pro

  • Massive, large base plate with T-slots, strongly ribbed on the back


.
  • 200 - 2440 min¯¹
  • Column diameter 73 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 25 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °

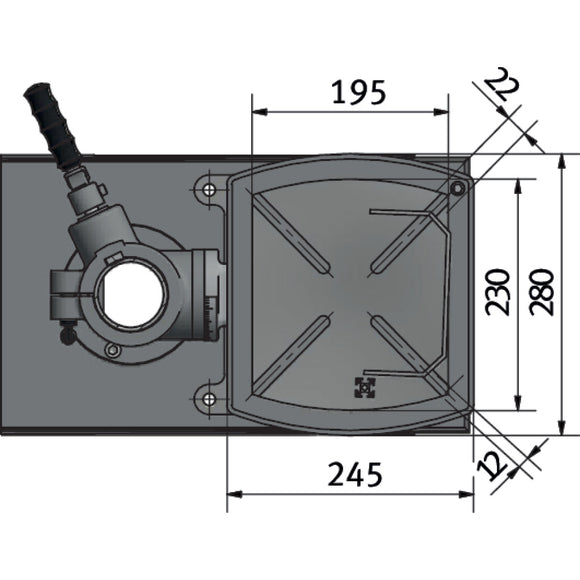

  • Drilling table workspace length 280 mm
  • Drilling table workspace width 245 mm
  • Frequency 50 Hz

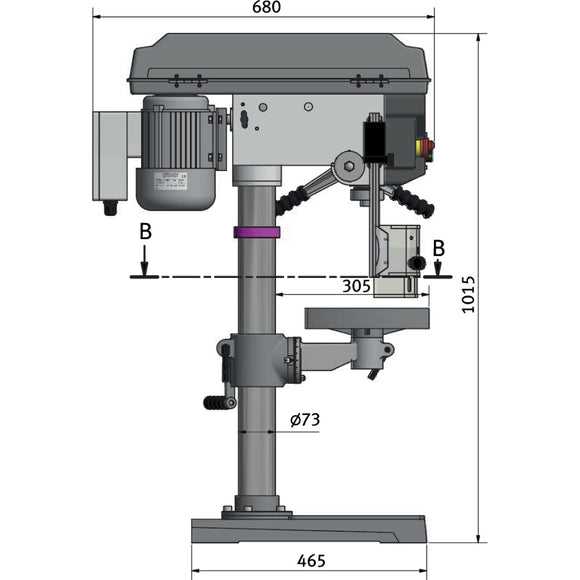

  • Height 1015 mm
  • Length 680 mm

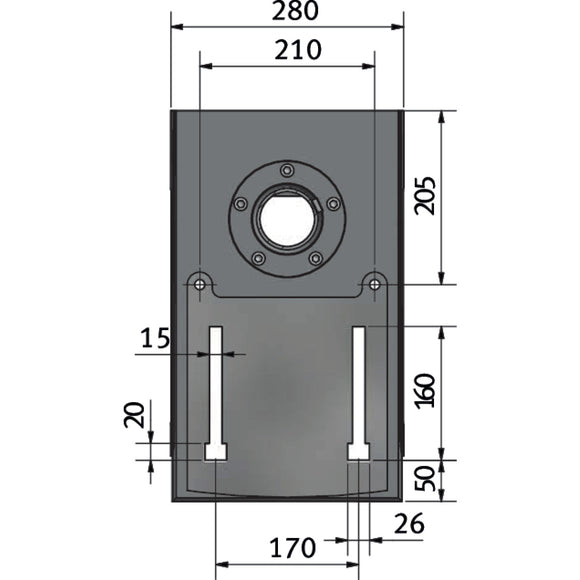

  • Machine base workspace length 240 mm
  • Machine base workspace width 250 mm
  • Motor power 0,75 kW
  • Net weight 63,5 kg
  • Number of gears 12
  • Quill stroke 80 mm
  • Reach 180 mm
  • Spindle chuck MT 2
  • Supply voltage 400 V

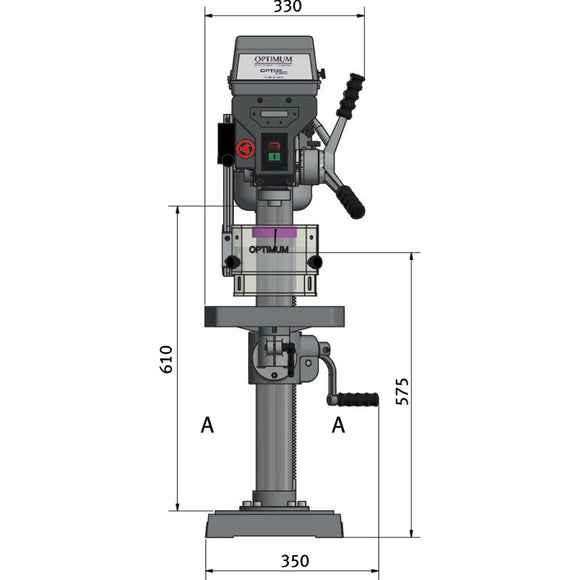

  • Width 350 mm
  • Keyless chuck 1 - 16 mm
  • Morse cone MK 2 / B16
  • T-nuts
