Upright drill OPTIdrill D 33Pro-1
Upright drill OPTIdrill D 33Pro-2
Upright drill OPTIdrill D 33Pro-3
Upright drill OPTIdrill D 33Pro-4
Upright drill OPTIdrill D 33Pro-5
Upright drill OPTIdrill D 33Pro-6
Upright drill OPTIdrill D 33Pro-7
Upright drill OPTIdrill D 33Pro-8

Upright drill OPTIdrill D 33Pro

€1.671,57 EUR (€1.359,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3003040 Barcode: 4030635038303

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

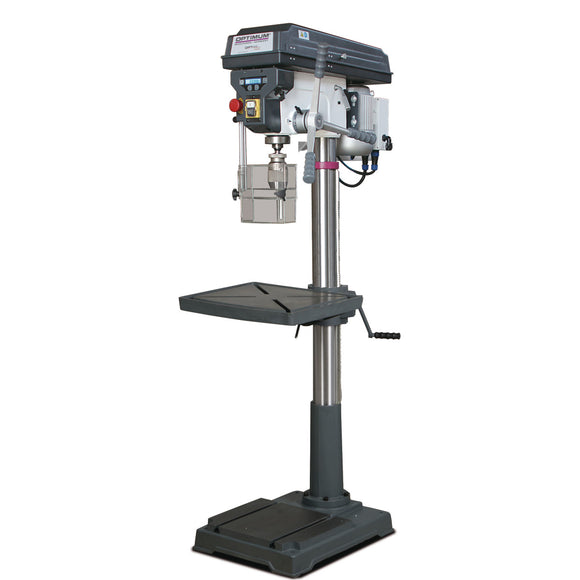

Upright drill OPTIdrill D 33Pro.
  • Industrial engine
  • Easy to use safety switch according to IP 54

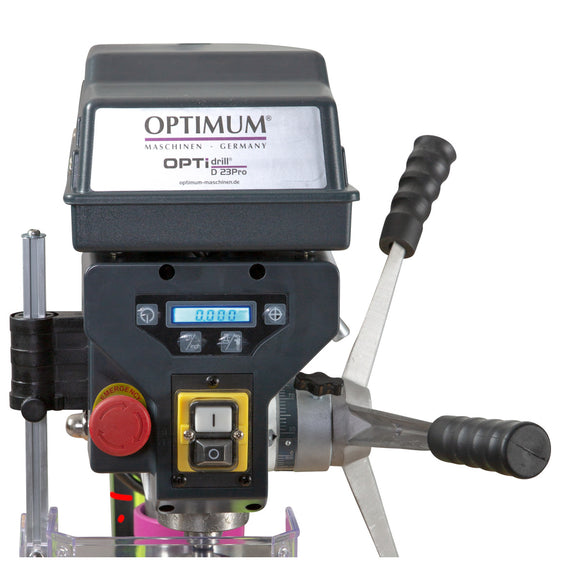

  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity measured less than 0. 02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Digital depth gauge

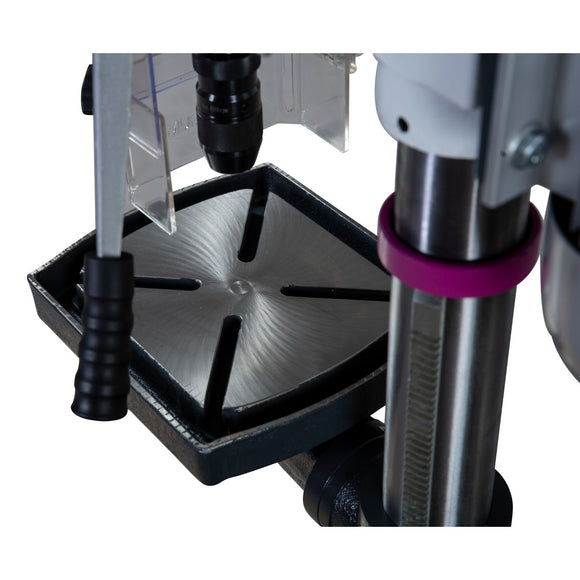

  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

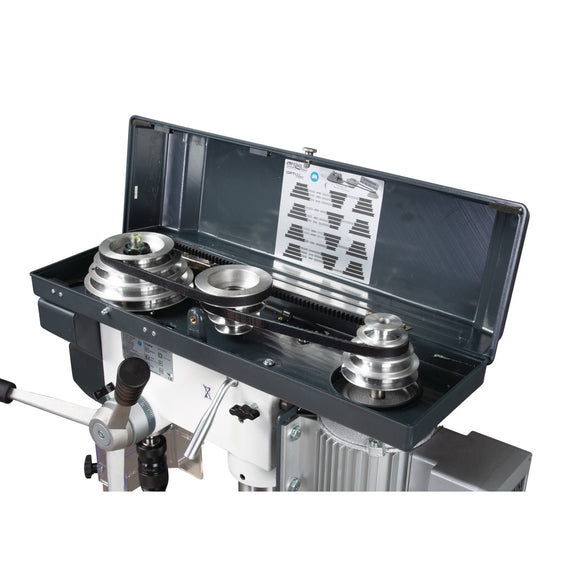

  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

From D 23 Pro

  • GATES quality strap

From D 23 Pro / 400 V

  • Forward / reverse operation

D 33Pro

  • Massive, large base plate with T-slots, strongly ribbed on the back


.
  • 120 - 1810 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 25 mm
  • Drilling performance (steel) 30 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 475 mm
  • Drilling table workspace width 425 mm
  • Frequency 50 Hz
  • Height 1705 mm
  • Length 915 mm
  • Machine base workspace length 410 mm
  • Machine base workspace width 325 mm
  • Motor power 1,1 kW
  • Net weight 137 kg
  • Number of gears 9
  • Quill stroke 120 mm
  • Reach 254 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Width 450 mm
  • Keyless drill chuck 1 - 16 mm
  • Morse taper MK 4/B16
  • T-slots

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
