Bench drill OPTIdrill DX 13V-1
Bench drill OPTIdrill DX 13V-2
Bench drill OPTIdrill DX 13V-3
Bench drill OPTIdrill DX 13V-4
Bench drill OPTIdrill DX 13V-5
Bench drill OPTIdrill DX 13V-6
Bench drill OPTIdrill DX 13V-7
Bench drill OPTIdrill DX 13V-8
Bench drill OPTIdrill DX 13V-9

Bench drill OPTIdrill DX 13V

€1.536,27 EUR (€1.249,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020150 Barcode: 4030635032127

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

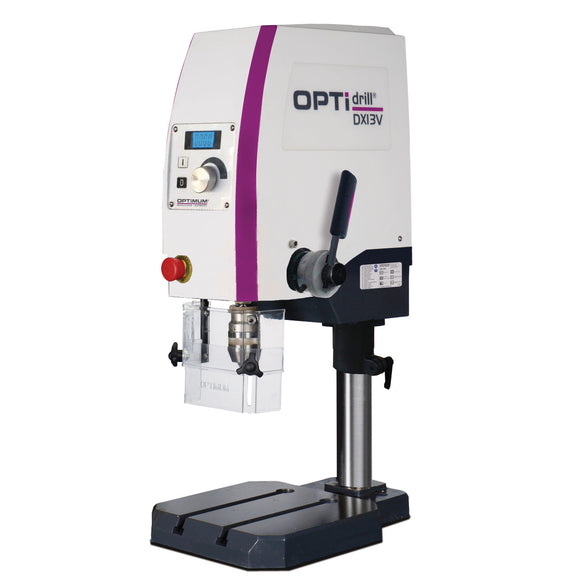

Bench drill OPTIdrill DX 13V.
  • Best power transmission through aluminum pulleys

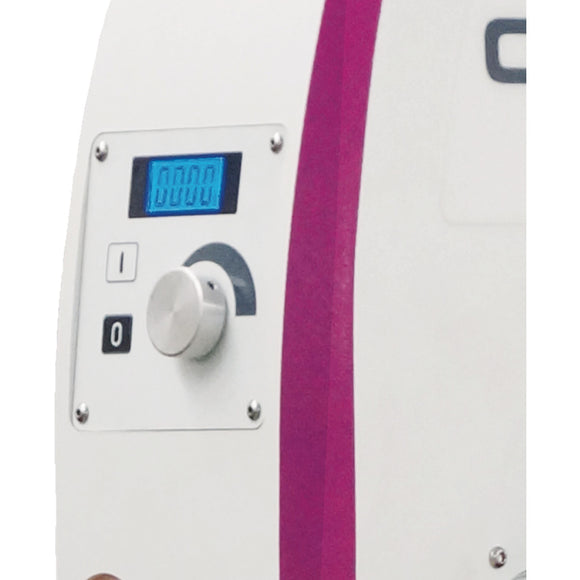

  • Digital speed indicator integrated in the housing, speed control by potentiometer
  • Emergency stop impact switch
  • Drill spindle with precision ball bearings
  • High quality OPTIMUM keyless chuck as standard
  • Guaranteed concentricity accuracy less than 0. 03 mm measured at the drilling spindle

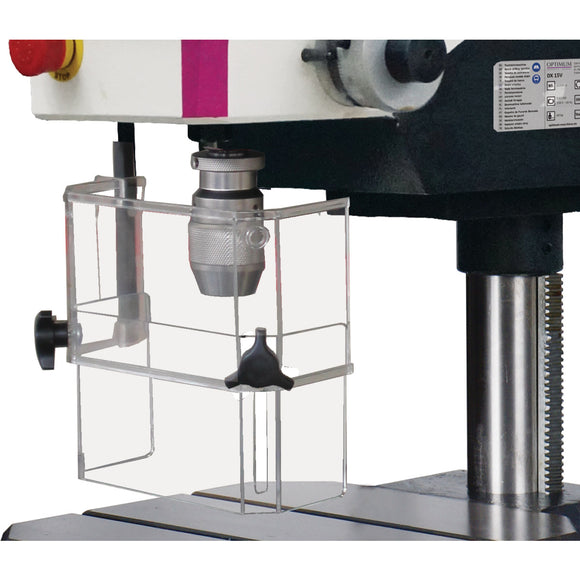

  • Height-adjustable feed guard with microswitch
  • Dirt and water resistant membrane keypad, easy to clean

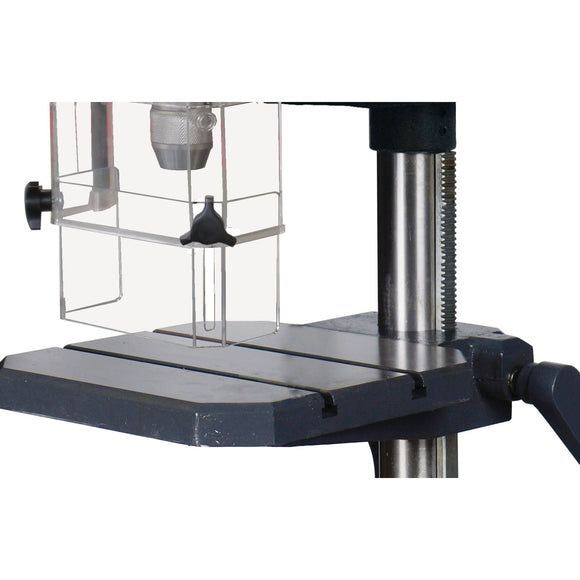

  • Precision machined drill table with parallel T-slots
  • Thick-walled cast-iron column for high power absorption and stability

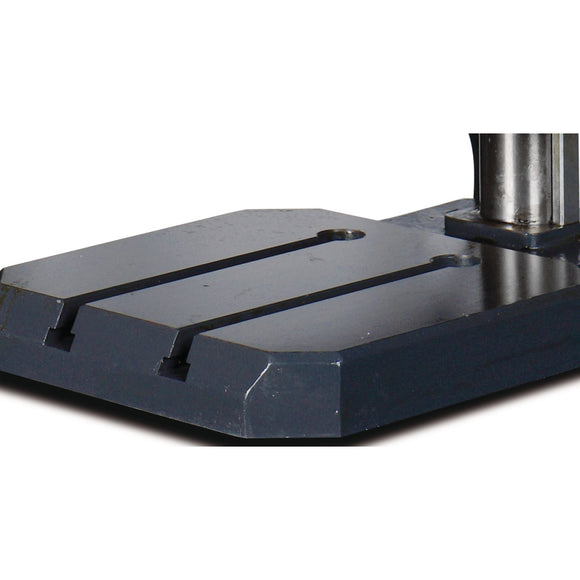

  • Massive base plate, large dimensions, strongly ribbed on the back
  • EMC filter class C2

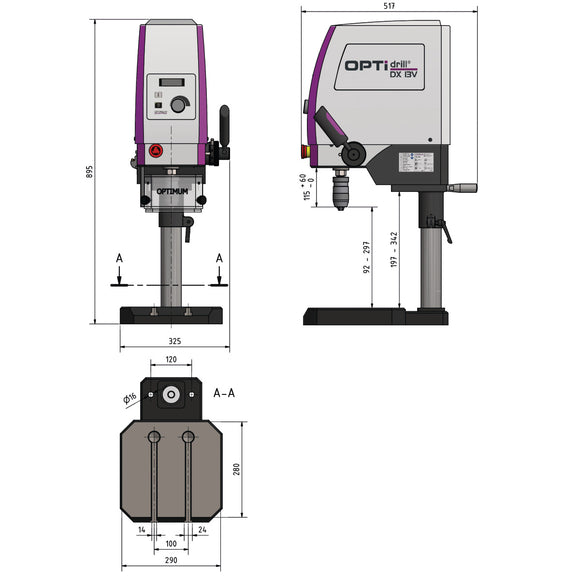

DX 13V

  • Height adjustable drill head


.
  • 100 - 3000 min¯¹
  • Column diameter 60 mm
  • Continuous drilling performance (steel) 11 mm
  • Drilling performance (steel) 13 mm
  • EMV-Class C2
  • Frequency 50 Hz
  • Height 895 mm
  • Length 517 mm
  • Machine base workspace length 280 mm
  • Machine base workspace width 290 mm
  • Net weight 51 kg
  • Quill stroke 60 mm
  • Reach 235 mm
  • Spindle chuck B 16
  • Spindle motor power 0.85 kW
  • Standard DIN EN 55011
  • Supply voltage 230 V
  • Width 325 mm
  • Keyless chuck (1 - 13 mm)

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
