Bench drill OPTIdrill DX 15V

€1.740,45 EUR (€1.415,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020155 Barcode: 4030635033186

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

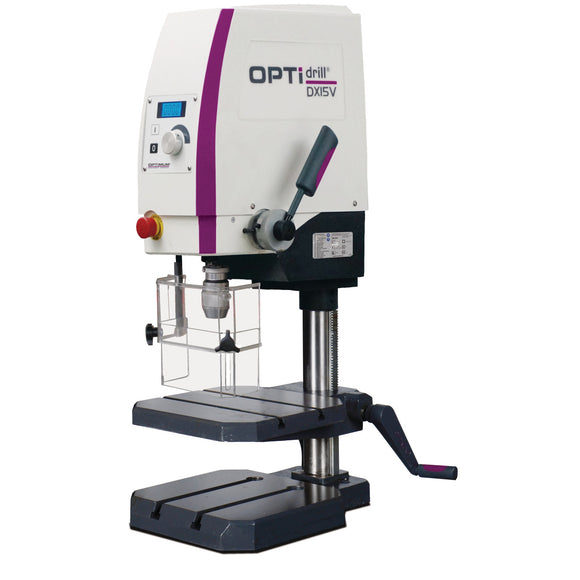

Bench drill OPTIdrill DX 15V.
  • Best power transmission through aluminum pulleys

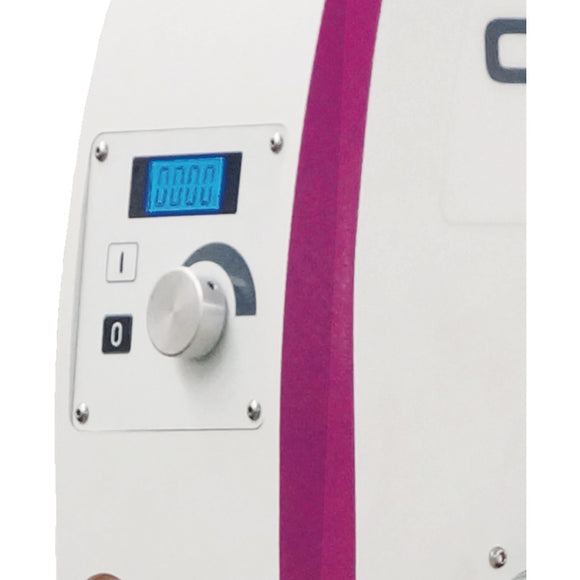

  • Digital speed indicator integrated in the housing, speed control by potentiometer
  • Emergency stop impact switch
  • Drill spindle with precision ball bearings
  • High quality OPTIMUM keyless chuck as standard
  • Guaranteed concentricity accuracy less than 0. 03 mm measured at the drilling spindle

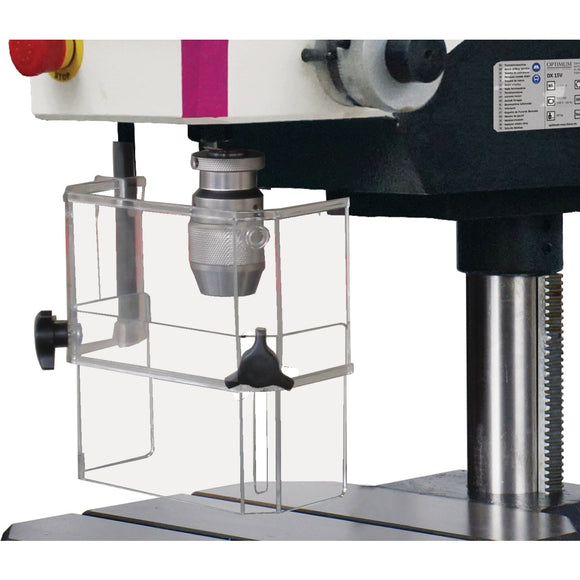

  • Height-adjustable feed guard with microswitch
  • Dirt and water resistant membrane keypad, easy to clean

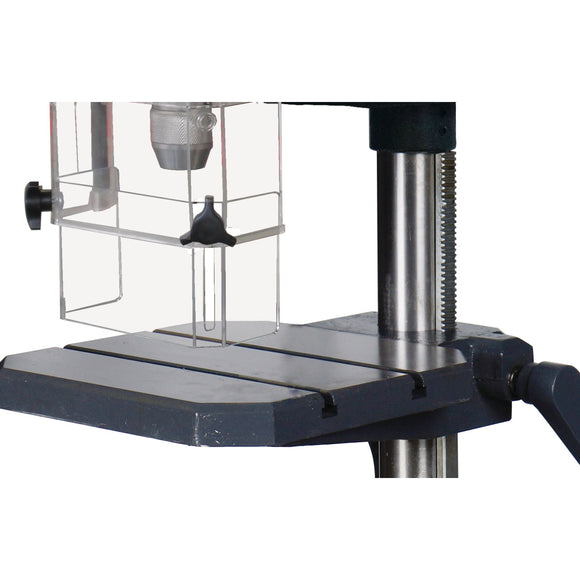

  • Precision machined drill table with parallel T-slots
  • Thick-walled cast-iron column for high power absorption and stability

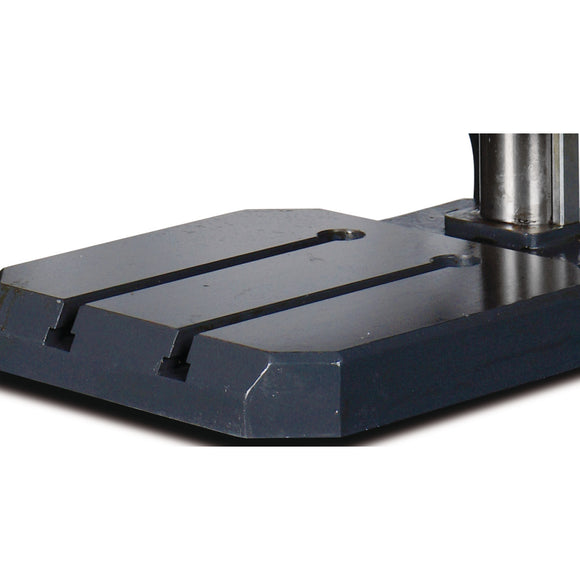

  • Massive base plate, large dimensions, strongly ribbed on the back
  • EMC filter class C2

DX 13V

  • Height adjustable drill head

DX 15V

  • Height adjustment of the drilling table via rack
  • MK – recording


.
  • 100 - 3000 min¯¹
  • Column diameter 60 mm
  • Continuous drilling performance (steel) 12 mm
  • Drilling performance (steel) 15 mm
  • Drilling table workspace length 290 mm
  • Drilling table workspace width 290 mm
  • EMV-Class C2
  • Frequency 50 Hz
  • Height 980 mm
  • Length 425 mm
  • Machine base workspace length 290 mm
  • Machine base workspace width 280 mm
  • Net weight 66 kg
  • Quill stroke 60 mm
  • Reach 235 mm
  • Spindle chuck MT 2
  • Spindle motor power 0.85 kW
  • Standard DIN EN 55011
  • Supply voltage 230 V
  • Width 475 mm
  • Keyless chuck (1 - 13 mm)
  • Taper mandrel for MK2-B16 drill chuck

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

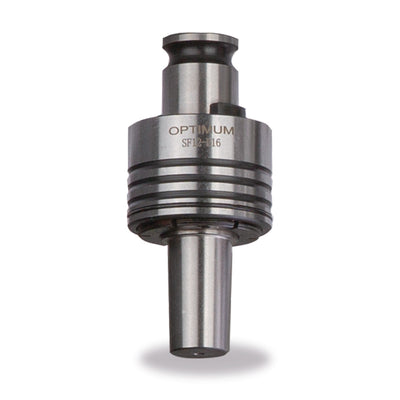

Tapping chuck small THERMDRILL B16 - M3-M12 Tapping chuck small THERMDRILL B16 - M3-M12 - 0

Tapping chuck small THERMDRILL B16 - M3-M12

Optimum

€43,05 EUR
Enquire
Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire
OPTIMUM direct quick-action drill chuck MK 2 1 - 13 mm; up to 8000 min¯¹ OPTIMUM direct quick-action drill chuck MK 2 1 - 13 mm; up to 8000 min¯¹ - 0

OPTIMUM direct quick-action drill chuck MK 2 1 - 13 mm; up to 8000 min¯¹

Optimum

€100,86 EUR
Enquire

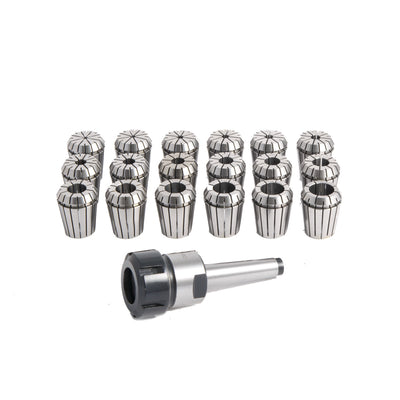

Collet chuck set MK 2 / ER 32 - M10 Collet chuck set MK 2 / ER 32 - M10 - 0
