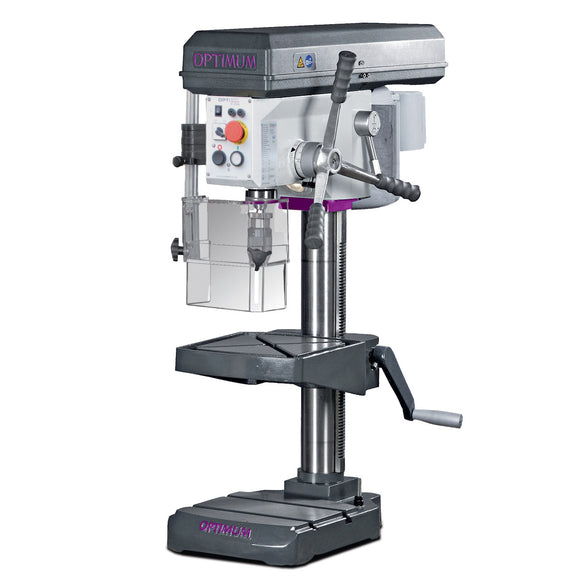

Bench drill OPTIdrill B 24H Special offer set-1
Bench drill OPTIdrill B 24H Special offer set-2
Bench drill OPTIdrill B 24H Special offer set-3
Bench drill OPTIdrill B 24H Special offer set-4

Bench drill OPTIdrill B 24H Special offer set

€2.075,01 EUR (€1.687,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020241SET Barcode: 4030635015243

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Bench drill OPTIdrill B 24H Special offer set.
  • Smooth and powerful industrial electric motor
  • Separate emergency stop impact switch
  • Stable casting column
  • Measurement scale for drilling depth
  • Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
  • Drilling table 360 ​​° rotatable
  • V-belt cover with safety switch
  • V-belt quick-clamping device
  • Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
  • Massive, large base plate with grooves, strongly ribbed on the back
  • By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
  • Guaranteed concentricity measured better than 0. 015 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High-quality OPTIMUM keyless chuck in the standard scope of delivery
  • Large, height-adjustable protective screen with safety switch

belt drive
  • Smooth running thanks to ground multi-tooth driver
  • Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt

machine light
.
  • 350 - 4000 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 24 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 280 mm
  • Drilling table workspace width 300 mm
  • Frequency 50 Hz
  • Height 998 mm
  • Length 665 mm
  • Machine base workspace length 280 mm
  • Machine base workspace width 260 mm
  • Net weight 84 kg
  • Number of gears 7 Steps
  • Number of gears spindle motor 1 Steps
  • Quill stroke 85 mm
  • Reach 165 mm
  • Spindle chuck MT 2
  • Spindle motor power 0,85 kW
  • Supply voltage 230 V
  • Width 434 mm
  • Keyless chuck (1 - 16 mm)
  • Morse taper MK2 / B16
  • T-nuts

Special offer set including BMS 100 machine vice

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Machine vice BMP 100 Machine vice BMP 100 - 0

Machine vice BMP 100

Optimum

€71,34 EUR
Bench drill OPTIdrill B 24H (230V) Bench drill OPTIdrill B 24H (230V) - 0

Bench drill OPTIdrill B 24H (230V)

Optimum

€2.003,67 EUR
Enquire

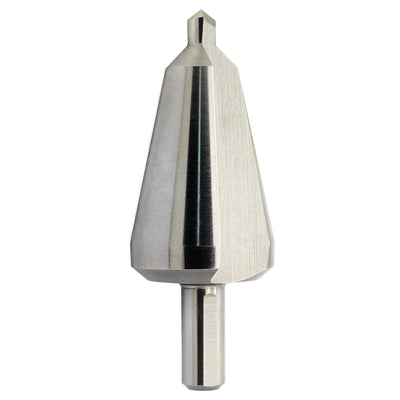

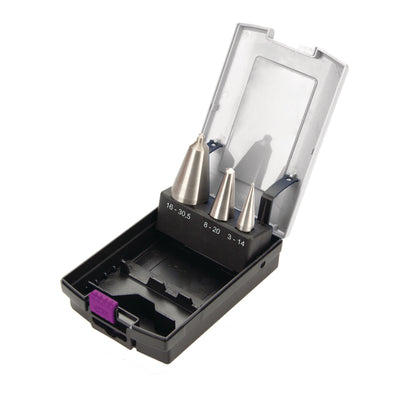

Sheet metal cone drill set HSS, 3-part, 3 - 30.5 mm Sheet metal cone drill set HSS, 3-part, 3 - 30.5 mm - 0
