Bench drill OPTIdrill B 24H (400 V)

€2.003,67 EUR (€1.629,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020243 Barcode: 4030635010729

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

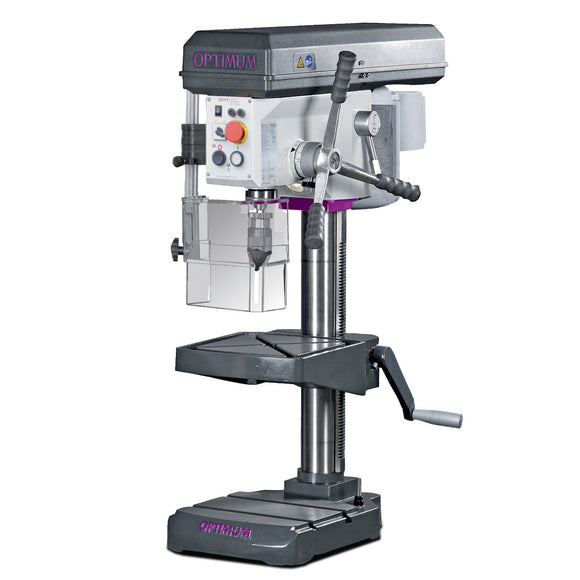

Bench drill OPTIdrill B 24H (400 V).
  • Smooth and powerful industrial electric motor
  • Separate emergency stop impact switch
  • Stable casting column
  • Measurement scale for drilling depth
  • Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
  • Drilling table 360 ​​° rotatable
  • V-belt cover with safety switch

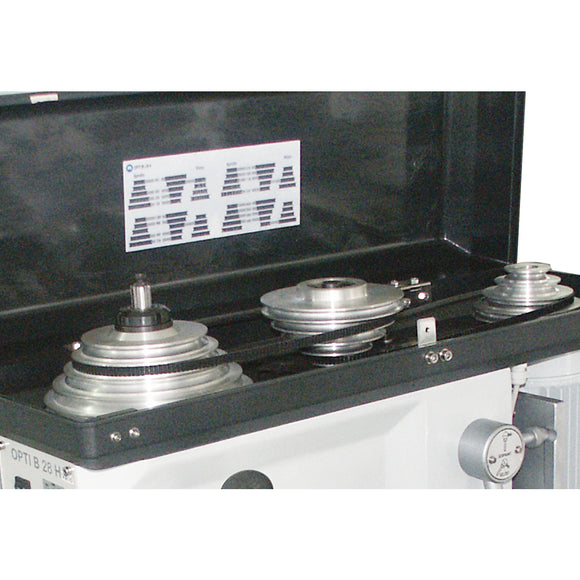

  • V-belt quick-clamping device
  • Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
  • Massive, large base plate with grooves, strongly ribbed on the back
  • By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
  • Guaranteed concentricity measured better than 0. 015 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High-quality OPTIMUM keyless chuck in the standard scope of delivery
  • Large, height-adjustable protective screen with safety switch
from B 24H
  • machine light
from B 24H / 400V
  • Forward / reverse operation


.
  • 350 - 4000 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 24 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 280 mm
  • Drilling table workspace width 300 mm
  • Frequency 50 Hz
  • Height 998 mm
  • Length 665 mm
  • Machine base workspace length 280 mm
  • Machine base workspace width 260 mm
  • Net weight 92 kg
  • Number of gears 7 Steps
  • Number of gears spindle motor 1 Steps
  • Quill stroke 85 mm
  • Reach 165 mm
  • Speed control Manual
  • Spindle chuck MT 2
  • Spindle motor power 0.85 kW
  • Supply voltage 400 V
  • Width 434 mm
  • Keyless chuck (1 - 16 mm)
  • Morse taper MK2 / B16
  • T-nuts
