Bench drill OPTIdrill DH 24FT Special offer set incl. vice

€2.279,19 EUR (€1.853,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020244SET Barcode: 4036351291527

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

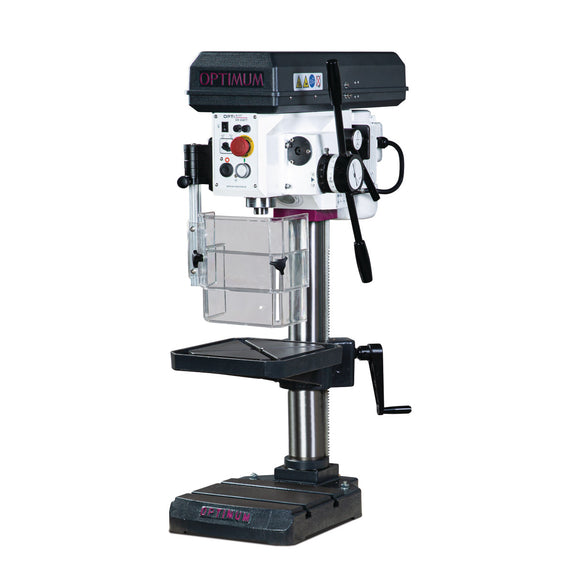

Bench drill OPTIdrill DH 24FT.

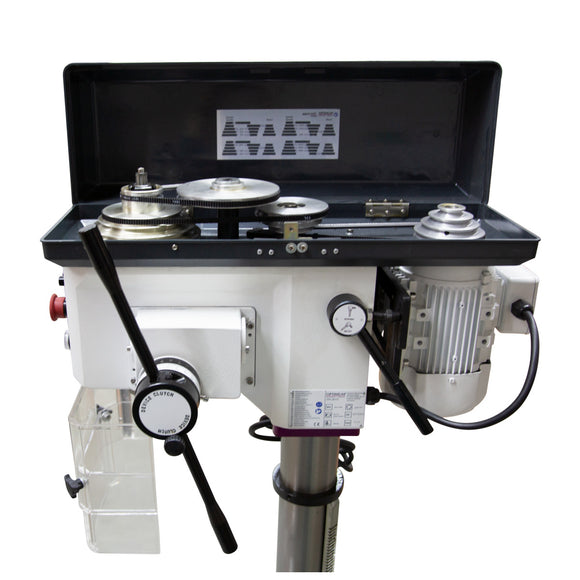

  • Best power transmission through aluminium pulleys in combination with toothed GATES quality wedge belt
  • High smoothness thanks to ground multi-tooth handle
  • Concentricity guaranteed to be less than 0. 015 mm measured in the drill
  • Separate emergency stop switch
  • High-quality OPTIMUM quick-release drill chuck as standard

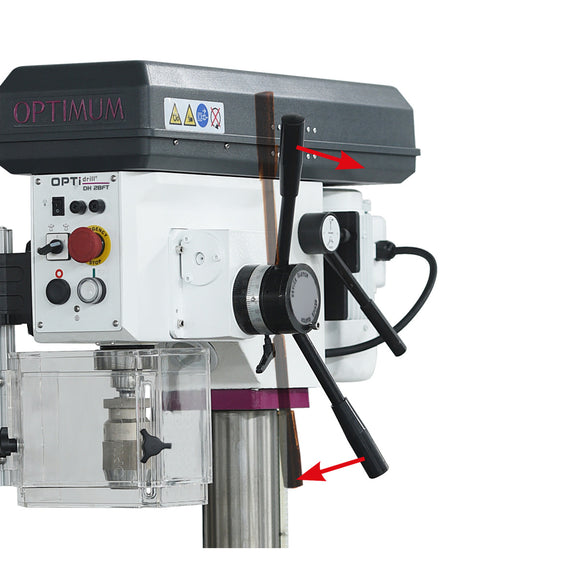

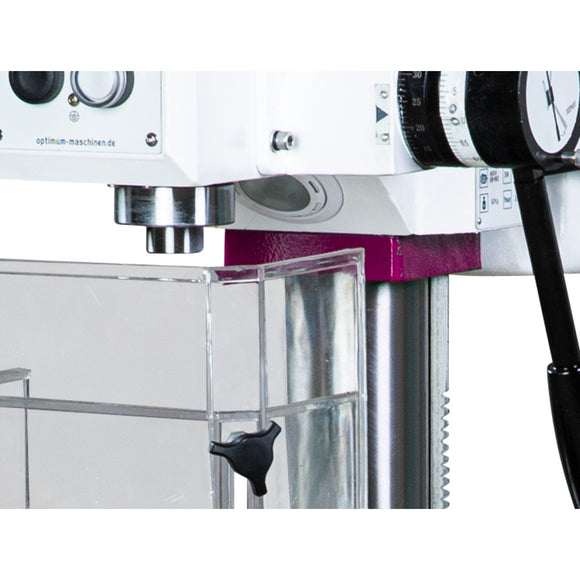

  • Large-sized, height-adjustable protective screen with safety switch for maximum protection of the user
  • Drilling depth stop
  • V-belt cover with safety switch
  • V-belt clamping device
  • Right/Left Run
  • Machine light in the drill head Integrated
  • Precisely worked, stable drilling table with 2 diagonally running T-slots, 360° rotatable and circumferential cooling water channel
  • Thick-walled casting column for high force absorption and stability
  • Massive base plate, large sized and heavily ribbed on the back


.
  • 350 - 3000 min¯¹
  • Column diameter 80 mm
  • Continuous drilling performance (steel) 20 mm
  • Drilling performance (steel) 24 mm
  • Drilling table workspace length 280 mm
  • Drilling table workspace width 300 mm
  • Frequency 50 Hz
  • Height 998 mm
  • Length 665 mm
  • Machine base workspace length 280 mm
  • Machine base workspace width 360 mm
  • Motor power 0,85 kW
  • Net weight 92 kg
  • Number of gears 6 Steps
  • Quill stroke 85 mm
  • Reach 164 mm
  • Spindle chuck MT 2
  • Supply voltage 400 V
  • Width 434 mm
  • Quick-release drill chuck 1 - 16 mm
  • Morsekonus
  • T-Nutensteine
  • Vice BMP 100
