Bench drill OPTIdrill DH 28FT Special offer set incl. vice-1
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-2
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-3
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-4
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-5
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-6
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-7
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-8
Bench drill OPTIdrill DH 28FT Special offer set incl. vice-9

Bench drill OPTIdrill DH 28FT Special offer set incl. vice

€2.571,93 EUR (€2.091,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020260SET Barcode: 4036351280415

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

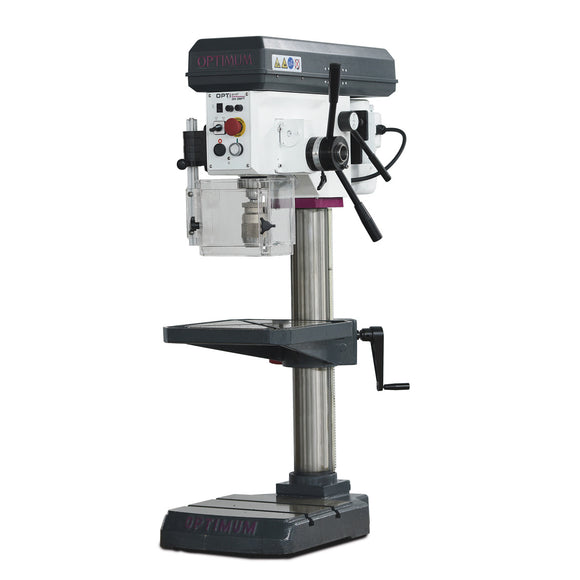

Bench drill OPTIdrill DH 28FT.
  • Powerful brushless drive with particularly smooth running and high performance with almost constant torque over the entire speed range

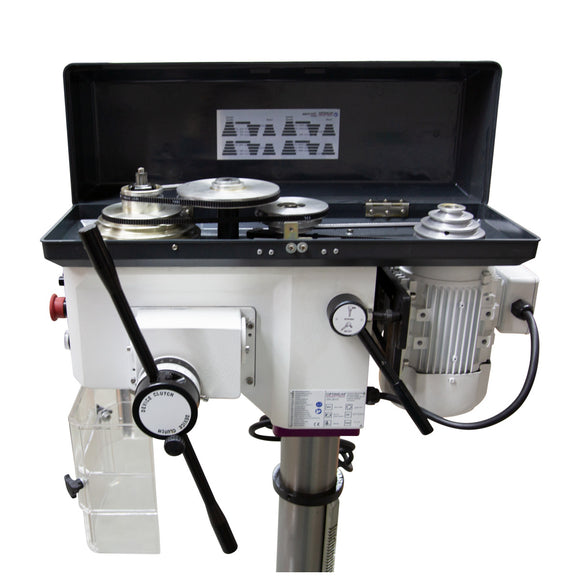

  • Best power transmission thanks to aluminum pulleys in conjunction with toothed GATES quality V-belt
  • Very smooth running thanks to ground multi-tooth driver
  • Guaranteed concentricity of less than 0. 015 mm measured in the drill sleeve
  • Separate emergency stop switch
  • High-quality OPTIMUM quick-action drill chuck as standard

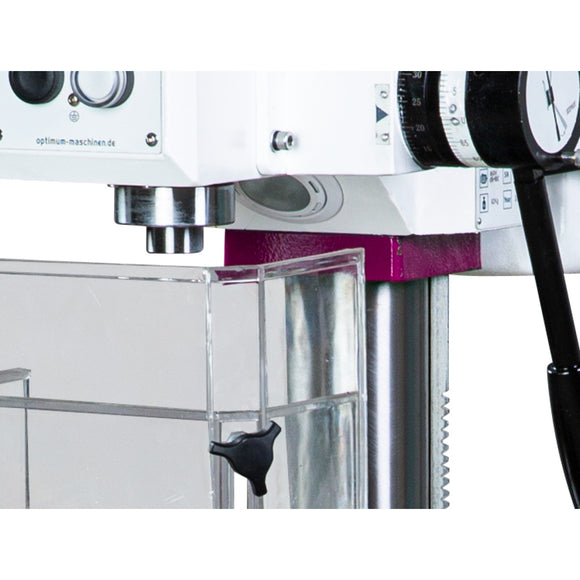

  • Large, height-adjustable protective screen with safety switch for maximum user protection
  • Drilling depth stop
  • V-belt cover with safety switch
  • V-belt tensioning device
  • Right/left rotation
  • Machine light integrated in the drill head
  • Precisely machined, stable drill table with 2 diagonal T-slots, 360° rotatable and all-round cooling water channel
  • Thick-walled cast column for high force absorption and stability
  • Solid base plate, large dimensions and heavily ribbed on the back


.
  • 120 - 3000 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 24 mm
  • Drilling performance (steel) 28 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 340 mm
  • Drilling table workspace width 360 mm
  • Frequency 50 Hz
  • Height 1150 mm
  • Length 715 mm
  • Machine base workspace length 320 mm
  • Machine base workspace width 320 mm
  • Motor power 0,85 kW
  • Net weight 132 kg
  • Number of gears 12 Steps
  • Quill stroke 105 mm
  • Reach 200 mm
  • Spindle chuck MT 3
  • Supply voltage 400 V
  • Width 455 mm
  • Quick-release drill chuck 1 - 16 mm
  • Morsekonus
  • T-Nutensteine

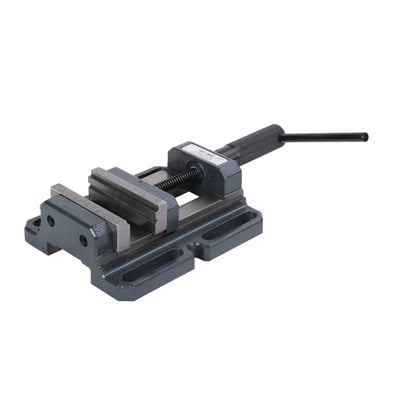

  • Vice BMP 130

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
