Upright drill OPTIdrill DH 28FS

€2.699,85 EUR (€2.195,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020284 Barcode: 4030635040641

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

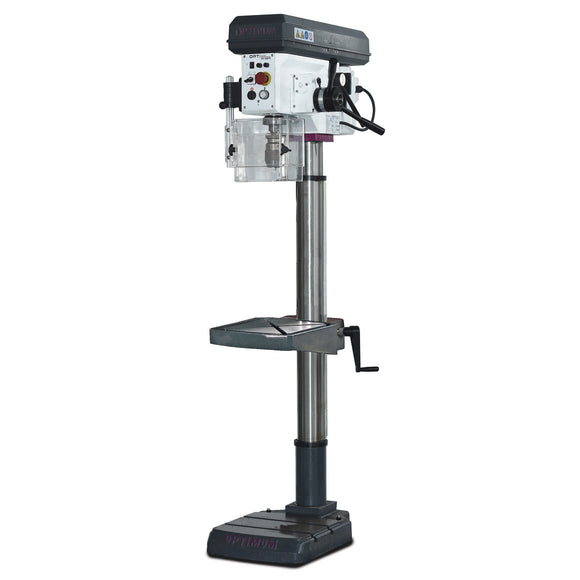

Upright drill OPTIdrill DH 28FS.
  • Powerful brushless drive with particularly smooth running and high performance with almost constant torque over the entire speed range

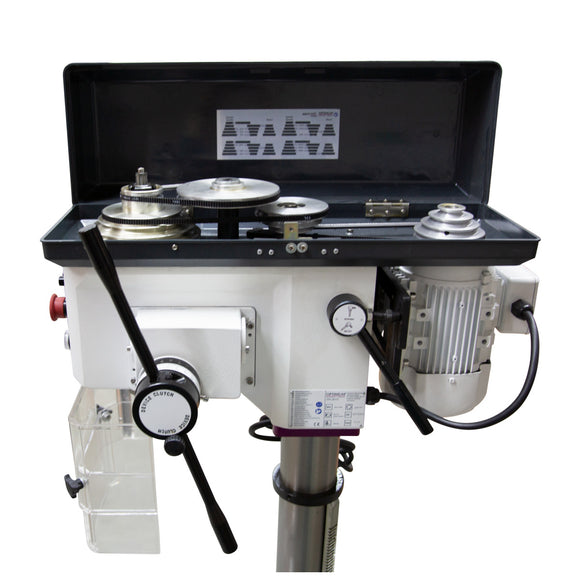

  • Best power transmission thanks to aluminum pulleys in conjunction with toothed GATES quality V-belt
  • Smooth running thanks to ground multi-tooth driver
  • Guaranteed concentricity of less than 0. 015 mm measured in the drill sleeve
  • Separate emergency stop switch
  • High-quality OPTIMUM quick-action drill chuck as standard

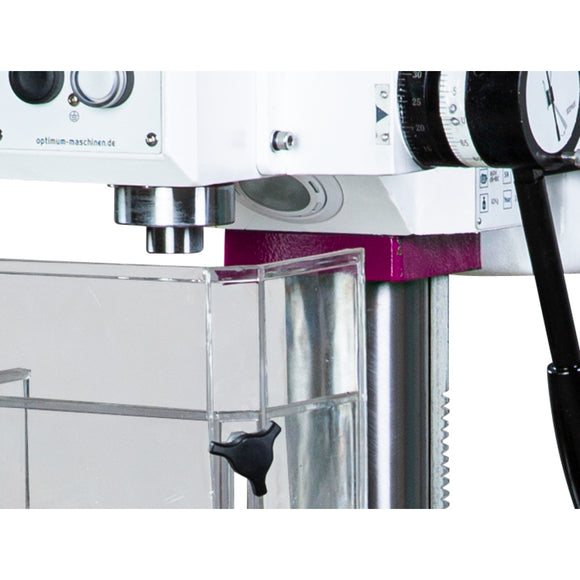

  • Large, height-adjustable protective screen with safety switch for maximum user protection
  • Drilling depth stop

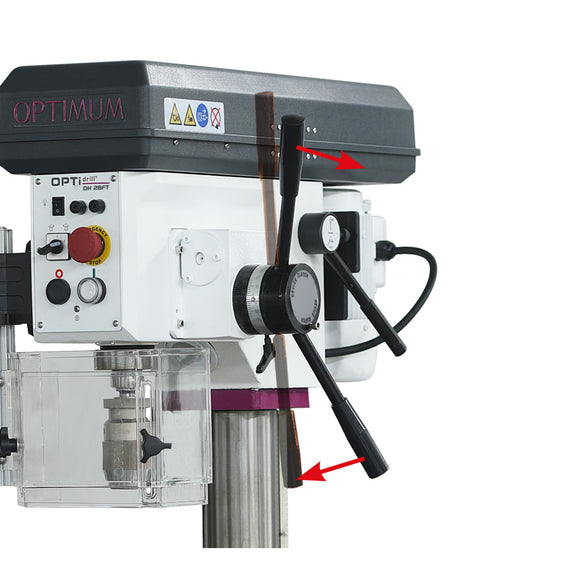

  • V-belt cover with safety switch
  • V-belt tensioning device
  • Right/left rotation

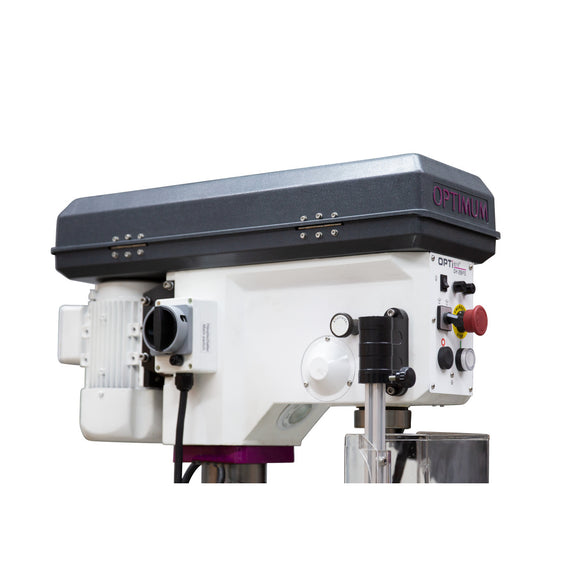

  • Machine light integrated in the drill head
  • Precisely machined, stable drill table with 2 diagonal T-slots, 360° rotatable and all-round cooling water channel
  • Thick-walled cast column for high force absorption and stability
  • Solid base plate, large dimensions and heavily ribbed on the back


.
  • 120 - 3000 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 24 mm
  • Drilling performance (steel) 28 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 340 mm
  • Drilling table workspace width 360 mm
  • Frequency 50 Hz

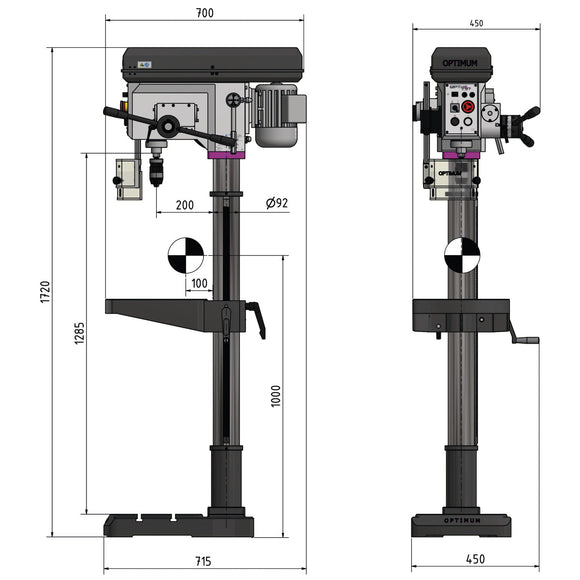

  • Height 1720 mm
  • Length 715 mm
  • Machine base workspace length 320 mm
  • Machine base workspace width 320 mm
  • Motor power 0,85 kW
  • Net weight 146 kg
  • Number of gears 12 Steps
  • Quill stroke 105 mm
  • Reach 200 mm
  • Spindle chuck MT 3
  • Supply voltage 400 V
  • Width 450 mm
  • Quick-release drill chuck 1 - 16 mm
  • Morsekonus
  • T-Nutensteine
