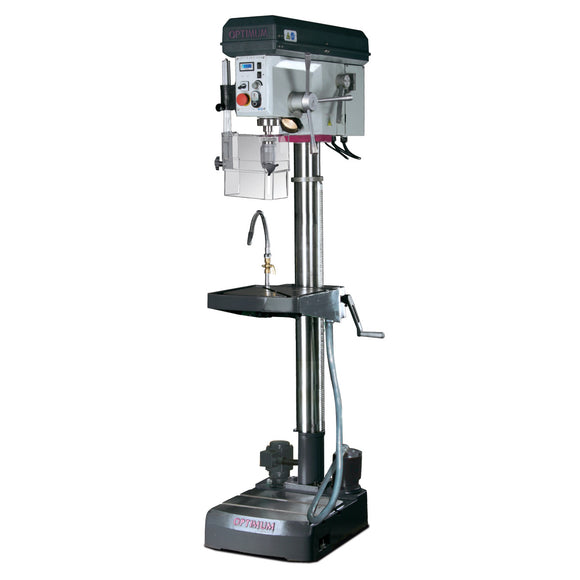

Upright drill OPTIdrill B 28HV

• 35 - 5600 min¯¹
• Column diameter 92 mm
• Continuous drilling performance (steel) 24 mm
• Coolant pump drive motor output 40 W
• Drilling performance (steel) 28 mm
• Drilling table load bearing capacity 50 kg
• Drilling table rotation 360 °
• Drilling table workspace length 340 mm
• Drilling table workspace width 360 mm
• EMV-Class C3
• Frequency 50 Hz
• Height 1755 mm
• Length 701 mm
• Machine base workspace length 320 mm
• Machine base workspace width 320 mm
• Net weight 166 kg
• Number of gears 12 Steps
• Quill stroke 105 mm
• Reach 200 mm
• Spindle chuck MT 3
• Standard DIN EN 55011
• Supply voltage 230 V
• Total rated value 1,5 kW
• Width 474 mm

• Optimum quality keyless chuck (1 - 16 mm)
• Morse cone MK 3 / B16
• T-nuts
