Upright drill OPTIdrill B 34H-1
Upright drill OPTIdrill B 34H-2
Upright drill OPTIdrill B 34H-3
Upright drill OPTIdrill B 34H-4
Upright drill OPTIdrill B 34H-5

Upright drill OPTIdrill B 34H

€3.897,87 EUR (€3.169,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020333 Barcode: 4030635008146

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

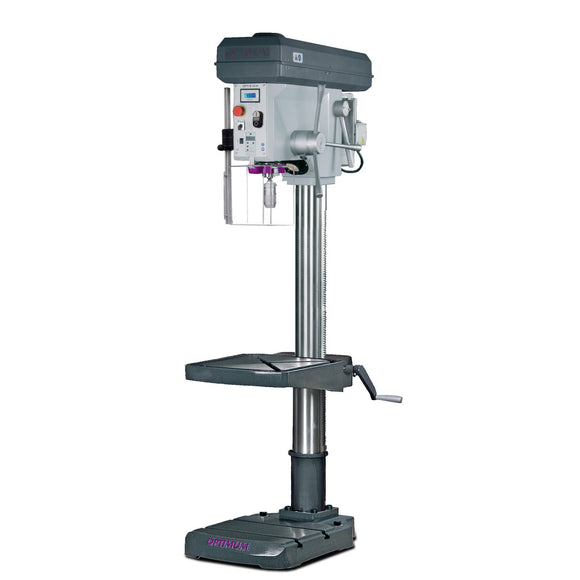

Upright drill OPTIdrill B 34H.
  • Smooth and powerful industrial electric motor
  • Separate emergency stop impact switch
  • Stable casting column
  • depth stop
  • Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
  • Drilling table 360 ​​° rotatable
  • V-belt cover with safety switch

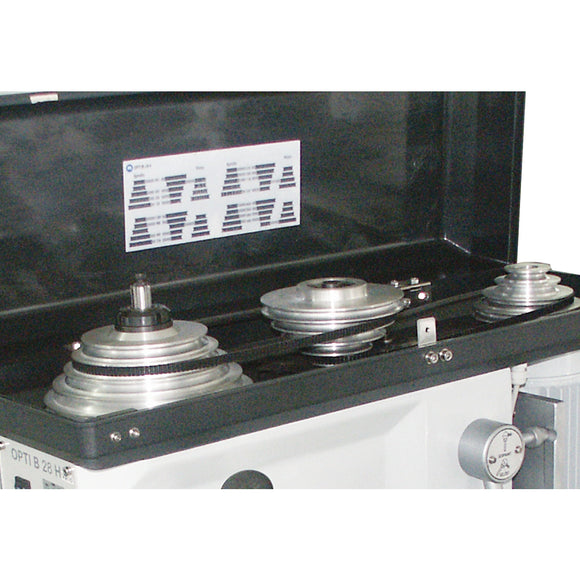

  • V-belt quick-clamping device
  • Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
  • Massive, large base plate with grooves, strongly ribbed on the back
  • By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
  • Guaranteed concentricity measured better than 0. 015 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High-quality OPTIMUM keyless chuck in the standard scope of delivery
  • Large, height-adjustable protective screen with safety switch
from B 24H
  • machine light
from B 24H / 400V
  • Forward / reverse operation
from B 28H
  • Easy tool change through integrated expeller
  • Quillons made of steel
B 34H
  • Digital depth gauge
  • Digital speed display


.
  • 145 - 4800 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 26 mm
  • Drilling performance (steel) 34 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 420 mm
  • Drilling table workspace width 400 mm
  • Frequency 50 Hz
  • Height 1895 mm
  • Length 918 mm
  • Machine base workspace length 390 mm
  • Machine base workspace width 390 mm
  • Net weight 260 kg
  • Number of gears 2 x 9 Steps
  • Number of gears spindle motor 2 Steps
  • Quill stroke 160 mm
  • Reach 285 mm
  • Spindle chuck MT 4
  • Spindle motor power 1.50 / 2.20 kW
  • Supply voltage 400 V
  • Width 585 mm
  • Keyless chuck (1 - 16 mm)
  • Morse taper MK4 / B16
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
