Upright drill OPTIdrill DH 40BV

€5.398,47 EUR (€4.389,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020450 Barcode: 4030635027161

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

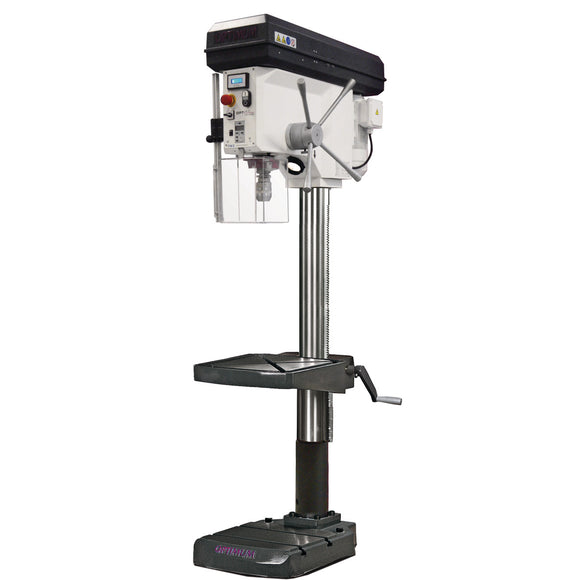

Upright drill OPTIdrill DH 40BV.
  • Smooth and powerful electric motor
  • Two speed levels
  • Forward / reverse operation

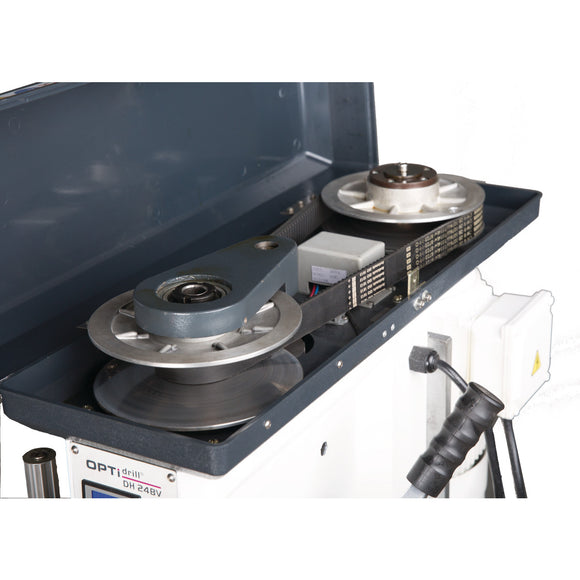

  • V-belt cover with safety switch
  • Digital speed indicator integrated in the housing
  • Concentricity guaranteed less than 0. 015 mm measured in quill
  • Height-adjustable feed guard with microswitch for the utmost protection of the user

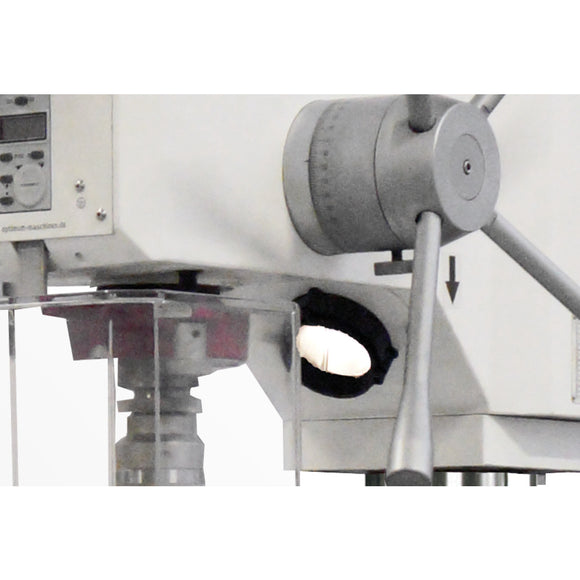

  • Machine light integrated in the drill head
  • Drill spindle with precision ball bearing
  • High quality keyless chuck as standard
  • Precision machined drilling table with diagonally running T-slots, 360 ° rotatable with circulating cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions heavily ribbed on the back
  • Base plate usable by pivoting away the drilling table as a work surface for particularly high workpieces
From DH 28BV
  • Easy tool change through integrated expeller
  • Quillons made of steel
DH 40BV
  • Digital depth gauge
  • Countershaft transmission allows a much higher torque


.
  • 150 - 2000 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 32 mm
  • Drilling performance (steel) 40 mm
  • Drilling table rotation 360 °
  • Drilling table workspace length 420 mm
  • Drilling table workspace width 400 mm
  • Frequency 50 Hz
  • Height 1895 mm
  • Length 920 mm
  • Machine base workspace length 390 mm
  • Machine base workspace width 400 mm
  • Net weight 275 kg
  • Number of gears 2 Steps
  • Number of gears spindle motor 2 Steps
  • Quill stroke 160 mm
  • Reach 285 mm
  • Speed control Manual
  • Spindle chuck MT 4
  • Spindle motor power 1.50 / 2.20 kW
  • Supply voltage 400 V
  • Width 680 mm
  • Optimum quality keyless chuck (1 - 16 mm)
  • Morse cone MK 4 / B16
  • T-nuts
