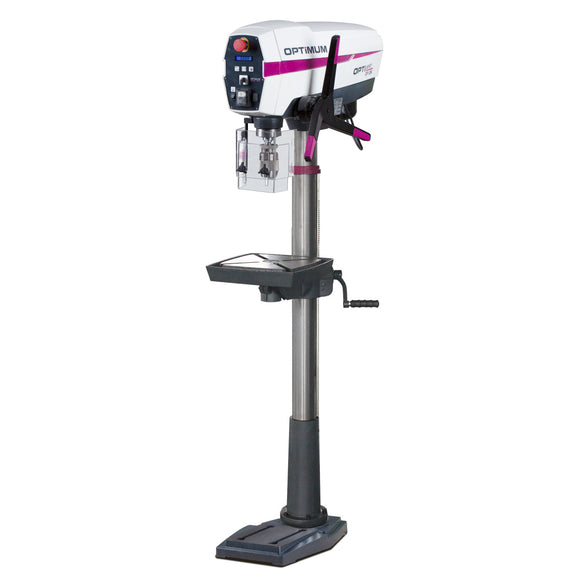

Upright drill OPTIdrill DP 26-F (230 V)

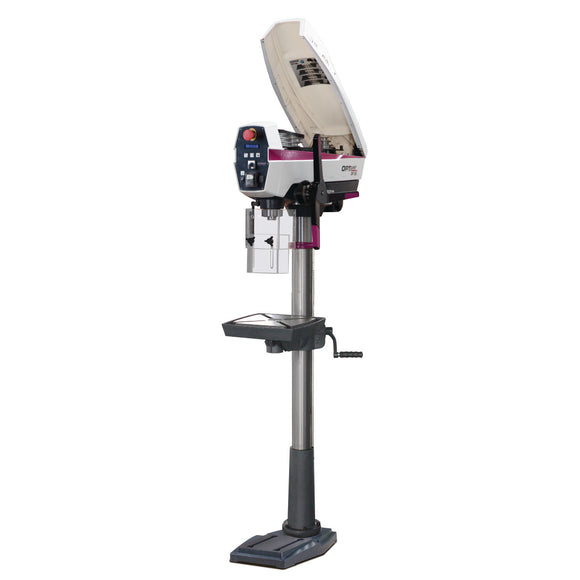

The Optimum OPTIdrill DP 26-F is a heavy-duty 230 V upright drill with a digital depth gauge, an integrated LED machine light and a quiet spindle design. The industrial motor and stable T-slot drilling table with a circulating cooling water channel keep workpieces secure and holes repeatable, while the separate emergency stop gives you quick, safe shutdown, so you avoid depth errors, poor visibility and noisy, tiring drilling.

Key features

  • Heavy-duty design

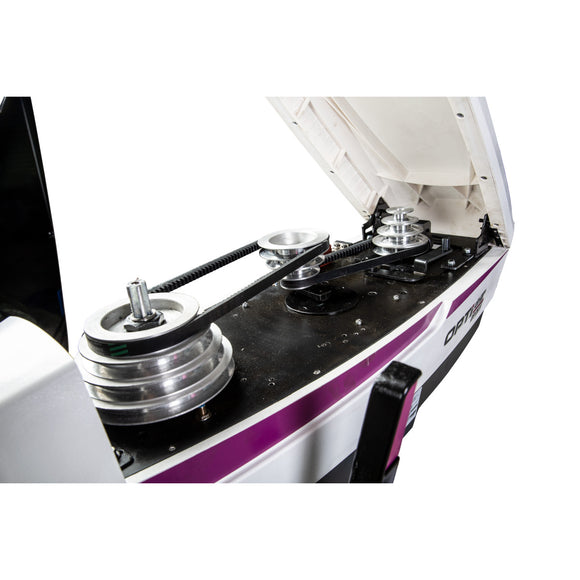

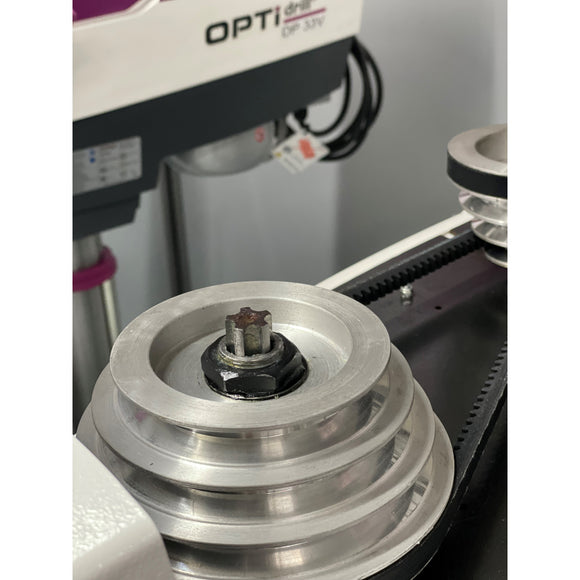

  • Very quiet running thanks to the new spindle design
  • Industrial motor

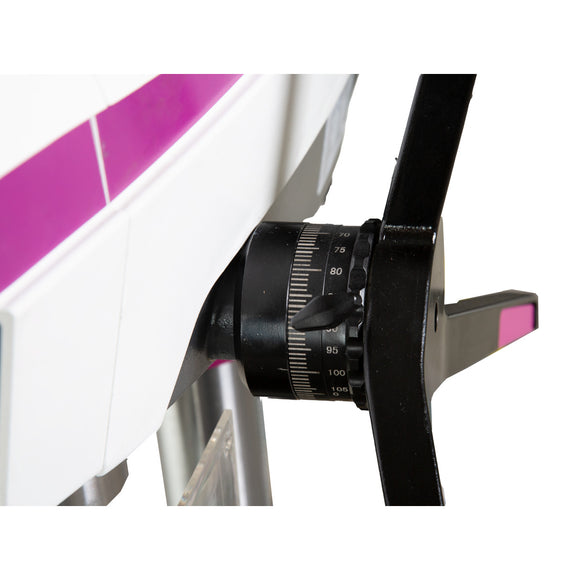

  • Digital depth gauge for repeatable hole depths
  • LED machine light integrated in the drill head

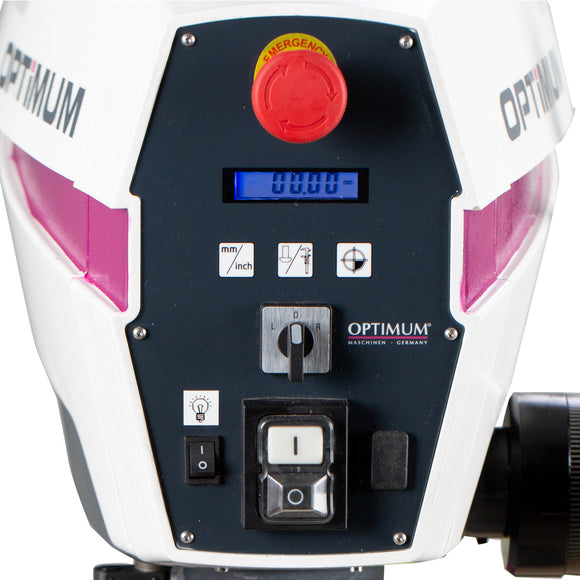

  • Separate emergency stop pushbutton
  • Precisely machined, stable drilling table with diagonal T-slots and a circulating cooling water channel

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 25 mm
  • Continuous drilling capacity in steel: 20 mm
  • Quill stroke: 95 mm
  • Reach: 209 mm
  • Column diameter: 80 mm
  • Spindle mount: MT 3

Speed and drive

  • Speed range: 200 - 2440 min⁻¹
  • Number of speeds: 12
  • Motor power: 0.75 kW
  • Supply voltage: 400 V, 50 Hz

Drilling table

  • Table tilt angle: 45°
  • Table rotation: 360°

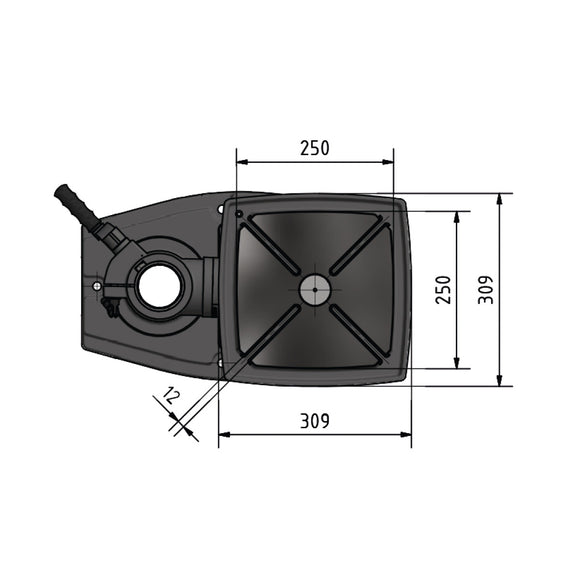

  • Table working area: 308 × 308 mm
  • Table load capacity: 45 kg

Machine base

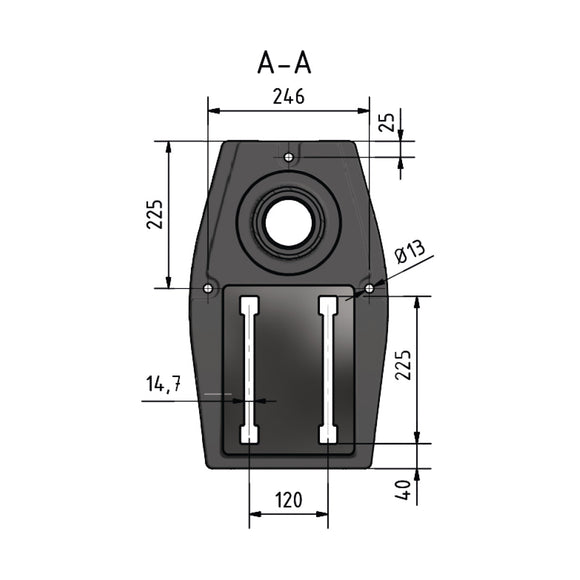

  • Base working area: 202 × 265 mm

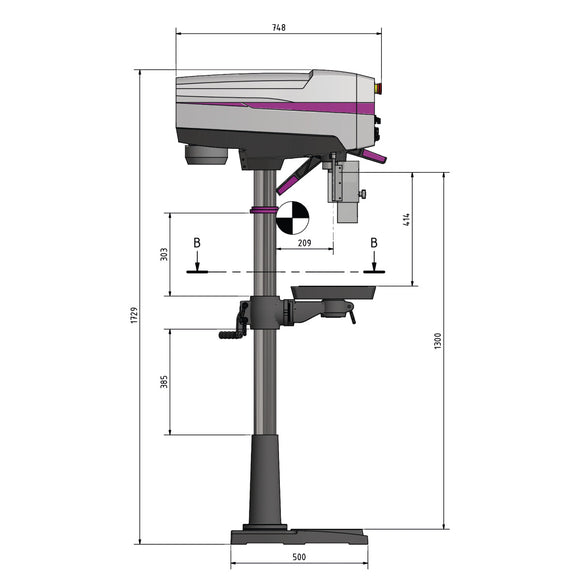

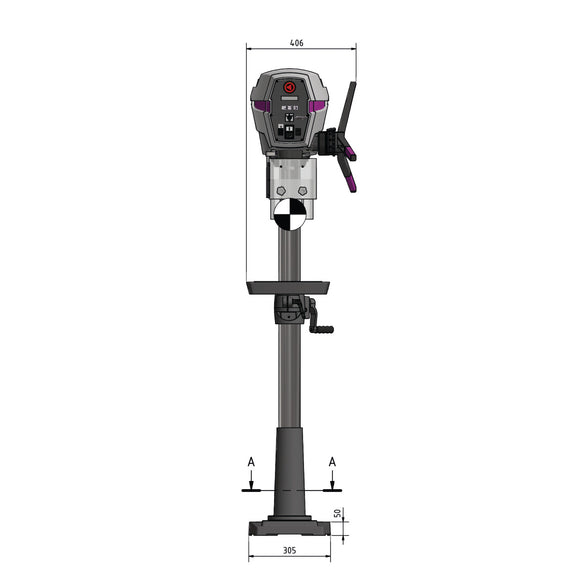

Dimensions and weight

  • Length: 748 mm
  • Width: 406 mm
  • Height: 1724 mm
  • Net weight: 105 kg
  • Quick-release drill chuck 0 - 16 mm
  • T-Nutensteine
  • Outing
  • Adapter MK 3-B16
  • Operating tool

To see the exact shipping price for this product, add it to your cart, then enter your location and other details so the shop can calculate shipping costs to you. You can also pick up your item for free from our Ballymahon store.

  • Dispatch and delivery times

All stock items ordered with Standard Delivery are normally dispatched within 1–2 working days from clearance of payment. Once dispatched, the courier service normally delivers within 2–5 working days.

  • Shipping rates (Ireland & UK)

We have two shipping rates:

  • €10.00 for shipments up to 30 kg, sent via DPD courier service
  • €60.00 for shipments over 30 kg, sent via pallet express

Standard Delivery is by courier service for orders up to 30 kg.

  • Free shipping

Online orders with a value of €100.00 or more are shipped free of charge.

  • Large equipment delivery

We can deliver large equipment directly to you personally, by prior arrangement. To find out the details, please ask our manager.

Backorder items: please contact our manager for the expected delivery time.
