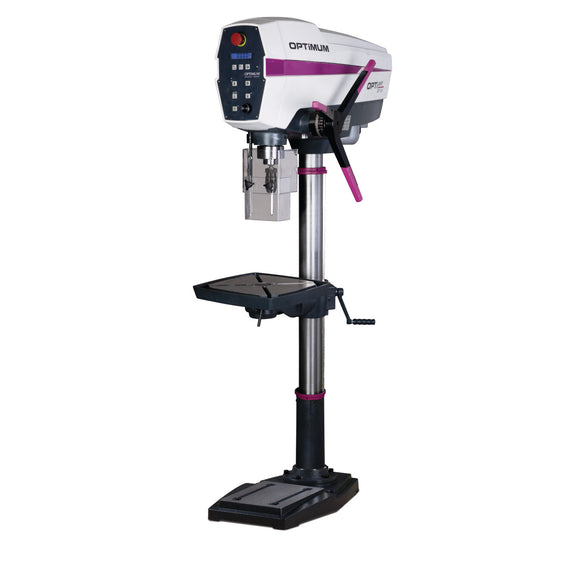

Upright drill OPTIdrill DP 33V Special offer set.

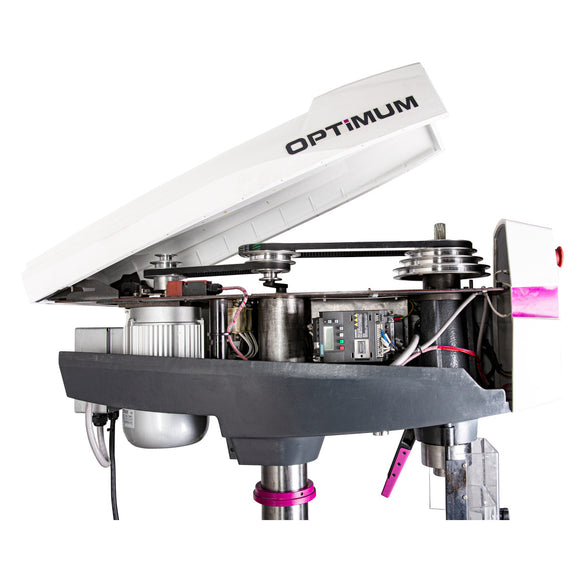

  • Industrial motor
  • Quiet running spindle thanks to new spindle design
  • Machine operation with safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0. 02 mm measured in the drilling spindle
  • Right/left rotation
  • Precision spindle bore

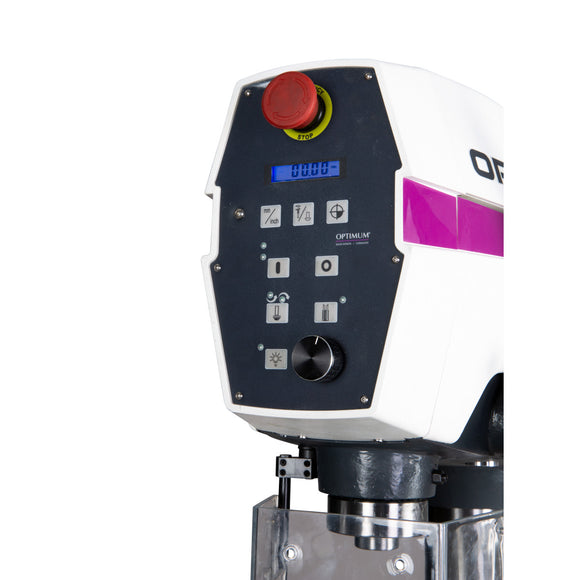

  • Control panel with user-friendly, dirt and water resistant membrane keypad
  • Speed display
  • Separate emergency stop impact switch
  • Thread cutting function

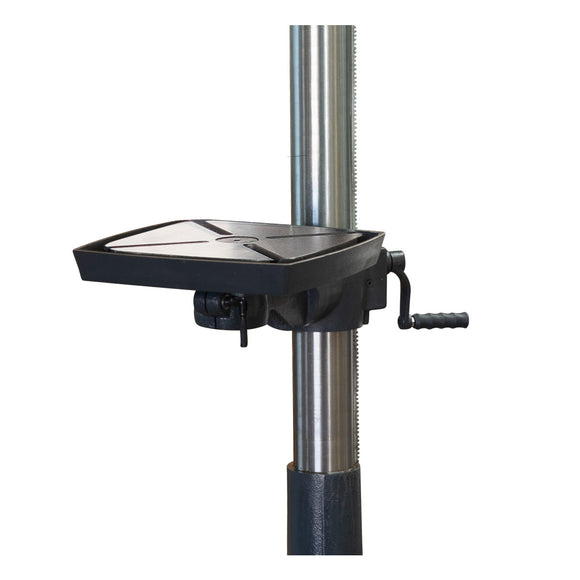

  • Precisely machined, stable drilling table with diagonally running T-slots with circumferential cooling water channel, laterally tiltable by ±45° and 360° rotatable
  • Digital depth gauge
  • LED machine light integrated in drill head

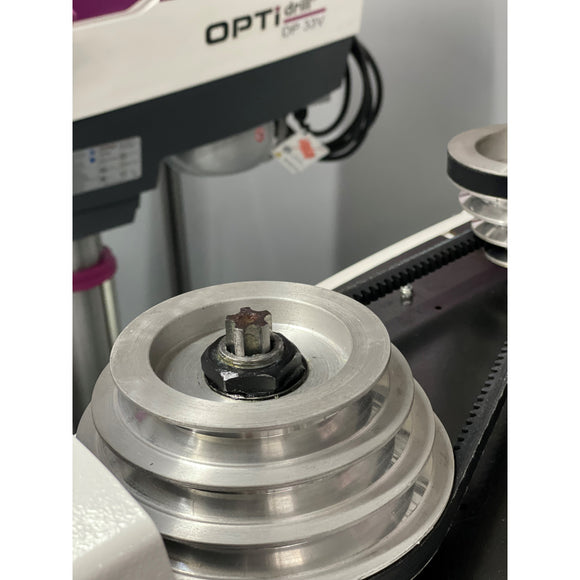

  • V-belt cover with safety switch
  • Thick-walled steel column for high force absorption and stability
  • Solid, large-dimensioned base plate with T-slots
  • Heavy-duty design of the entire machine


.
  • 70 - 2800 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 25 mm
  • Drilling head angle 45 °
  • Drilling head rotation 360 °
  • Drilling performance (steel) 30 mm
  • Drilling table workspace length 387 mm
  • Drilling table workspace width 387 mm
  • Frequency 50 Hz
  • Height 1880 mm
  • Length 945 mm
  • Machine base workspace length 270 mm
  • Machine base workspace width 327 mm
  • Motor power 1.1 kW
  • Net weight 177 kg
  • Number of gears 9 Steps
  • Quill stroke 125 mm
  • Reach 270 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Width 480 mm
  • Quick-action drill chuck 1-16 mm
  • Taper arbor for drill chuck
  • T-nuts
  • Extractor
  • Machine vice BMP 160
