Upright drill OPTIdrill DP 33BV Aktions-Set-1
Upright drill OPTIdrill DP 33BV Aktions-Set-2
Upright drill OPTIdrill DP 33BV Aktions-Set-3
Upright drill OPTIdrill DP 33BV Aktions-Set-4

Upright drill OPTIdrill DP 33BV Aktions-Set

€3.227,52 EUR (€2.624,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3027685SET Barcode: 4036351358947

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

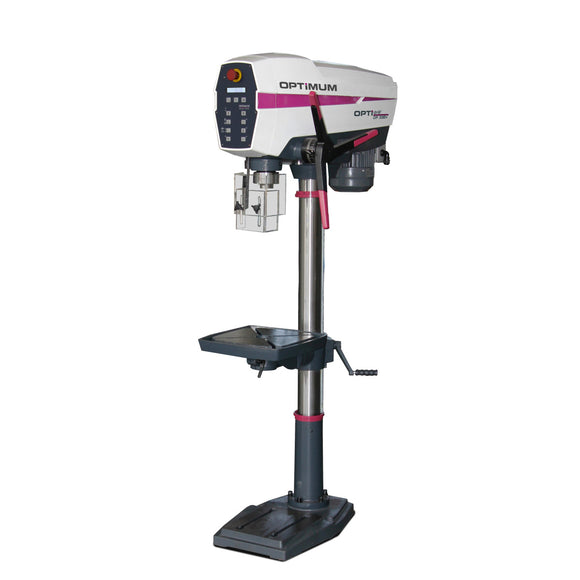

Upright drill OPTIdrill DP 33BV Aktions-Set.
  • Heavy-duty design of the entire machine

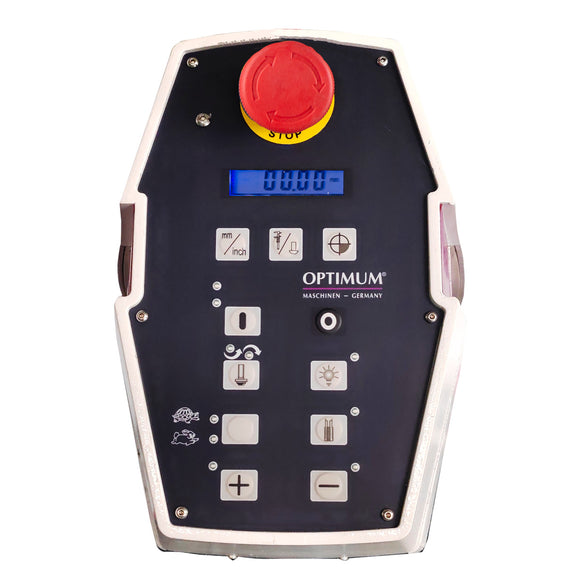

  • Separate emergency stop switch
  • Digital depth gauge
  • Right/left rotation
  • Machine operation with safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0. 02 mm measured in the drilling spindle
  • Particularly smooth running thanks to new spindle design Industrial motor
  • LED machine light integrated in the drill head
  • Precision spindle bore
  • Thick-walled steel column
  • Speed display
  • Solid, large base plate with T-slots
  • Precisely machined, stable drill table

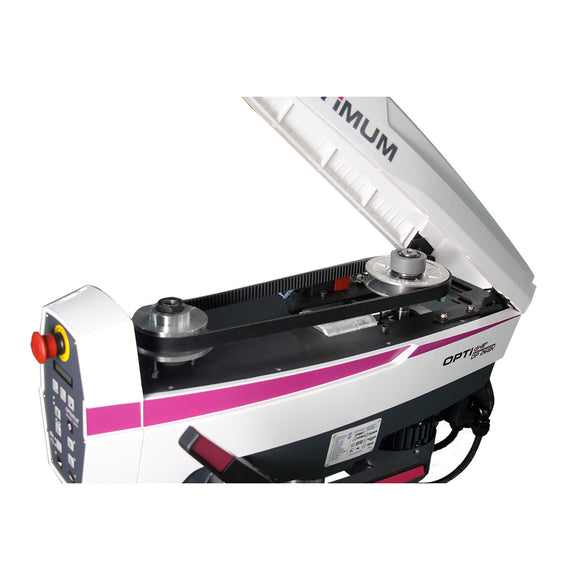

  • V-belt cover with safety switch
  • Tapping function with automatic switchover after reaching the depth


.
  • 420 - 2130 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 25 mm
  • Drilling performance (steel) 30 mm
  • Drilling table angle 45 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 387 mm
  • Drilling table workspace width 387 mm
  • Frequency 50 Hz
  • Height 1880 mm
  • Length 945 mm
  • Machine base workspace length 270 mm
  • Machine base workspace width 327 mm
  • Motor power 0.85 / 1.5 kW
  • Net weight 177 kg
  • Number of gears 9 Steps
  • Quill stroke 125 mm
  • Reach 270 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Width 480 mm
  • Quick-action drill chuck 1-16 mm
  • Taper arbor for drill chuck
  • T-nuts
  • Drift
