Upright drill OPTIdrill DH 28GS-1
Upright drill OPTIdrill DH 28GS-2
Upright drill OPTIdrill DH 28GS-3
Upright drill OPTIdrill DH 28GS-4
Upright drill OPTIdrill DH 28GS-5
Upright drill OPTIdrill DH 28GS-6

Upright drill OPTIdrill DH 28GS

€3.733,05 EUR (€3.035,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034230 Barcode: 4030635018756

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

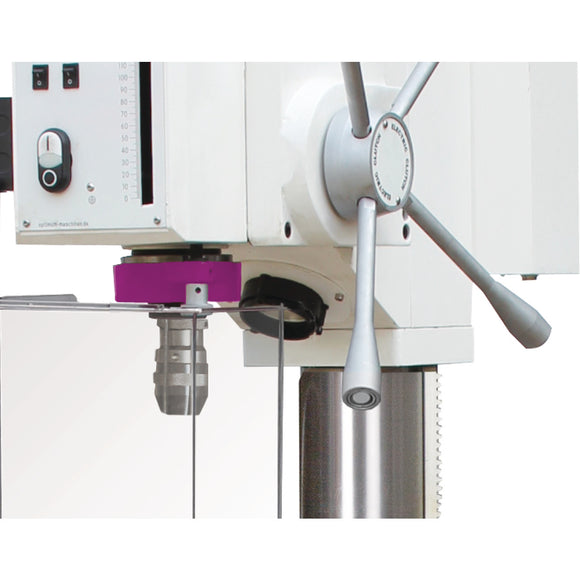

Upright drill OPTIdrill DH 28GS.
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimeter scale
  • Forward / reverse operation
  • Machine light integrated in the drill head
  • Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back


.
  • 75 - 2900 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 23 mm
  • Drilling performance (steel) 26 mm
  • Drilling table load bearing capacity 100 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 376 mm
  • Drilling table workspace width 394 mm
  • Frequency 50 Hz
  • Height 2080 mm
  • Length 640 mm
  • Machine base workspace length 350 mm
  • Machine base workspace width 356 mm
  • Net weight 175 kg
  • Number of gears 8 Steps
  • Quill stroke 127 mm
  • Reach 260 mm
  • Spindle chuck MT 3
  • Spindle motor power 1,1 / 1,5 kW
  • Supply voltage 400 V
  • Width 376 mm
  • Adapter MK3-B16

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
