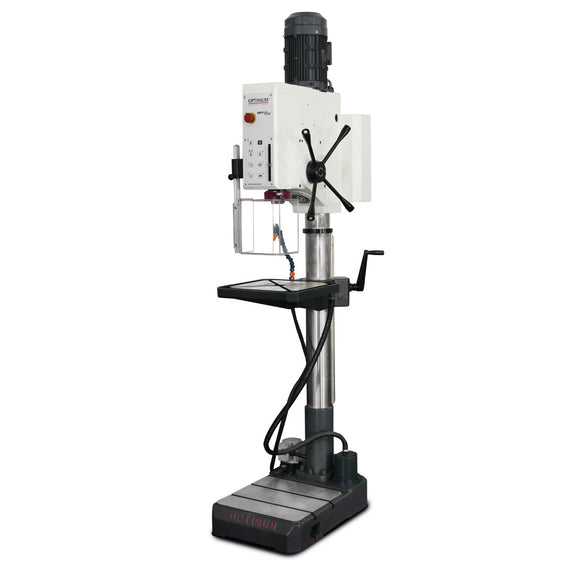

Upright drill OPTIdrill DH 32GS.
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimeter scale
  • Forward / reverse operation
  • Machine light integrated in the drill head
  • Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back
OPTIdrill DH 32GS
  • Tapping function
  • Automatic quill feed
  • Coolant device and chip filter according to Machinery Directive
  • Optional foot switch for switching between right-left rotation and thread cutting (article no. ) available


.
  • 75 - 2000 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 26 mm
  • Coolant pump drive motor output 40 W
  • Drilling performance (steel) 30 mm
  • Drilling table load bearing capacity 120 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 400 mm
  • Drilling table workspace width 420 mm
  • Frequency 50 Hz
  • Height 2200 mm
  • Length 725 mm
  • Machine base workspace length 450 mm
  • Machine base workspace width 395 mm
  • Net weight 312 kg
  • Number of gears 8 Steps
  • Quill feed speed 0.05 / 0.1 mm/rev
  • Quill stroke 125 mm
  • Reach 285 mm
  • Spindle chuck MT 4
  • Spindle motor power 1,5 / 2,2 kW
  • Supply voltage 400 V
  • Thread tapping (steel) M 16 x 2 mm
  • Width 450 mm
  • Adapter MK4-B16
